Set the devicenet node address and data rate – Rockwell Automation 1788-EN2DNR EtherNet/IP to DeviceNet Linking Device User Manual User Manual
Page 20

20
Rockwell Automation Publication 1788-UM059A-EN-P - August 2014
Chapter 3
Configure the Linking Device
Set the DeviceNet Node Address and Data Rate
Note that, to be able to set the node address and the data rate from RSNetWorx
software, the rotary switches must be set to any value other than 0 - 63.

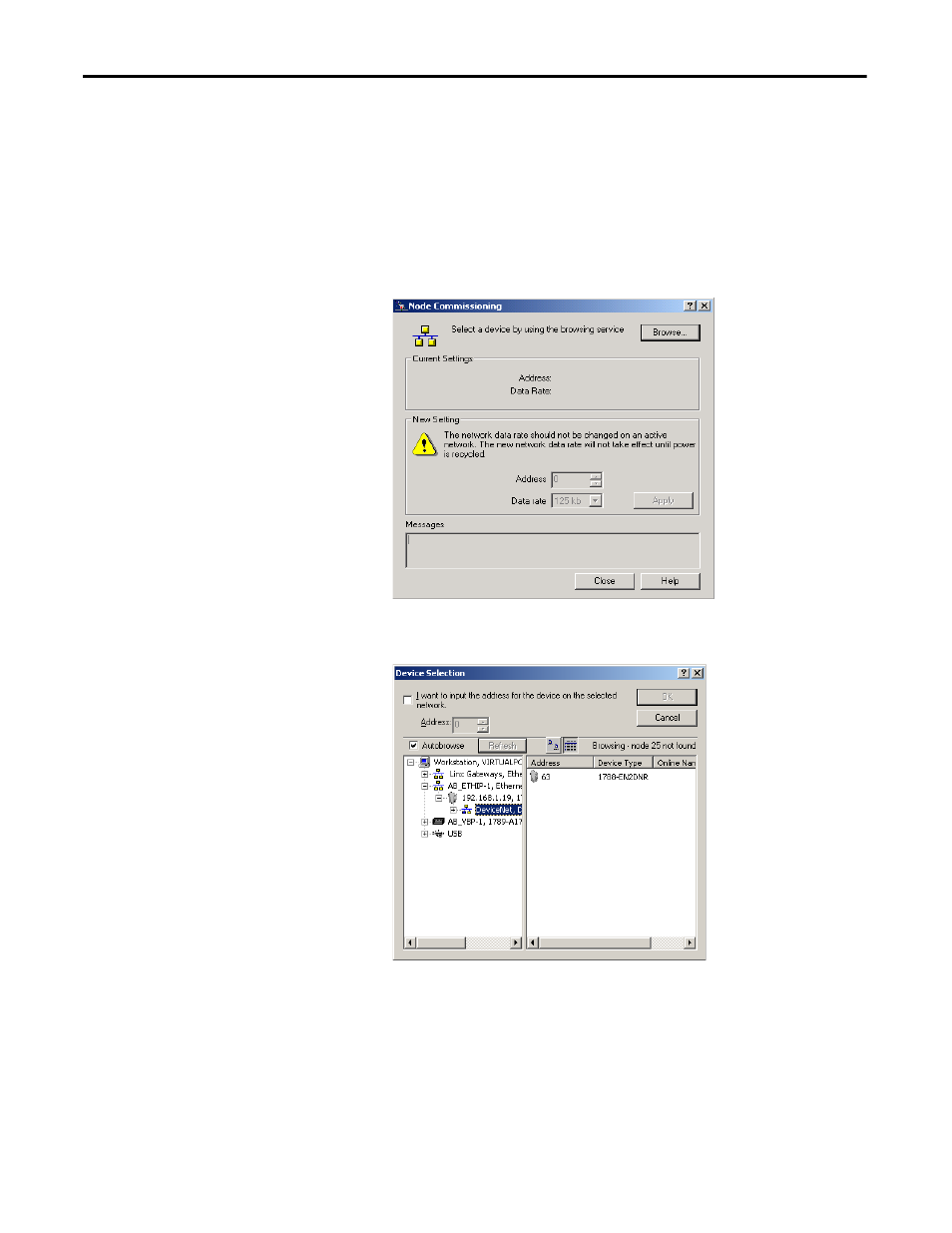

1. In RSNetWorx for DeviceNet software, choose Tools > Node
Commissioning.
The Node Commissioning dialog box appears.
2. On the Node Commissioning dialog box, click Browse.
The Device Selection dialog box appears.
3. In the left pane, click the + next to the RSLinx driver for the
1788-EN2DNR linking device.
