MicroLogix 1200 Isolated Relay Output Module 3
Publication 1762-IN017C-EN-P - May 2013
Description
Overview
1762 I/O is suitable for use in an industrial environment when installed in accordance with
these instructions. Specifically, this equipment is intended for use in clean, dry environments
(Pollution degree 2
(1)
) and to circuits not exceeding Over Voltage Category II
(2)
(IEC
60664-1).
(3)

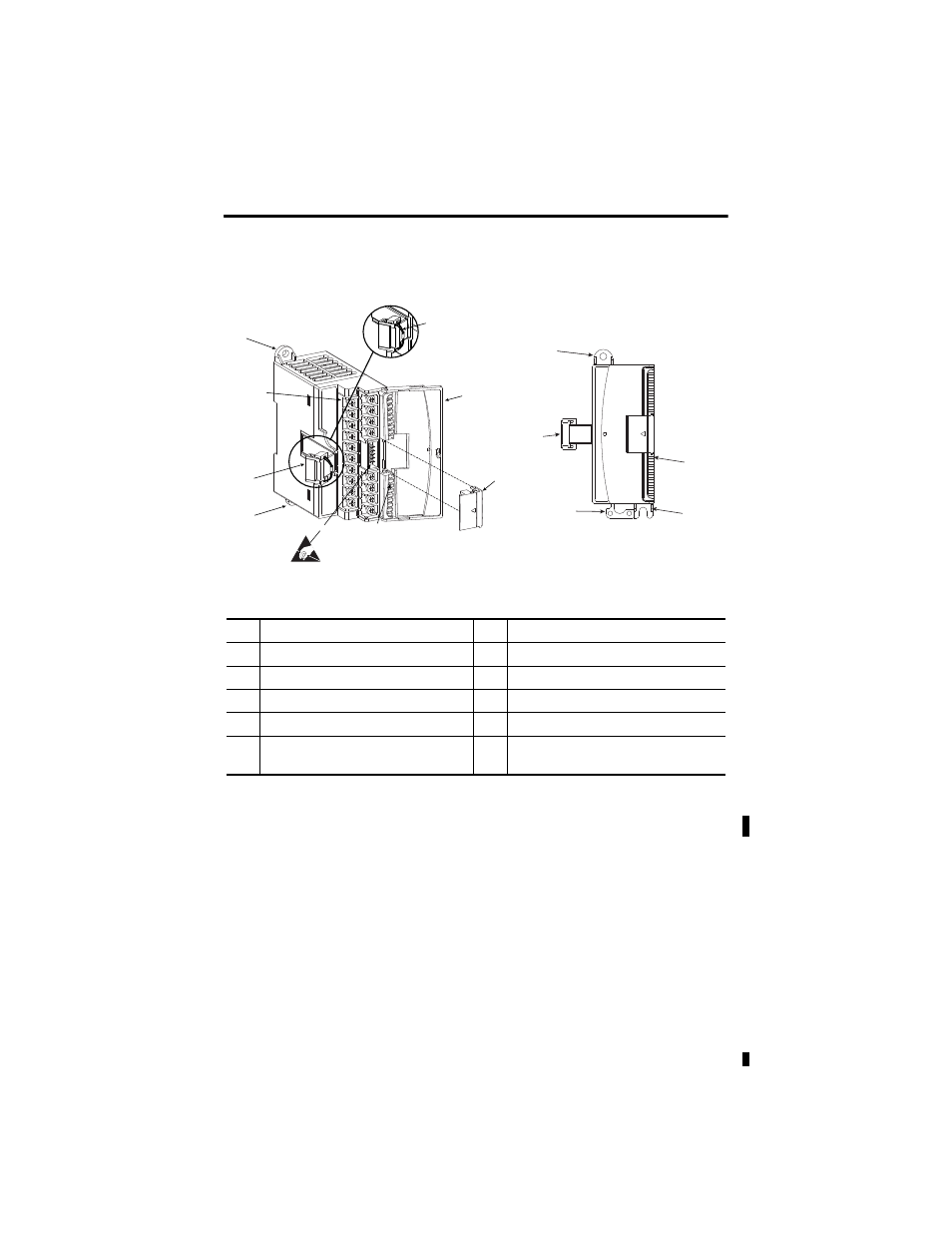

Item Description Item Description
1a upper panel mounting tab 5 bus connector cover
1b lower panel mounting tab 6 flat ribbon cable with bus connector (female)
2 power diagnostic LED 7 terminal block
3 module door with terminal identification label 8 DIN rail latch
4 bus connector
with male pins 9 pull loop
(1) Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that occasionally a
temporary conductivity caused by condensation shall be expected.
(2) Over Voltage Category II is the load level section of the electrical distribution system. At this level transient voltages are
controlled and do not exceed the impulse voltage capability of the product’s insulation.
(3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC) designations.
9
3
5
2
1b
1a
7
6
4
8
6
1a
1b
2
