14 MicroLogix 1200 Isolated Relay Output Module

Publication 1762-IN017C-EN-P - May 2013

Module Load Ratings

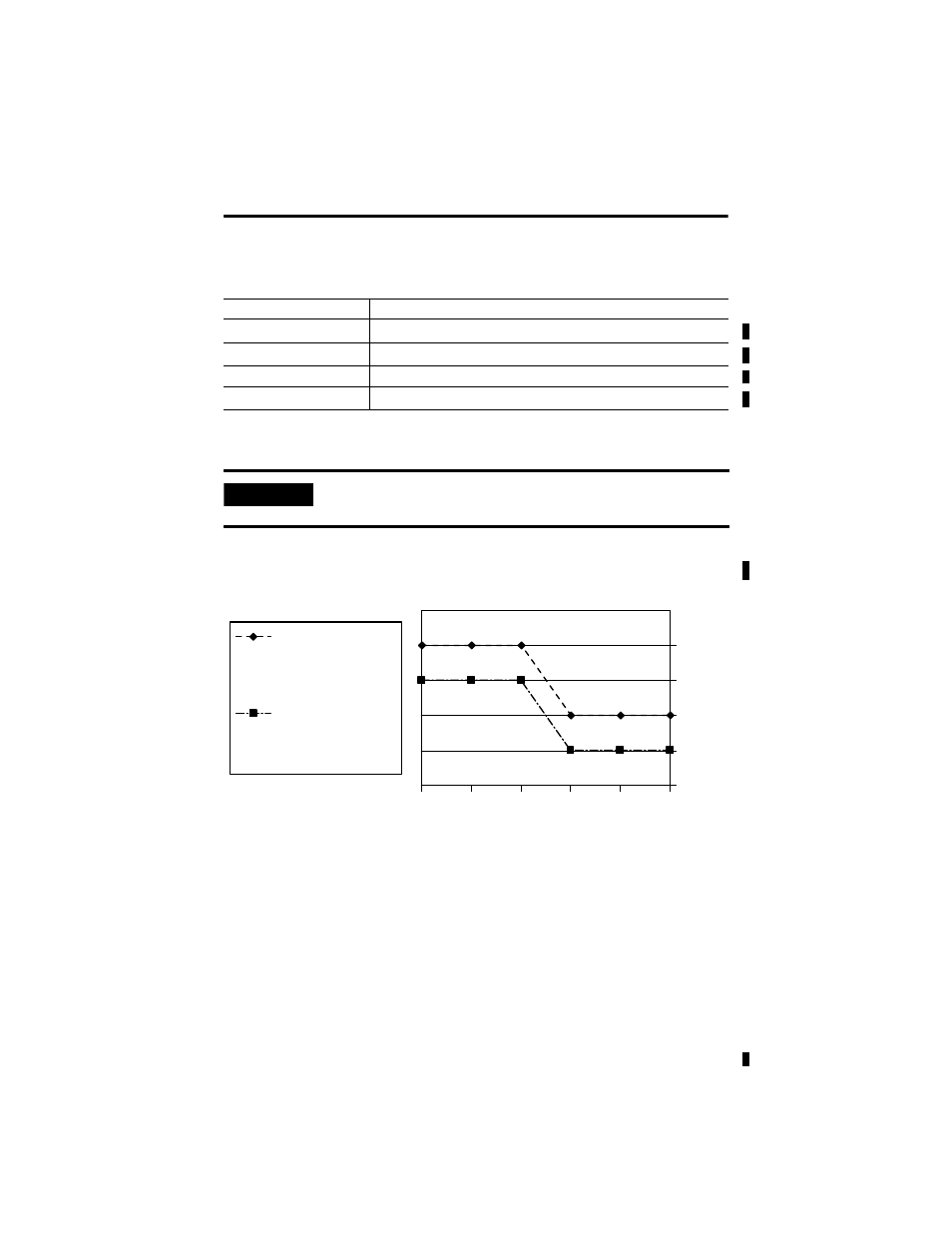

Relays Used vs. Maximum Current per Relay (24V DC)

Volts (max.)

Controlled Load (Current) per Module (max.)

240V AC

12 A

(1)

120V AC

12 A

(1)

(1)

Current per relay limited to 6A at ambient temperatures above 40°C.

125V DC

2.4 A

24V DC

30 A

(2)

(2)

24A in ambient temperatures above 40°C. Limited by ambient temperature and the number of relays controlling loads. See
below.

IMPORTANT

Controller must be operated within Relay Contact Ratings
(page 13) and Module Load Ratings (above).

1

2

3

3

4

5

6

7

8

4

5

6

Number of Relays Controlling Loads

Max

imum Cur

rent

per

Re

lay (A

mps)

Ambient Temperature
below 40°C

Ambient Temperature
above 40°C
