6 ProcessLogix Pulse Input Module
Publication 1757-IN900A-US-P - February 2000

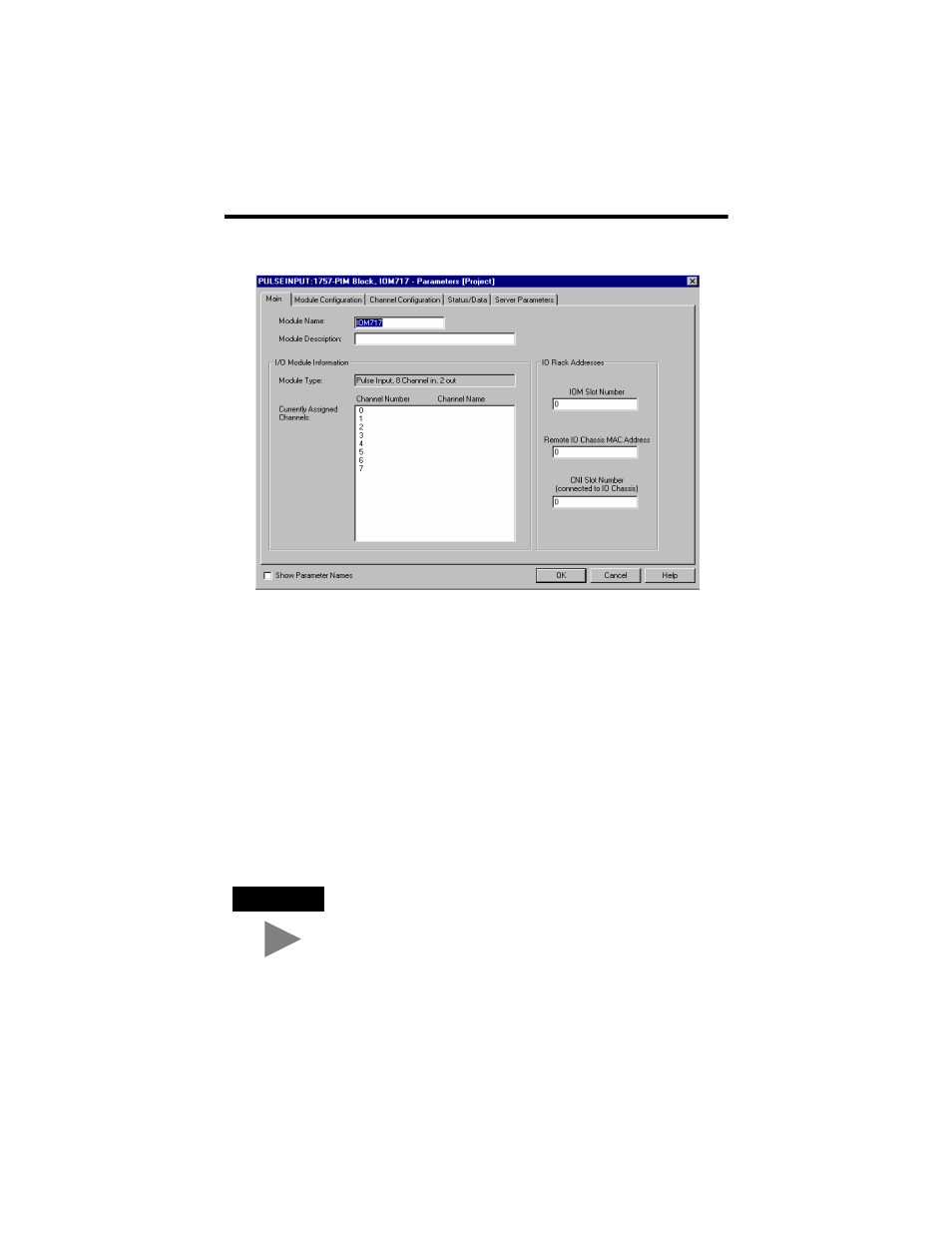

If desired, enter a Module Description to explain the function of the
1757-PIM (such as Test Strategy PIM). This is not a required field.
Enter appropriate values for IOM Slot Number, Remote IO Chassis MAC
Address and CNI Slot Number. If necessary, press F1 to access on-line help
for assistance during this step.
Use the following procedures to configure parameters on the remaining tabs
for the 1757-PIM, or click OK to accept only the changes made so far and
return to the Project tree.
Under the Module Configuration tab (see figure below), enter desired values
for configuration parameters. If necessary, press F1 to access on-line help for
assistance during this step.
TIP
The only available choice is whether or not to select the
Alarming Enabled checkbox. Once the module has been
loaded and activated, additional parameters (such as Execution
State) may be configured on the Monitoring Tree window.
