Rockwell Automation 1757-PIM ProcessLogix Pulse Input Module Installation User Manual
Page 5
ProcessLogix Pulse Input Module 5
Publication 1757-IN900A-US-P - February 2000
Access Control Builder.
Add a new 1757-PIM from the library.
a. Open the Library and Project tree views.
b. In the Library tree view, click on the 1757-PIM icon and drag it to the
Project tree window.

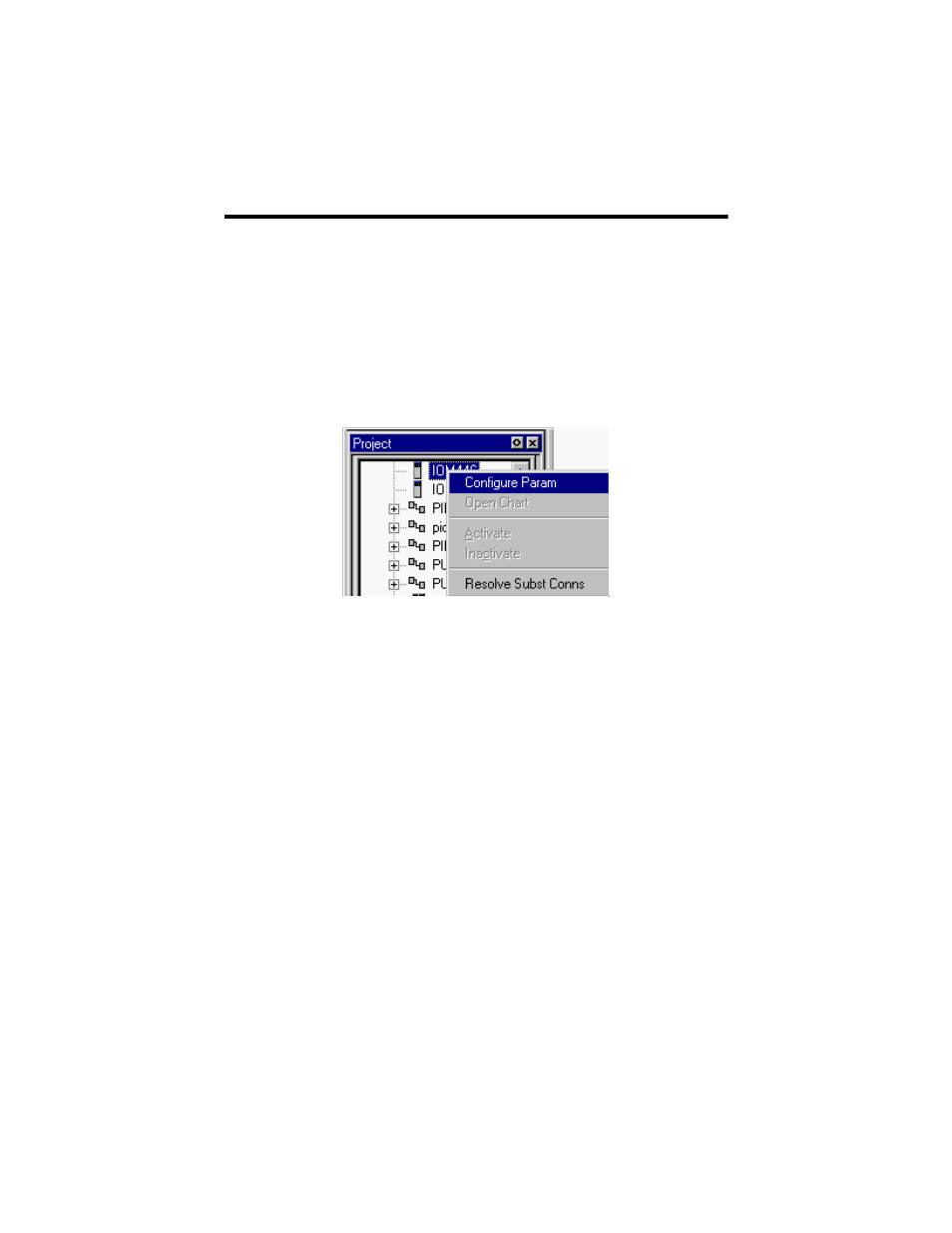

Right-click on the desired IOM instance on the Project tree window.
Click on Configure Param. You see the Main, Module Configuration, Channel
Configuration, Status/Data and Server Parameters configuration tabs.
Under the Main tab (see figure below), enter a Module Name that is more
meaningful to you than its default IOMxxx (xxx represents a pre-assigned
number).
