8 ControlLogix™ Memory Board
Publication 1756-IN033B-EN-P - November 2000
Step 4: Remove the Existing Memory Board (If Any)
Does the controller already have a memory board?
If: Then:
No Go to Step 5: Install the Memory Board
Yes Remove the existing memory board:

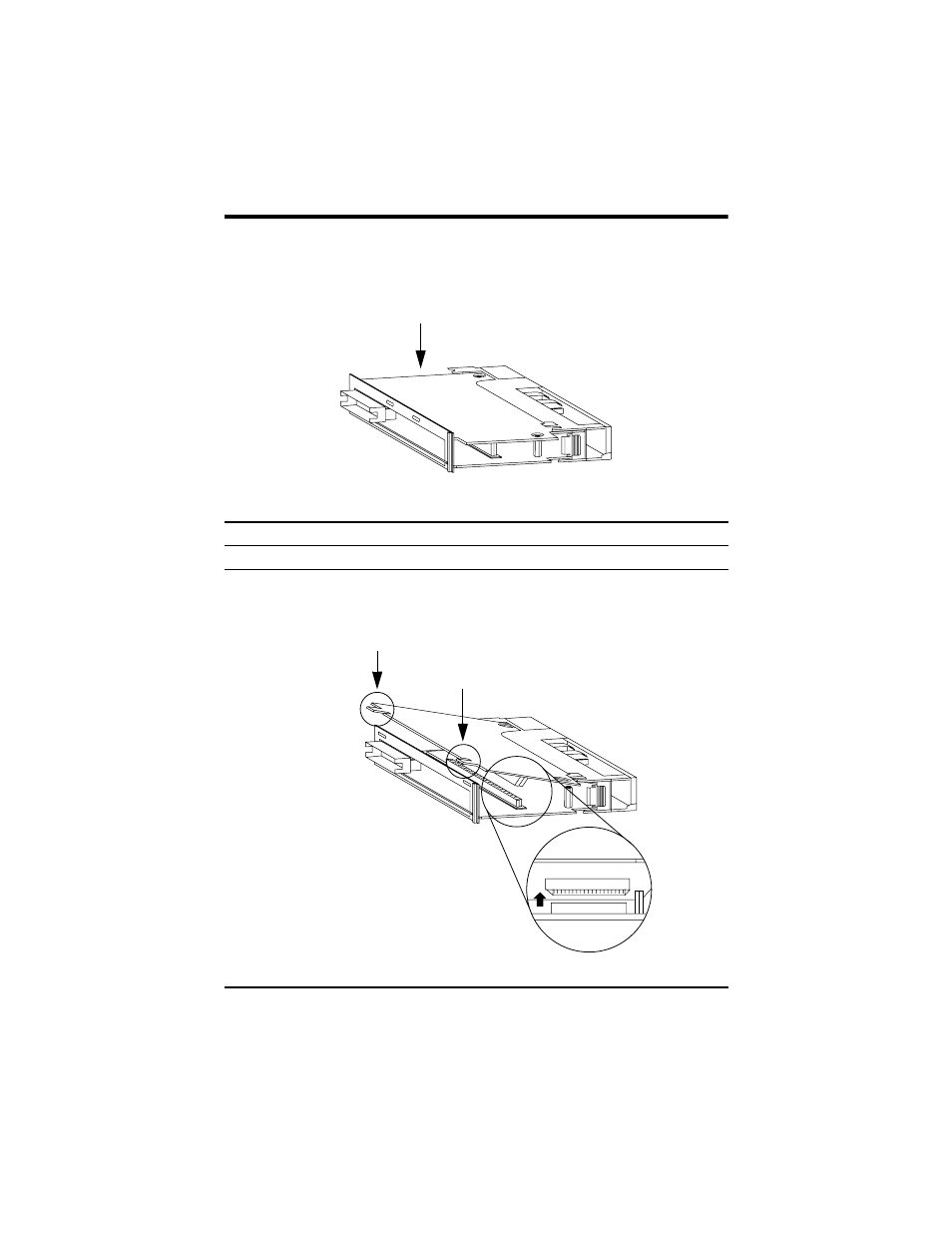

1. Pull the plastic back edge of the controller out slightly to clear the tabs on the
memory board.
2. Gently separate and remove the memory board from the controller.
42527
memory board
42526
tab
tab
