Step 3: remove the side plate of the controller – Rockwell Automation 1756-Mx ControlLogix Memory Board Installation Instructions User Manual
Page 7
ControlLogix™ Memory Board 7
Publication 1756-IN033B-EN-P - November 2000

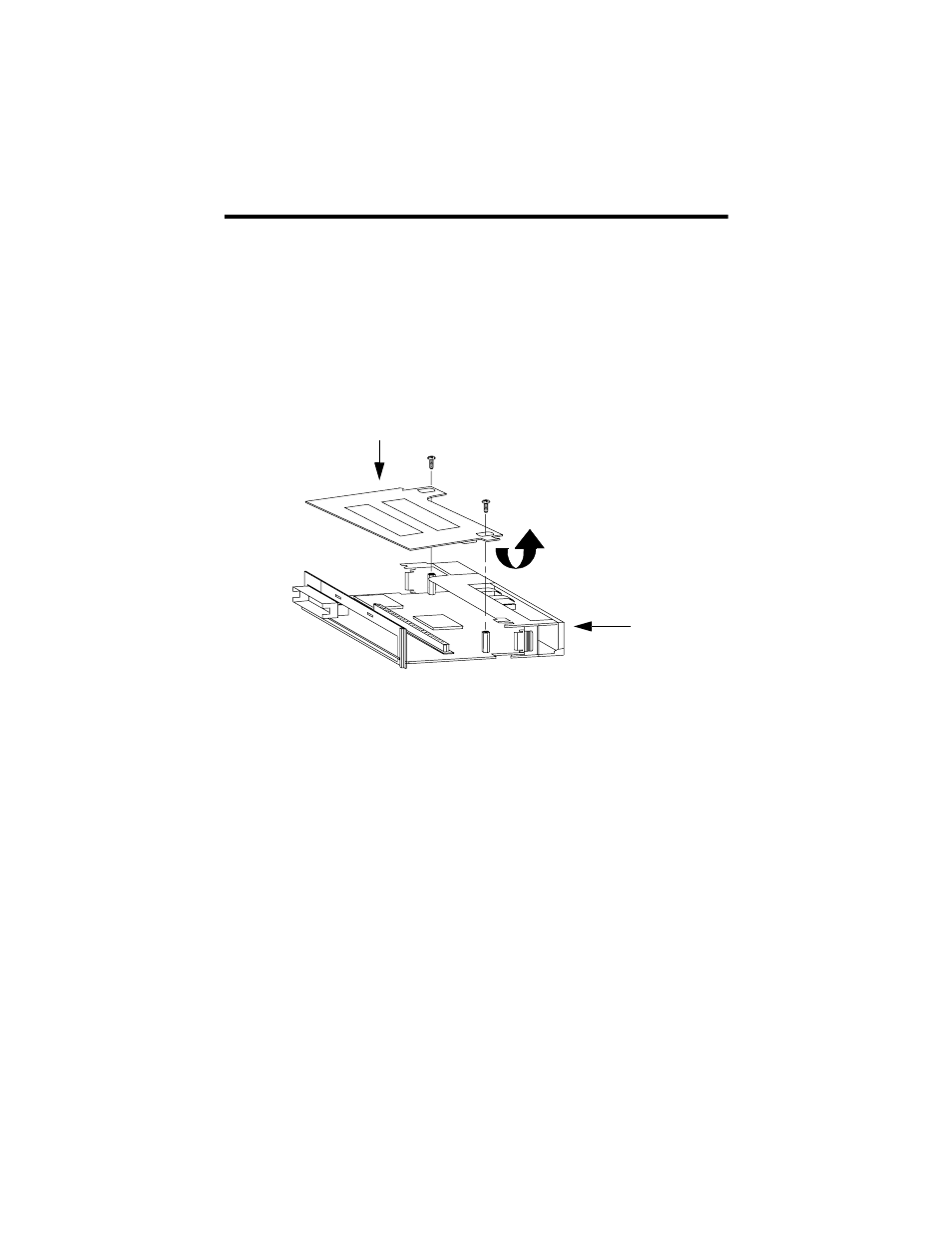

Step 3: Remove the Side Plate of the Controller
A. Lay the controller on its side with the label facing up.
B. While wearing a grounding wriststrap, remove the two screws that attach the
side plate to the controller.
C. Rotate the side plate up and unhook it from the controller.
front of controller
40017
side plate
