Installing Block I/O
Chapter 2
2-3

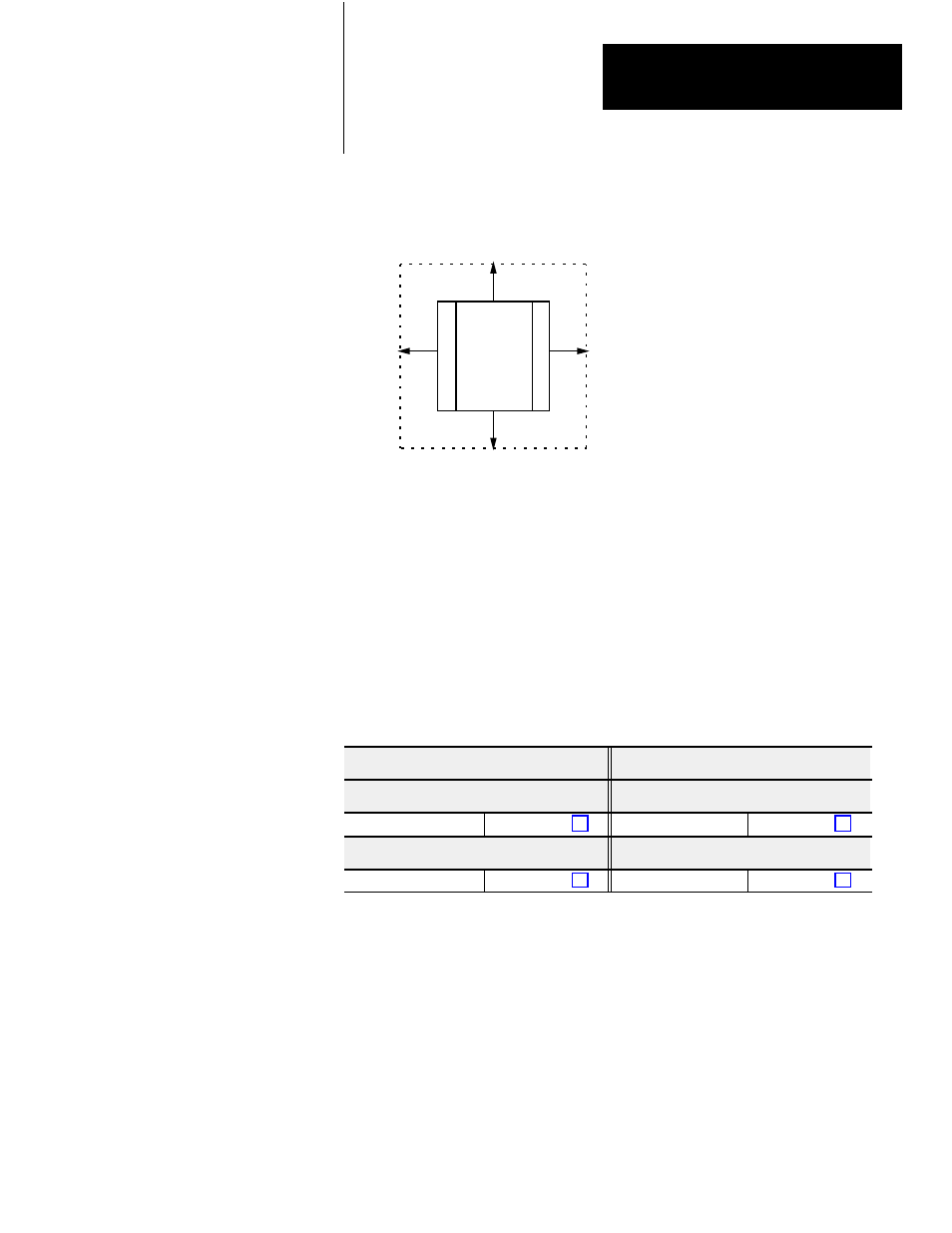

Figure 2.2
Clearance Required for Block I/O Modules
2
(50.8)
Inches
(Millimeters)
2
(50.8)
2
(50.8)
2
(50.8)
10919ĆI
Connections to the block I/O module are made to the removable terminal
blocks on each side of the module. Input connections are on the left side,
and output connections are on the right side. The input terminal block is
keyed differently from the output terminal block to prevent incorrect
insertion.
Wiring connections for the 1791-IOBW and -IOVW are shown in Tables
2.A through 2.D.
Catalog Number 1794ĆIOBW Catalog Number 1794ĆIOVW
Input Terminal Wiring Input Terminal Wiring
Groups 0 and 1 (TRM1) Table 2.A, page 2Ć4 Groups 0 and 1 (TRM1) Table 2.C, page 2Ć6
Output Terminal Wiring Output Terminal Wiring
Groups 0 and 1 (TRM3) Table 2.B, page 2Ć5 Groups 0 and 1 (TRM3) Table 2.D, page 2Ć7
Remote I/O link wiring connections are shown in Figure 2.3.
Connecting Wiring
