6 SLC™ 500 4-Channel Analog I/O Modules
Publication 1746-IN008C-EN-P - May 2004

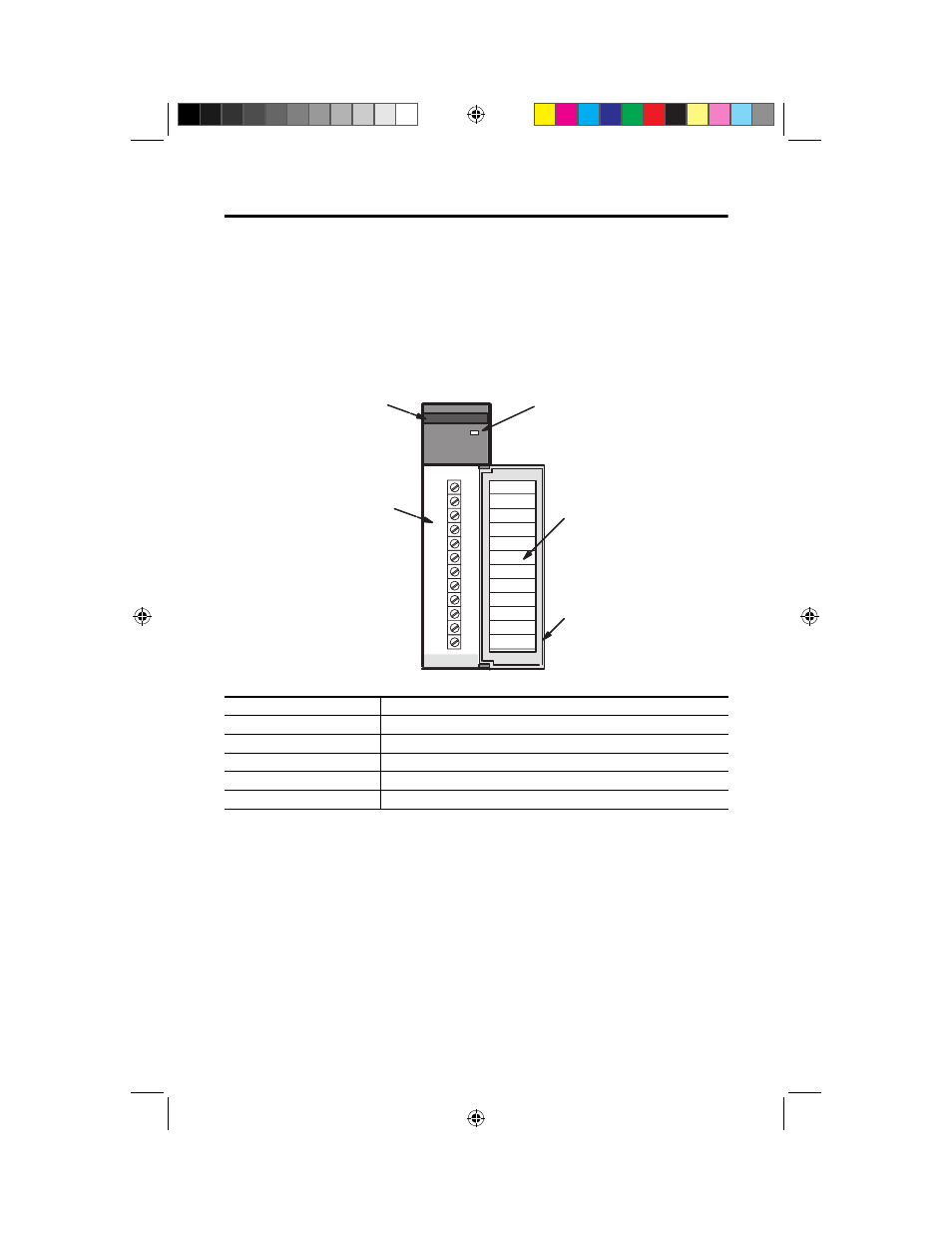

Analog Module Hardware Features
The module contains a removable terminal block providing connection for the
analog input and/or output channels, which is specifically designed to interface
with analog current and voltage input signals. The channels can be wired as either
single-ended or differential inputs. There are DIP switches on the circuit board for
selecting voltage or current input.
Hardware Feature Function
Function Label Indicates input, output, or both.
Power Status LED Indicates when backplane power is applied to the module.
Removable Terminal Block Provides physical connection to input devices.
Door Label Permits easy terminal identification.
Door Protects terminal connections and label.
(5) ANL COM
(6) NOT USED
(7) OUT 0
(8) ANL COM
(9) NOT USED
(10) OUT 1
(11)ANL COM
ANALOG
POWER
OUTPUT INPUT
(4) IN 1±
(3) IN 1+
(2) ANL COM
(1) IN 0±
(1) IN 0+
Power Status LED
Door Label
Door
Removable Terminal Block
Function Label
