Installing Block I/O
Chapter 2
2Ć8

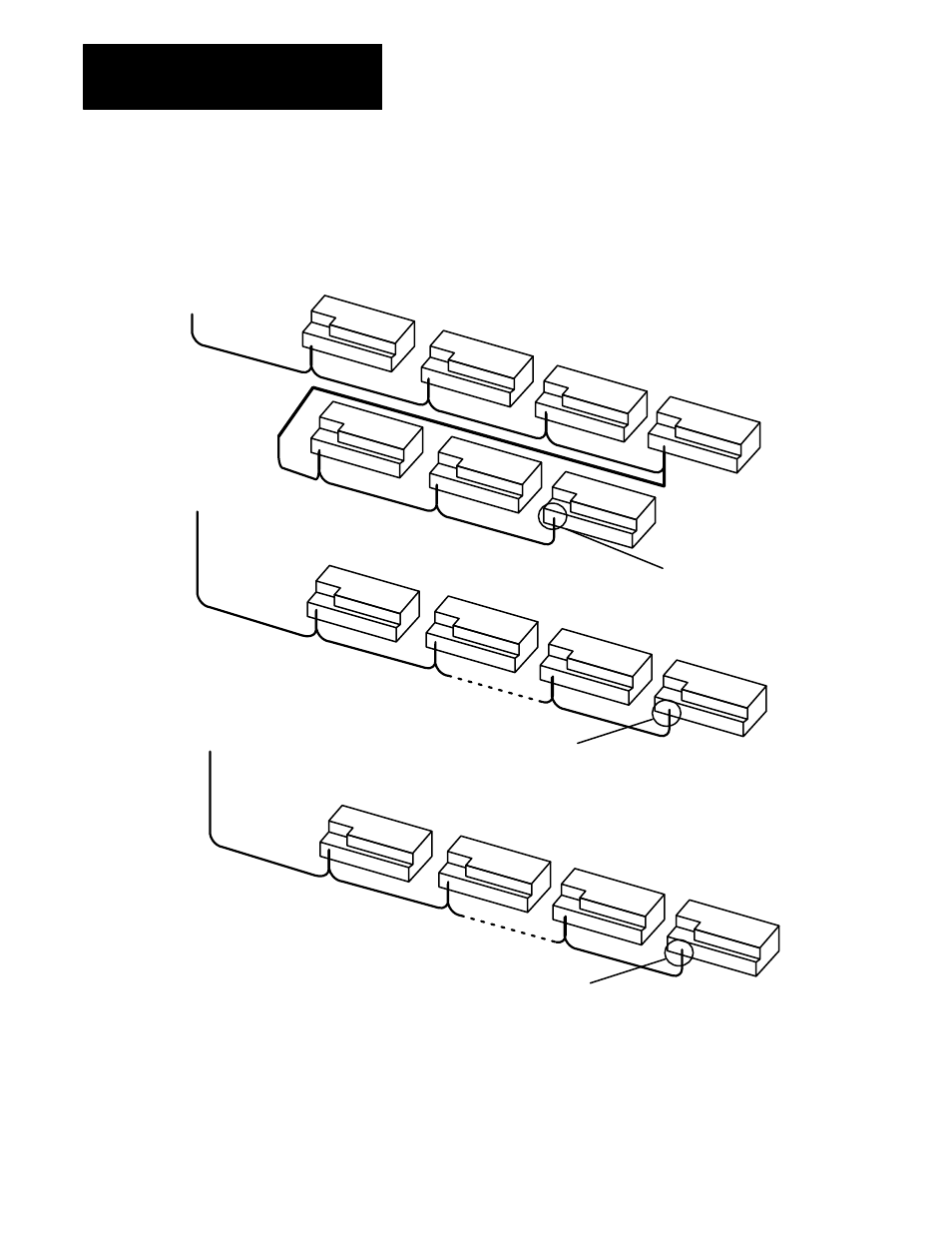

Figure 2.7
Series Configurations for Block I/O Using the SLC Programmable
Controller
To 1747-DSN
Scanner Module
Up to 7 blocks
using SLC-5/01
Processor
Up to 30 blocks with
SLC-5/02
Install terminating resistor
on last block.
Install terminating resistor
on last block.
To 1747-DSN
Scanner Module
1
2
29
30
10834-I
Install terminating resistor
on last block.
To 1747-SN
Scanner Module
1
2
15
16
Up to 16 blocks with
SLC-5/02
