Installing Block I/O
Chapter 2
2Ć6
Wiring Requirements
Table 2.C shows the wiring cable requirements for the 1791–IOBA/B and
1791–IOBB/B modules.
Table 2.C
Acceptable Wiring Cables for Block I/O Connection
Use Cable Type With
Remote I/O Link or DIO Link Belden 9463
PLC-2, PLC-3, PLC-5 family programmable
controllers and SLC controllers
DH-485 Data Link Belden 9842 SLC controllers only
Input and Output wiring
Up to 14AWG
Stranded with 3/64
inch insulation
All

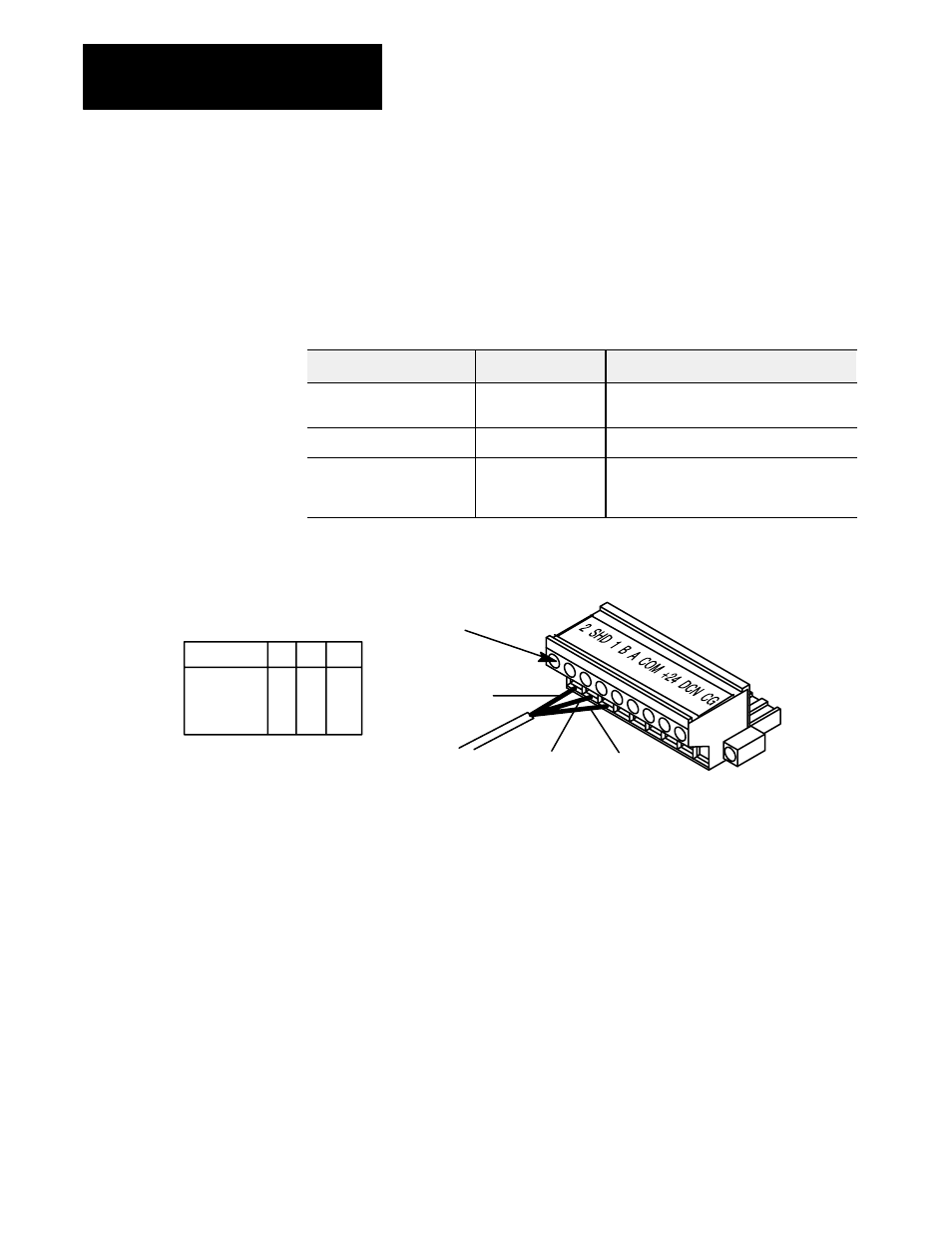

Figure 2.5
Remote I/O Link Wiring
Tighten screw to clamp wire.
Blue
Clear
Shield
Connection 1 2 SHD
Clear wire X
Blue wire X
Shield wire X
10832-I
