Rockwell Automation 1756-ENET/B ControlLogix Ethernet Communication Interface Module User Manual User Manual
Page 41
Publication 1756-UM051B-EN-P - November 2000
Configuring the Ethernet Module 4-3
The following example uses the Data Highway Plus driver. You can
perform the same steps using one of the other drivers.

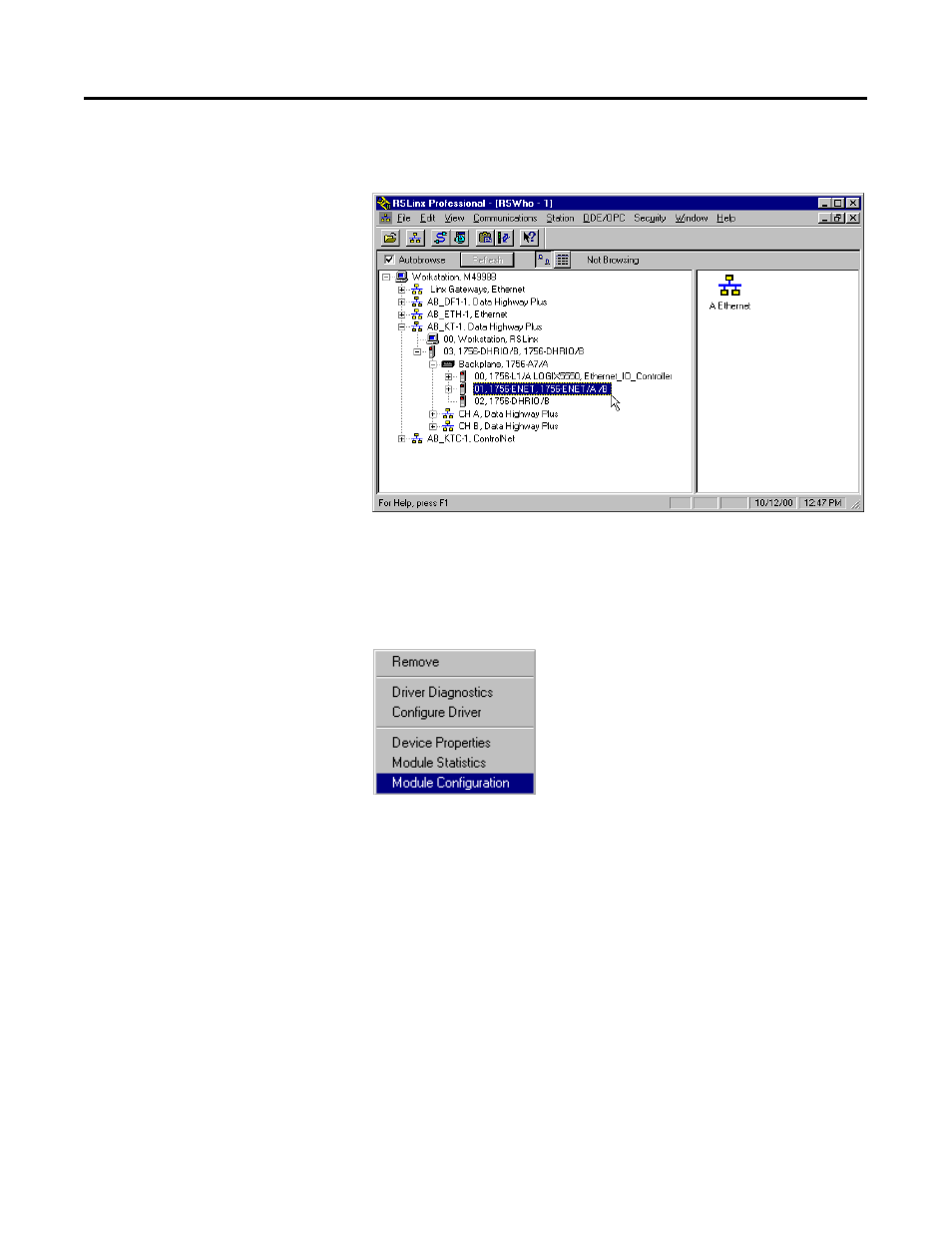

4. Expand the driver tree through the backplane of the chassis
containing the 1756-ENET/B module.
5. Right click on the module. The following pop-up menu will
appear.
6. Select Module Configuration.
