10 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Thermocouple and RTD Input Modules
Publication 1732E-IN005B-EN-E - September 2012
Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we recommend
you use a flat and a lock washer to mount the module. Mount the flat and the lock washer
as shown in the mounting illustration. Torque the mounting screws to 0.68 Nm (6 lb-in.).

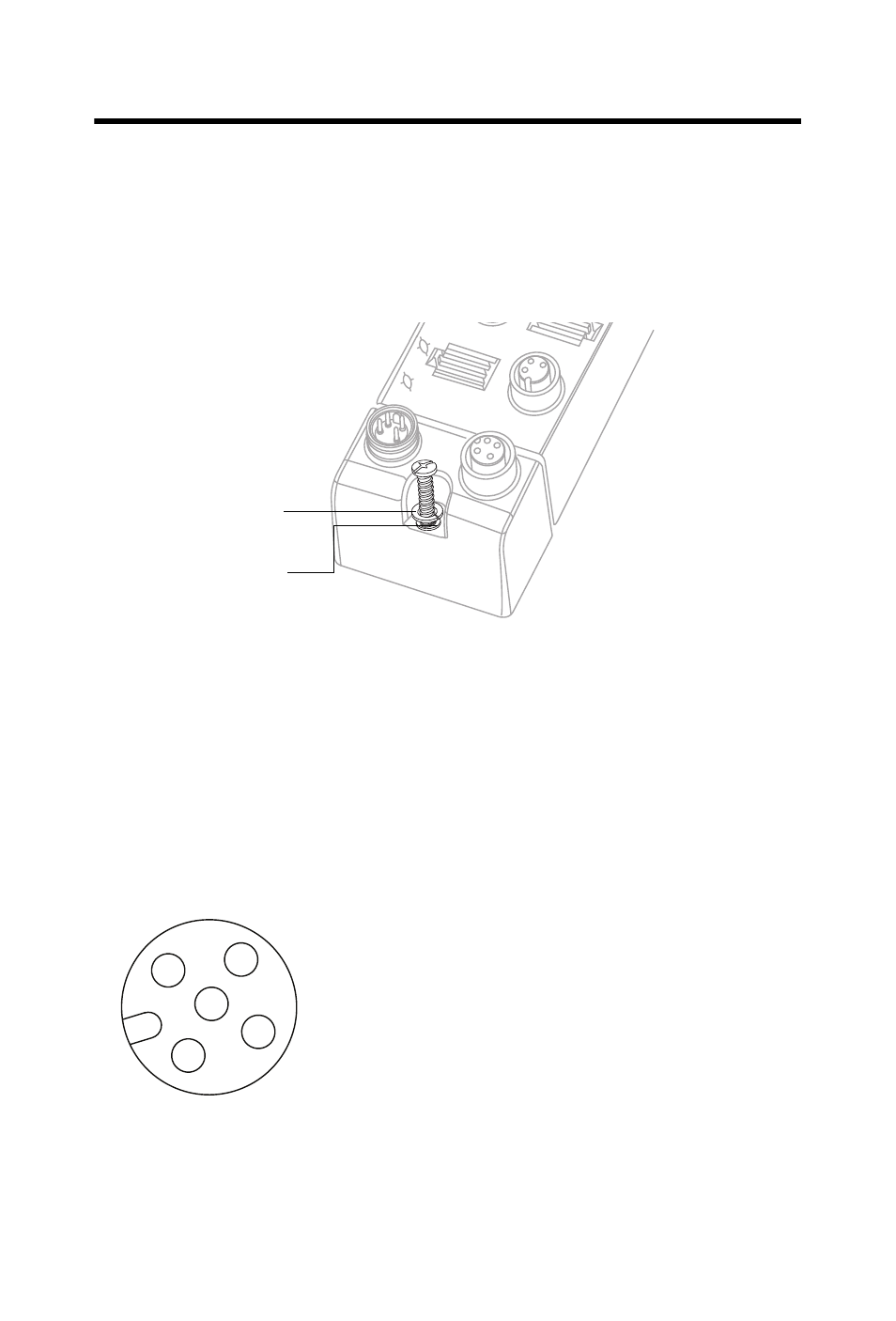

High Vibration Area Mounting
Connect the I/O, Network and Auxiliary Cables to the Module
The 1732E-IT4IM12R and 1732E-IR4IM12R modules have 5-pin micro-style M12 I/O
connectors. We provide caps to cover the unused connectors on your module. Connect the
quick-disconnect cord sets you selected for your module to the appropriate ports.
I/O Connectors
Micro-style M12 5-Pin Input Female Connector – 1732E-IT4IM12R
45768
Lock washer
Flat washer
3
4
1
2
5
45868
(View into connector)

Pin 1 CJC +

Pin 2 TC +

Pin 3 CJC -

Pin 4 TC -

Pin 5 No Connect
