12 MicroLogix 1762-IF2OF2 Analog Input/Output Module
Publication 1762-IN005C-EN-P - July 2013
Input Type Selection
Select the input type, current or voltage, using the switch located on the module’s circuit board
and the input type/range selection bits in the Configuration Data File (see
Configuration Data
File on page 19 ). You can access the switch through the ventilation slots on the top of the
module. Switch 1 controls channel 0; switch 2 controls channel 1. The factory default setting for
both switch 1 and switch 2 is Current. Switch positions are shown below.
Output Type Selection
The output type selection, current or voltage, is made by wiring to the appropriate terminals,
Iout or Vout,
and by the type/range selection bits in the Configuration Data File
(see Configuration Data File on page 19 ).

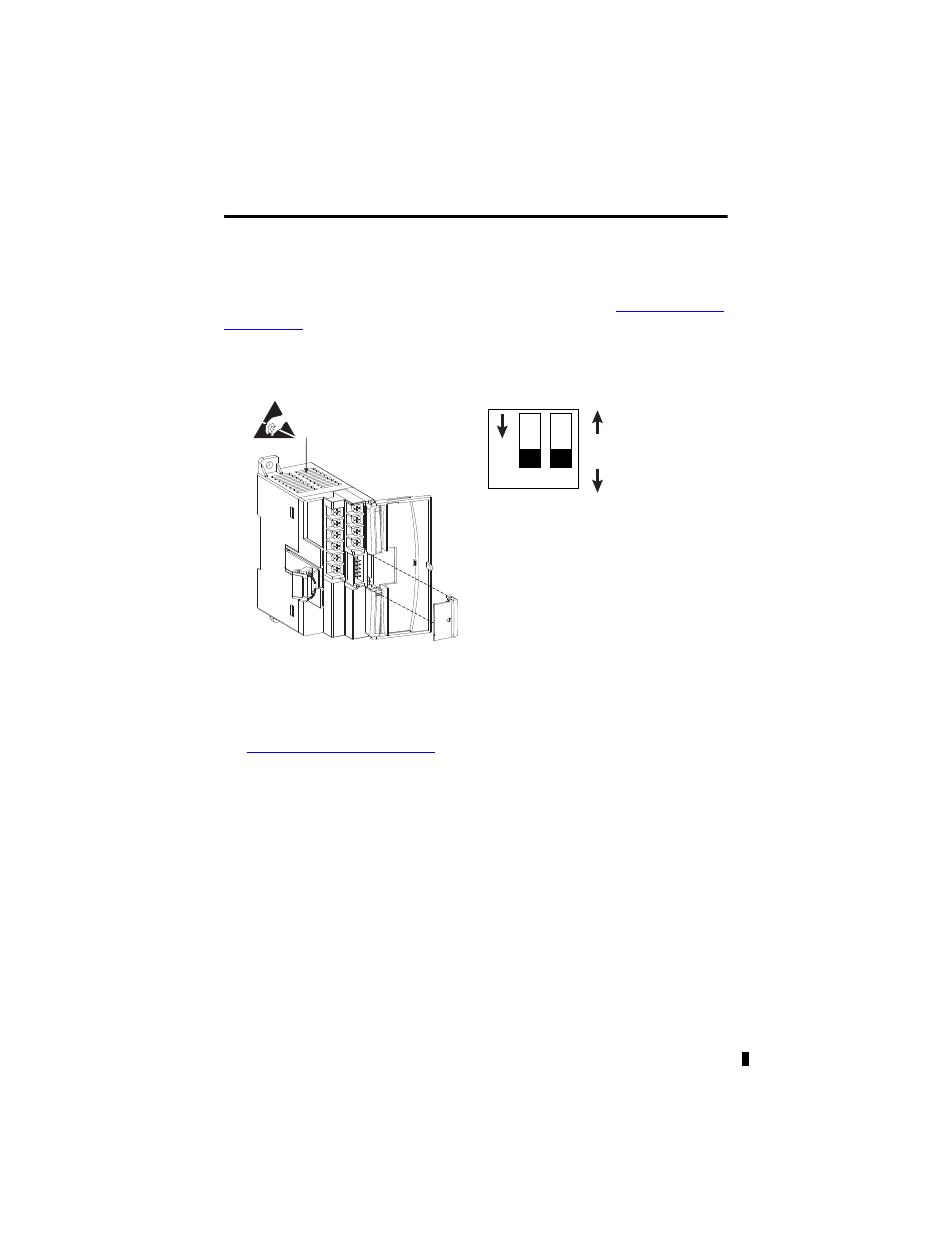

1
ON
2
Current (ON) Default
Voltage (OFF)
Switch 1 = Channel 0
Switch 2 = Channel 1
Switch Location
45162
