50 Powermonitor 3000 Master Module
Publication 1404-IN007F-EN-P - November 2009

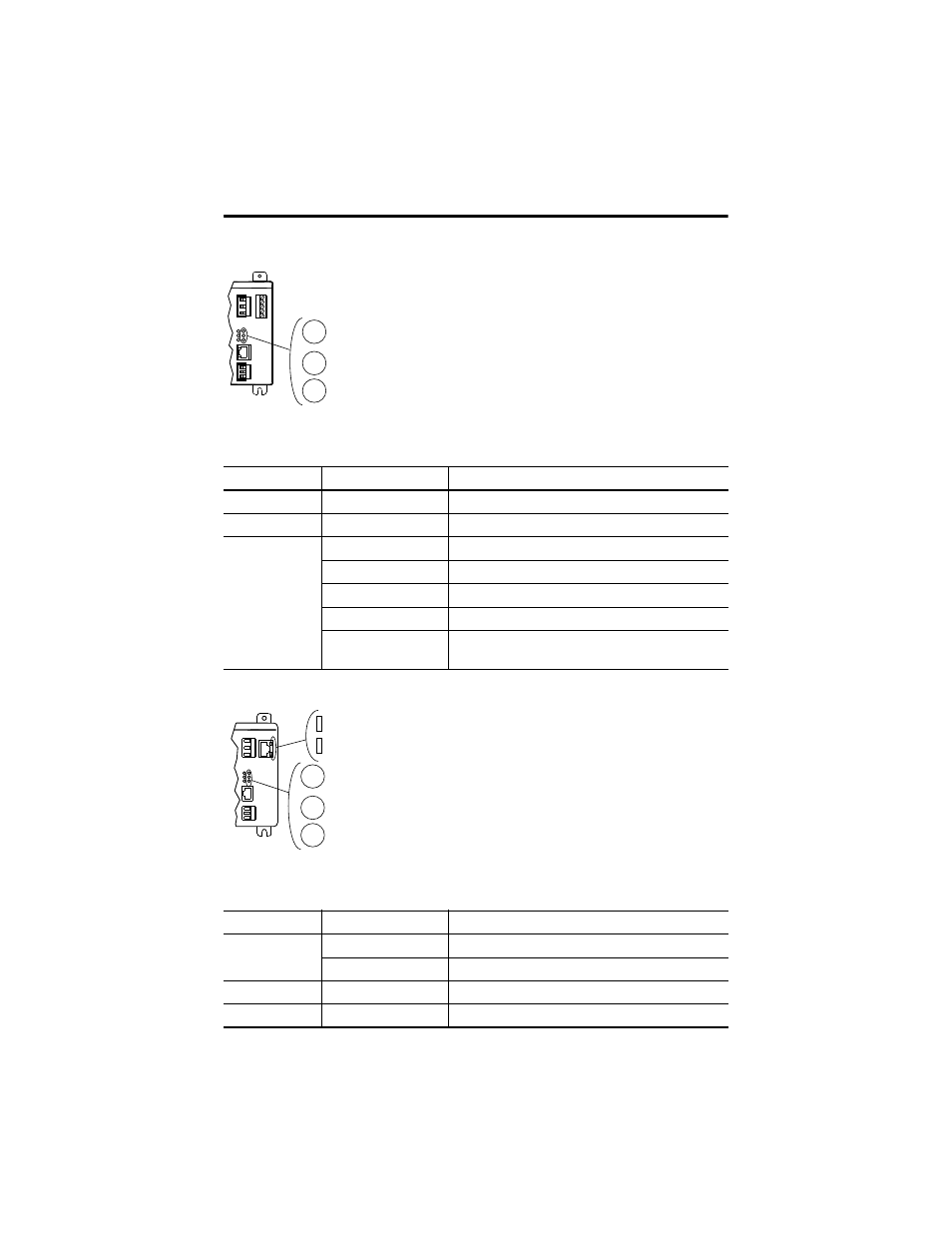

DeviceNet Status Indicators
EtherNet/IP Status Indicators
DeviceNet Optional Communication (catalog numbers ending in -DNT)
Indicator
Status
Description
F1
Off
Not used.
F2
Off
Not used.
Network Status
Off
Power is off or the power monitor is not online.
Flashing green
Network status is OK, no connections established.
Steady green
Network status is OK, connections established.
Flashing red
Recoverable communication failure; port is restarting.
Steady red
Nonrecoverable communication error; check wiring and
configuration parameters.
EtherNet/IP Optional Communication (catalog numbers ending in -ENT)
Indicator
Status
Description
LNK
Off
No valid physical EtherNet connection.
Steady green
Valid physical EtherNet connection.
ACT
Strobing or solid yellow
Power monitor transmitting onto the EtherNet/IP network.
F1
Off
Not used.
Powermonitor 3000
F1
F2
NETWORK
STATUS
F1
LNK
ACT
F2
NETWORK
STATUS
Powermonitor 3000
wermonitor 3000
