All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.
4 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014
Bulletin 1606 Switched Mode Power Supplies
5. AC-Input
AC input nom. AC 100-240V Wide-range input, TN-, TT-, IT-Mains, see Fig. 5-1
AC input range 85-264Vac Continuous operation
60-85Vac Full power for 200ms, no damage between 0 and 85Vac
264-300Vac < 0.5s
Input frequency nom. 50 – 60Hz ±6%
Turn-on voltage typ. 65Vac Steady-state value, see Fig. 5-1
Shut-down voltage typ. 55Vac Steady-state value, see Fig. 5-1
AC 100V AC 120V AC 230V
Input current typ. 0.91A 0.77A 0.47A at 24V, 2.1A see Fig. 5-3.
Power factor *) typ. 0.58 0.56 0.52 at 24V, 2.1A see Fig. 5-1.
Crest factor **) typ. 3.05 3.26 3.91 at 24V, 2.1A
Start-up delay typ. 32ms 32ms 32ms See Fig. 5-2.
Rise time typ. 33ms 33ms 48ms 0mF, 24V, 2.1A, see Fig. 5-2.
typ. 45ms 45ms 60ms 2mF, 24V, 2.1A, see Fig. 5-2.
Turn-on overshoot max. 400mV 400mV 400mV See Fig. 5-2.
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform

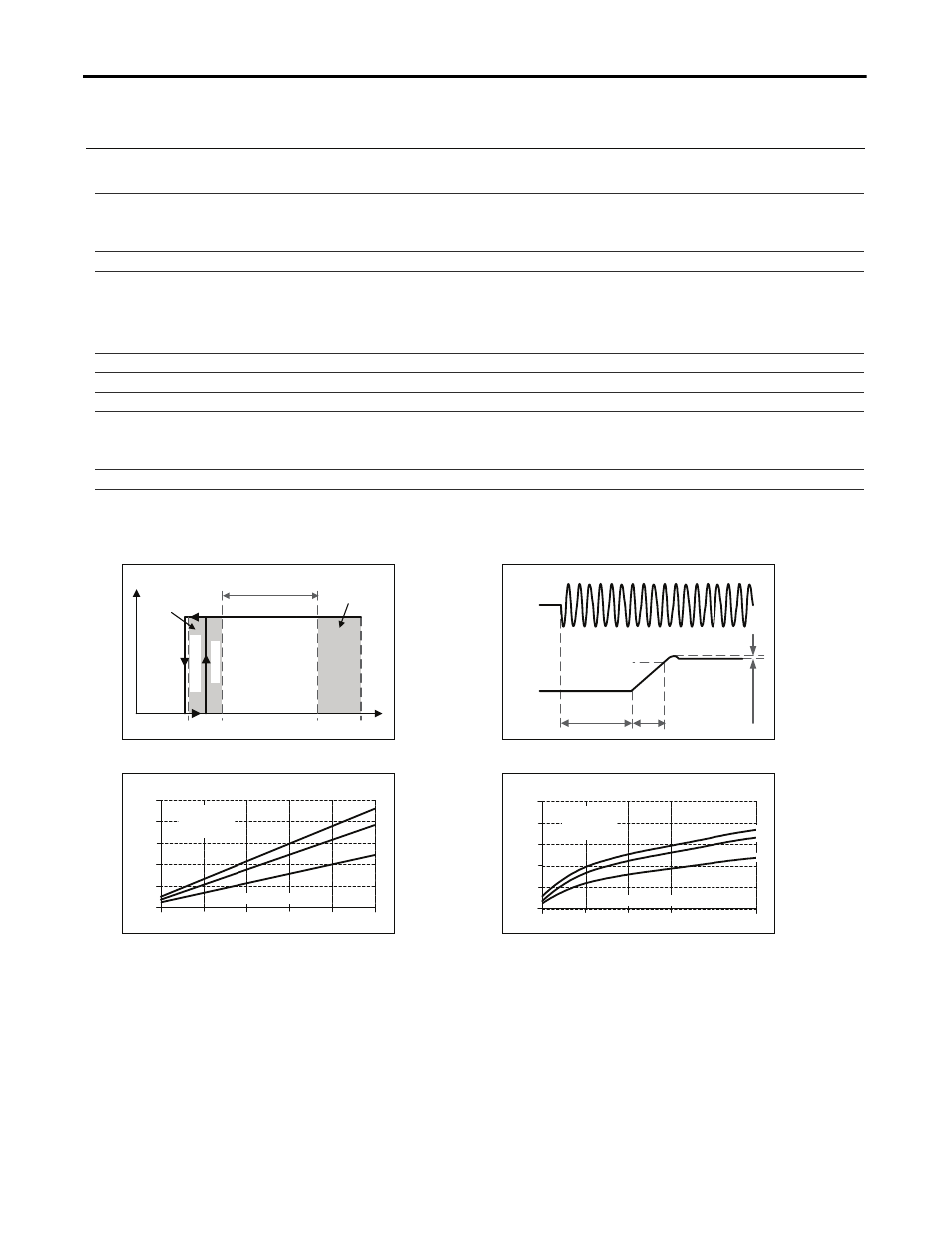

Fig. 5-1 Input voltage range Fig. 5-2 Turn-on behavior, definitions
Tur
n
-on
85V
Rated
input range max.
500ms
V
IN
P
OUT
c a V 0 0 3 V 0 6
full
power
for
200ms
264V
S
h
ut
-down
Start-up
delay
Rise
Time
Ov
ershoot
- 5%
Output
Voltage
Intput
Voltage
Fig. 5-3 Input current vs. output load Fig. 5-4 Power Factor vs. output load
2.1A 0.1 0.5 0.9 1.3
0
0.2
0.4
1.0A
Input Current, typ.
1.7
Output Current
0.6
0.8
a) 100Vac
b) 120Vac
c) 230Vac
b
c
a
2.1A 0.1 0.5 0.9 1.3
0.4
0.45
1.7
Output Current
0.5
0.55
0.6
0.65
Power Factor, typ.
a) 100Vac
b) 120Vac
c) 230Vac
b
c
a
