Chapter 2 Installation
Accessing Terminations For top entry remove the top gland plate, shown in Figure 4, to access input and
output terminals. This plate may be removed for drilling or punching holes for
conduit. Alternate bottom entry should utilize the bottom gland plate shown in
Figure 1 . Access to the communications port is only from the top, as shown in
Figure 4 . A separate conduit knock-out is provided for communications
conductors.
Note: When punching or drilling holes for conduit fittings, take care to avoid dropping metallic
particles inside the enclosure. Metallic contamination will void the product warranty.

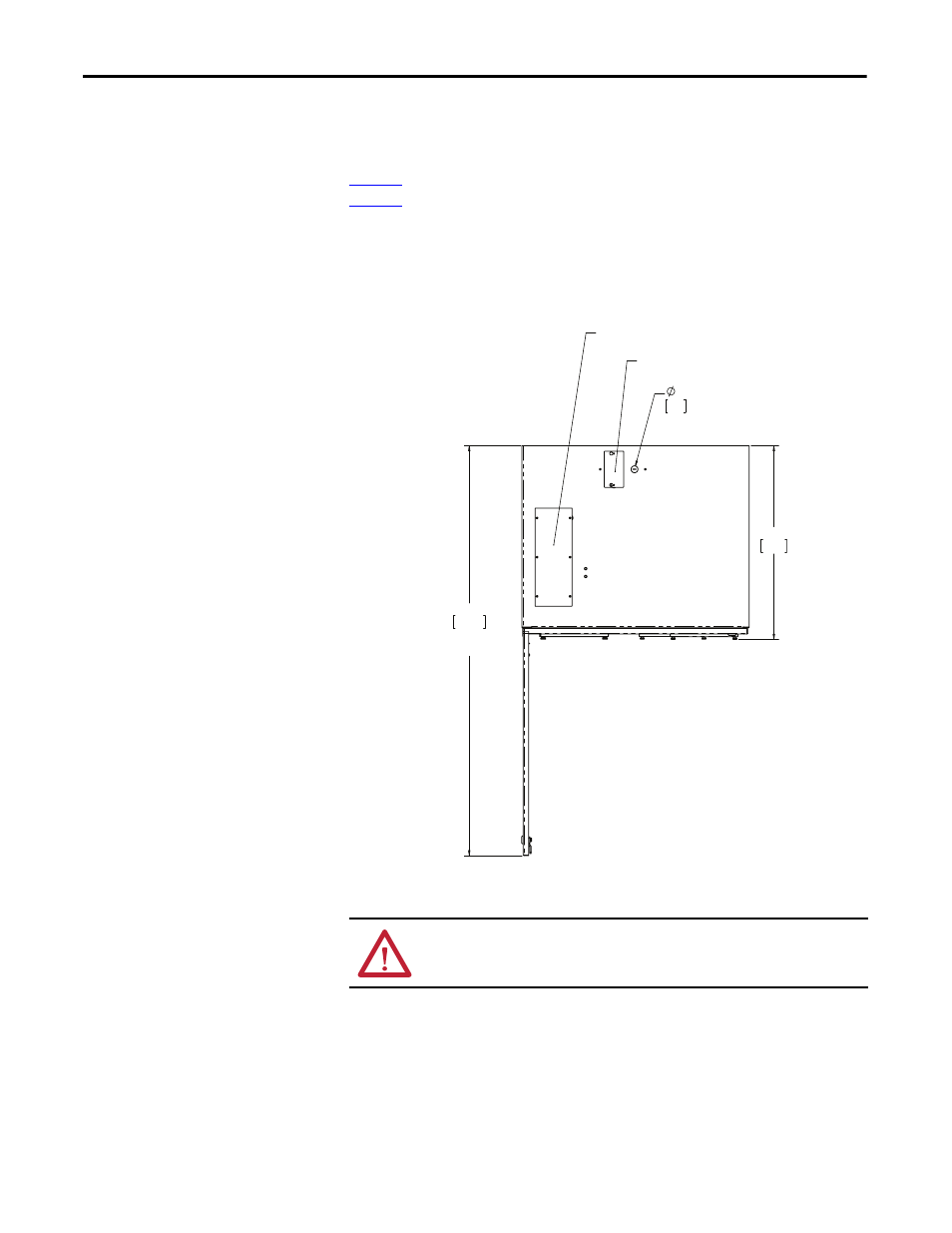

Figure 4 - Top Conductor Entry
WARNING: Metallic particles inside the enclosure will void the warranty.
24.7
627
52.2
1327
CLEARANCE FOR
DOOR SWING
.875
22
COMMUNICATIONS
CONDUIT KNOCK-OUT
COMMUNICATIONS
PORT
AC INPUT/OUTPUT
CONDUIT ENTRY
