Page 12
(12)
PN-224754
DIR 10001182729 (Version 01)

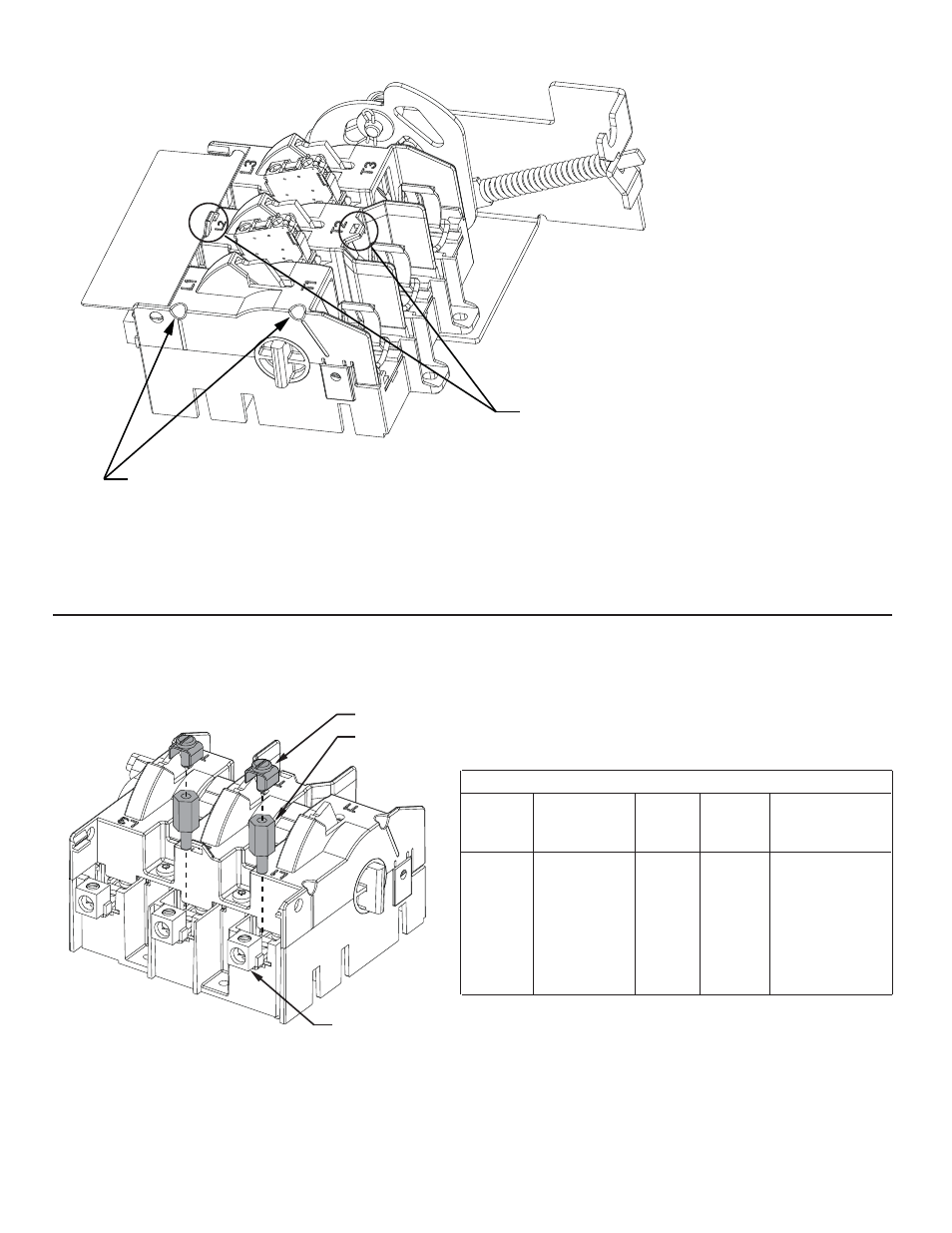

Auxiliary Contact Wire Routing
Line Terminal Adapter Installation
Wire Clamp
Adapter
Wire Lug
Lug Adapter Kit
Adapter
Torque
(Lb.-In.)
Catalog
Number
Wire
Clamp
Torque
(Lb.-In.)
Wire Clamp
Wire Range
Disconnect
Switch
Rating (Size)
1494U-ALT31
30A/60A/100A
25-28
25
(1) 14-10 STR/SOL
(1) 8 STR
(2) 14 SOL/SOL
(2) 14 STR/STR
(2) 12 SOL/SOL
(2) 12 STR/STR
(2) 10 SOL/SOL
(2) 10 STR/STR
(2) 8 STR/STR
Line Side
Load Side
Wire routing channels
Wire tie-down points
