Auxiliary contact installation – Rockwell Automation 1494U-D30_D60_D100 Universal Disconnect Switch Installation Instructions (30A, 60A, 100A) User Manual

Page 11

background image

(11)

PN-224754
DIR 10001182729 (Version 01)

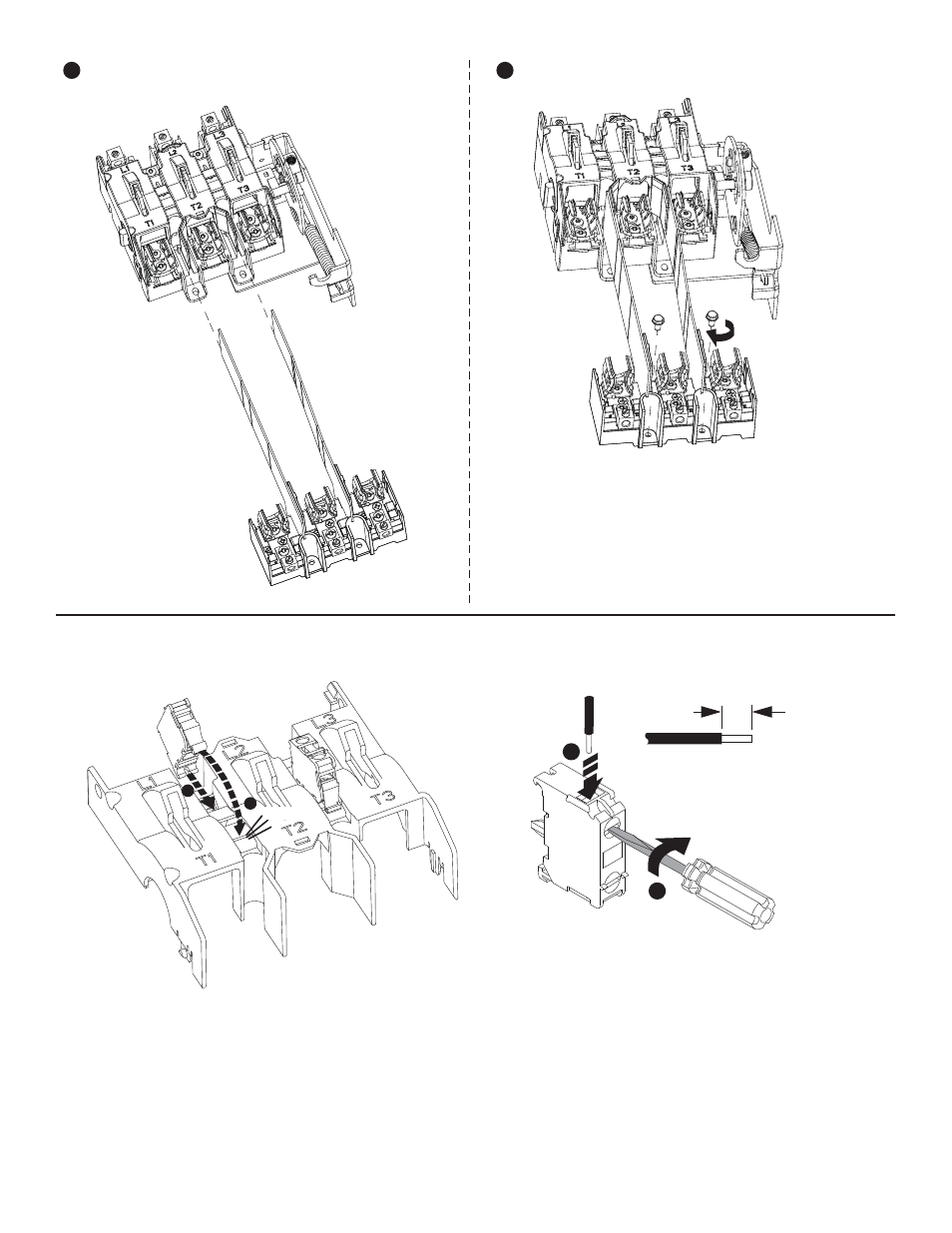

Auxiliary Contact Installation

4

Slide phase barriers into channels on switch.

0.7 - 0.9 Nm
6 - 8 lb-in

8 mm

0.75 - 2.5 mm²
(#18 - #12 AWG)

CLICK

2

1

2

1

5

Fasten fuse block to panel.

23 - 37 lb-in
