Rockwell Automation 1000 Safety Lockout System - Manual (Page 38)

Publication 1000-UM001B-US-P - July 2000
A-8 Certification Documentation

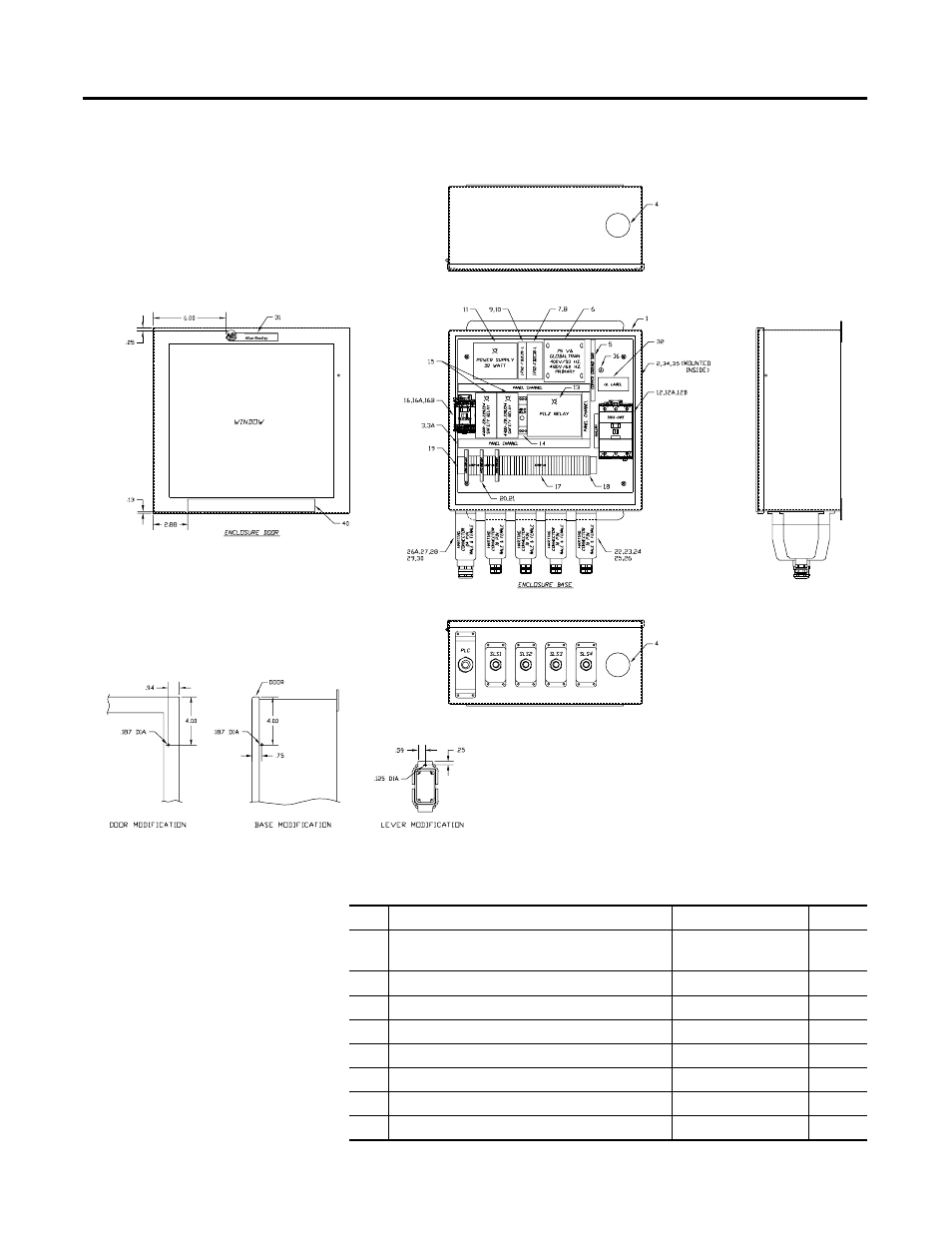

Figure A.4 Composite Assembly of a Bulletin 100, 85 A SLS Box with Pilz Relay
(Cat. No. 1000-NXSLSV85)
Table A.E Composite Assembly of a Bulletin 100, 85 A SLS Box with Pilz Relay
(Cat. No. 1000-NXSLSV85)
Item Description Part Number Amount
1 Encl. w/Mtg. Plt. (Ref. 32267-121-51)
(Ref. 32267-122-02)
Eng. Data 1
2 Nameplate 49103-449-01 1
3 Panel Channel (Panduit E.5x2WH6) Eng. Data 1
3A Cover (Panduit C.5WH6) Eng. Data 1
4 Heyco Bushing SB-200-26 Eng. Data 2
5 Ground Bus N70-12-1 Eng. Data 1
6 Micron Transformer B075-1017-GA Eng. Data 1
7 Primary Fuse Block 1492-FB2C30-L 1
