Installation
Overview
This chapter describes the procedures for the installation of the GE Multilin to
Bulletin 825 Plus Conversion Kit within a medium voltage controller.
Installation within other controller types can also be accomplished by following
the principal philosophy of the retrofit described.
This manual is intended for use by personnel trained and
familiar with medium voltage, solid-state power equipment,
and general industrial controls.
Pre-Installation
To avoid shock hazards, lock out incoming power before
working on the equipment. Verify with a hot stick or appro-
priate voltage measuring device that all circuits are voltage
free. Failure to do so may result in severe burns, injury or
death.
The National Electrical Code (NEC) and/or Canadian Elec-
trical Code (CEC) or other local codes outline provisions
for safely installing electrical equipment Failure to follow
locally applicable codes can result in hazards to personnel
or a non-compliant installation.
Tools required:
• Sheet metal cutting tools capable of cutting up to 12 gauge material
• Hand drill, and drill bits
• Screw drivers / Nut drivers
• Drop sheets or tarp
• Socket wrench with 3/8 socket
• Marking device
• Needle nose pliers
• Wire cutters
Chapter
4
1500-IN059C-EN-E – June 2013

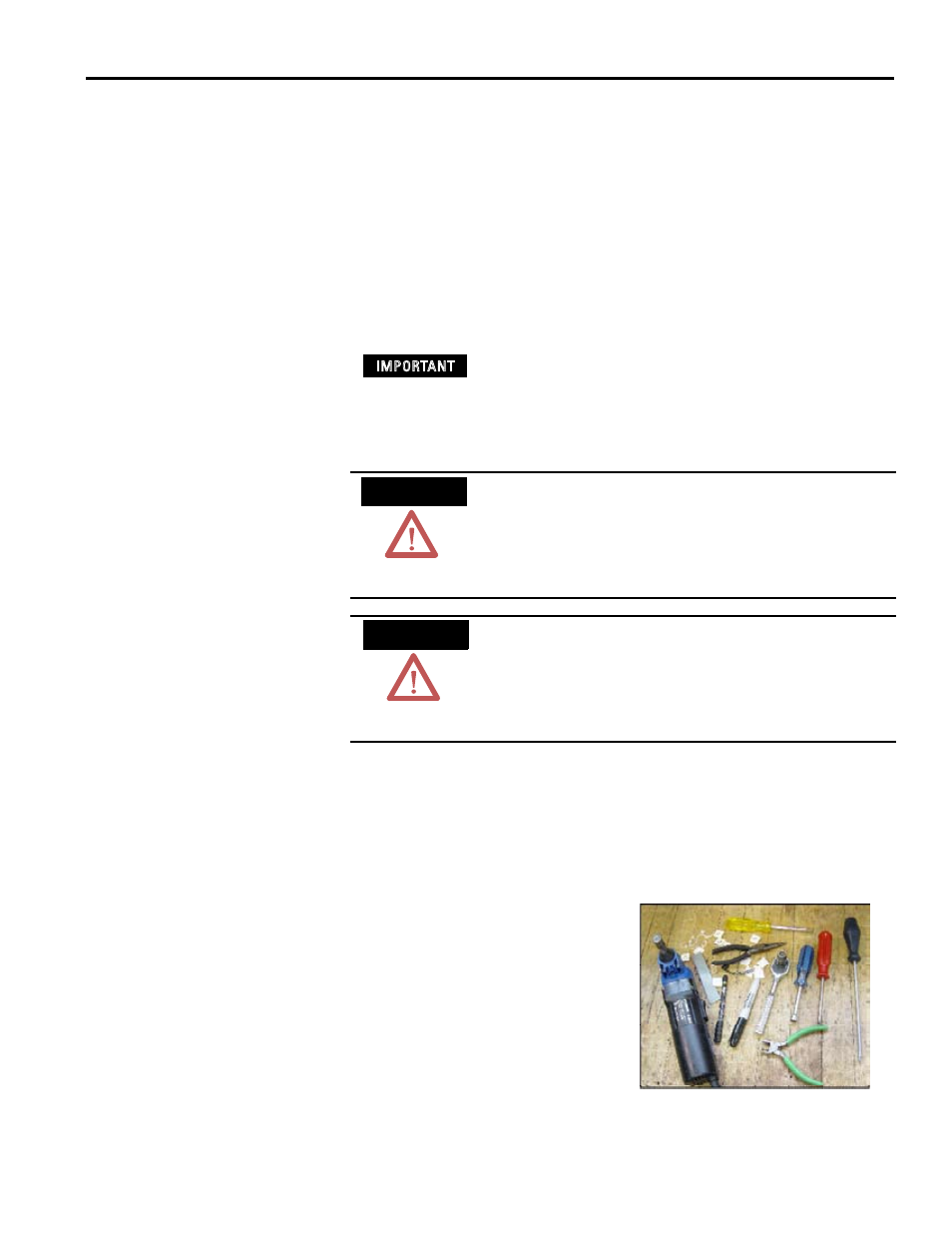

Figure 4.1 – Tools Required
