BULLETIN 1494C (600A) CABLE OPERATED
DISCONNECT SWITCH KIT INSTALLATION
INSTRUCTION SHEET
1 1026760
42052-190
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1 2 3 4 5 6 7 8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42052
------------- -------------
-------------
-------------
-------------
-------------
3 13
THIS DRAWING IS THE PROPERTY OF
ROCKWELL AUTOMATION, INC.
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL AUTOMATION, INC.

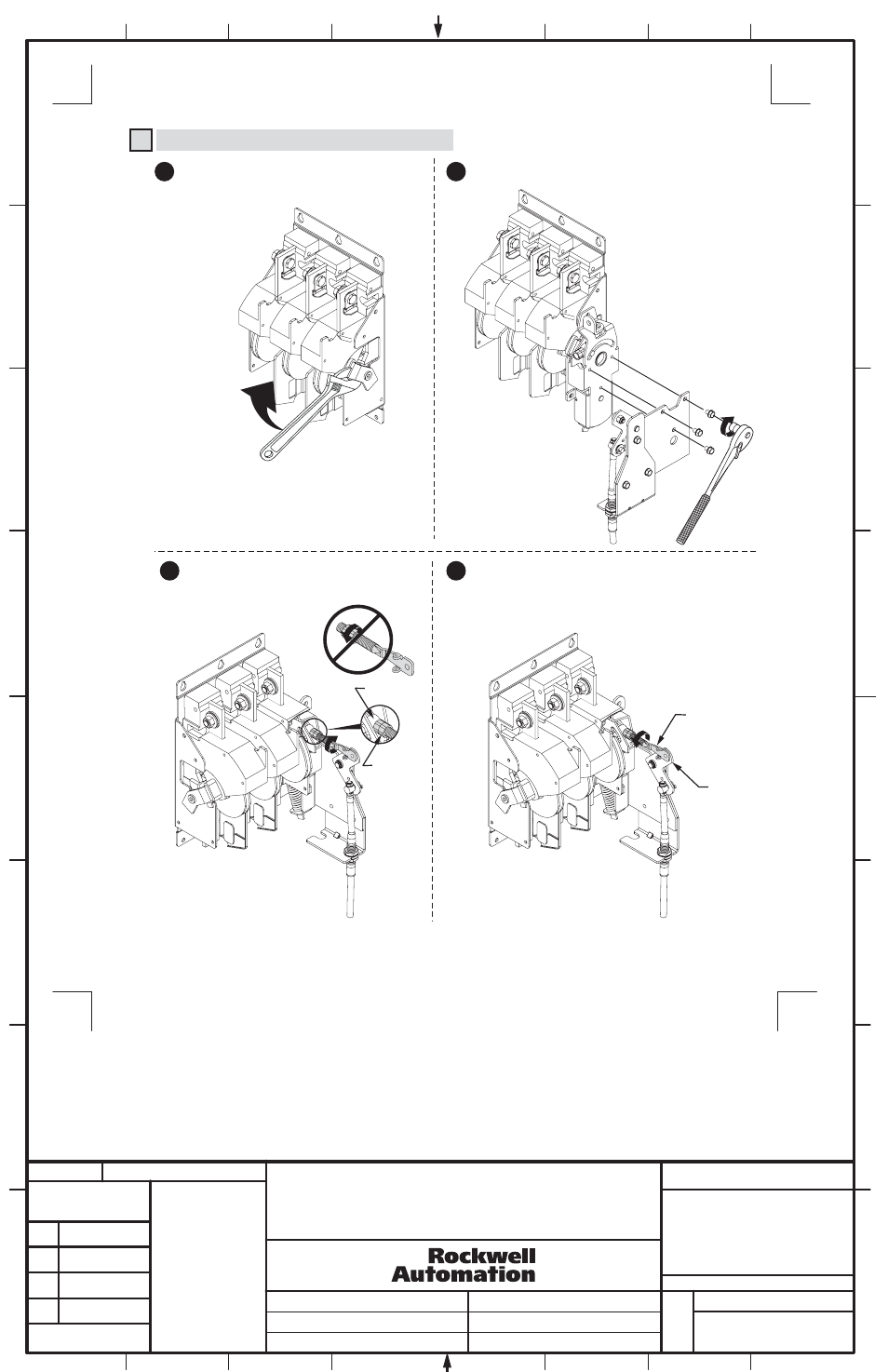

Disconnect Switch Installation (Cont'd)
Rotate crossbar to closed position. Assemble the cable mechanism bracket to the disconnect switch.
Turn the connecting rod clockwise (approximately 9 - 10
turns) until jam nuts touch drive bar Turn the connecting rod counter-clockwise (less than 1 turn)
until hole in threaded rod aligns with hole in cable mechanism
lever.
Drive Bar
Jam Nuts
1
90 - 130 lb-in
Threaded
Rod
Cable
Mechanism
Lever
