42052-190-01 (1)
Printed in U.S.A.
Catalog Number and Description
Electrical
Interlock
Auxiliary
Contact
Lug
Connectors
Optional Accessories
(Installation Instructions
Included with Accessory Kits)
Switch with Right Hand Mechanism
1495-N34 (1-N.O./N.C.) *
1495-N35 (2-N.O./N.C.) *
*Requires Adapter Kit 1495-N36
595-A (1-N.O.) (600A) *
595-B (1-N.C.) (600A) *
*Requires Adapter Kit 595-N1
Fuse
Cover
with Door
Switch and Fuse Block
1494R-N10
(CU Wire (2) - #1/0 - 350 MCM)
(600A or 400A Fuse Block)
(3 per kit)
1494R-N11
(CU Wire (1) - #1/0 - 500 MCM)
(600A or 400A Fuse Block)
(3 per kit)
1494R-N12
(CU Wire (2) - #1/0 - 350 MCM)
(600A)
(2 per kit)
Switch
Rating Fuse
Class
Fuse Clip
Rating
Cat No.
250V 600V
400A 400A H, J, R 600A 1495-N61
600A ---- ---- Non-Fusible 1495-N61
Separately Mounted Fuse Blocks
Available only for R.H. mounted
disconnect switch.
600A 600A J 600A 1495-N61
600A 600A H,R 600A N/A
BULLETIN 1494C (600A) CABLE OPERATED
DISCONNECT SWITCH KIT INSTALLATION
INSTRUCTION SHEET
1 1026760
42052-190
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1 2 3 4 5 6 7 8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42052
------------- -------------
-------------
-------------
-------------
-------------
12 13
THIS DRAWING IS THE PROPERTY OF
ROCKWELL AUTOMATION, INC.
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL AUTOMATION, INC.

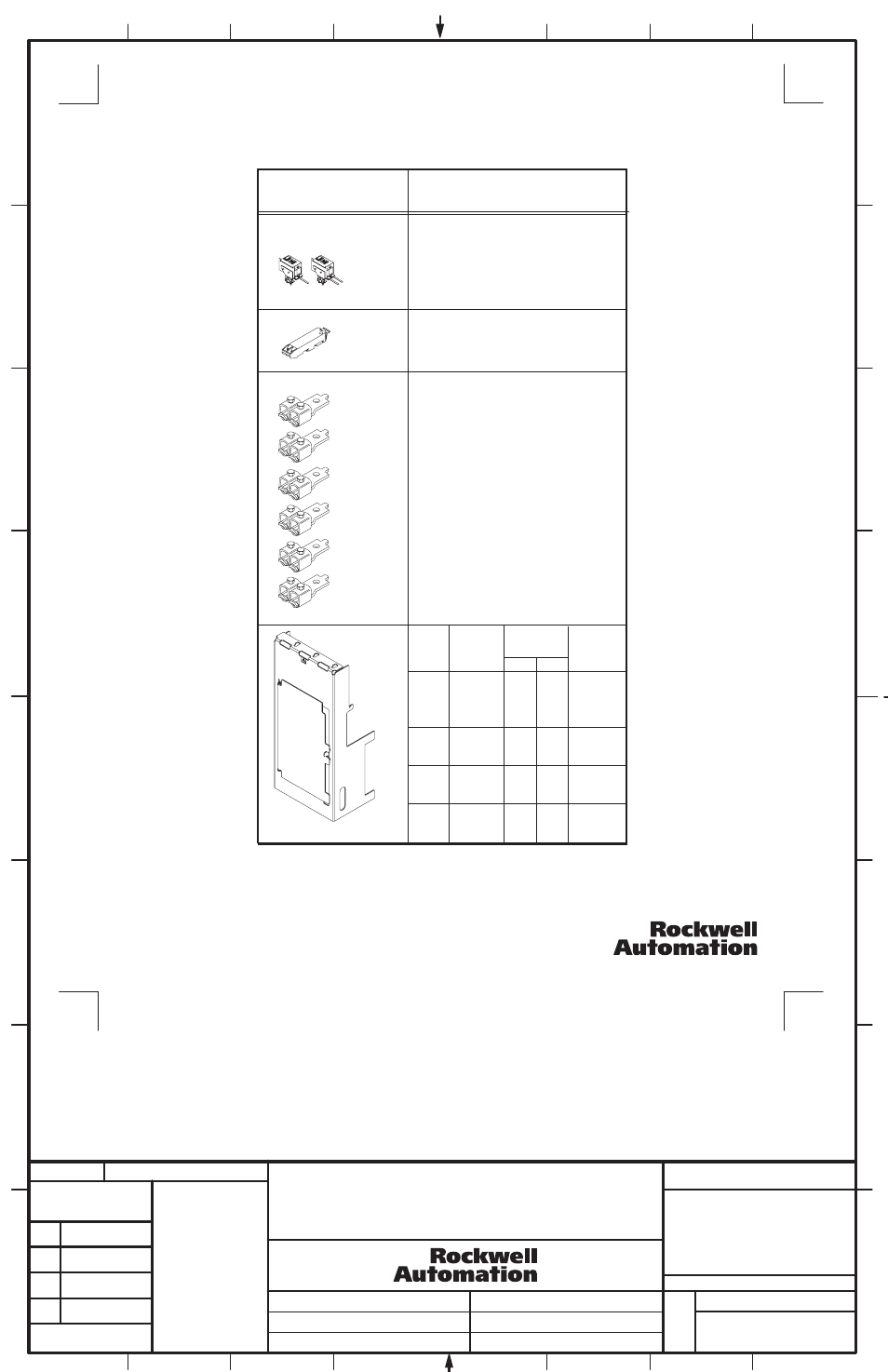

Bulletin 1494C Cable Operated Disconnect Switch Kit Optional Accessory List
