Rockwell Automation 1494C-xxx - Series 2 Cable Operated Disconnect Switch Kit and Acessories (600A) - Manual (Page 11)

(11)
Disconnect Switch Kit Cat No.
Cable with Right Hand Mechanism
1494C-CM13: 600A (4 Ft Cable)
1494C-CM14: 600A (5 Ft Cable)
1494C-CM15: 600A (6 Ft Cable)
1494C-CM16: 600A (10 Ft Cable)
Cable with Left Hand Mechanism
1494C-CMX13: 600A (4 Ft Cable)
1494C-CMX14: 600A (5 Ft Cable)
1494C-CMX15: 600A (6 Ft Cable)
1494C-CMX16: 600A (10 Ft Cable)
Cable
Mechanism

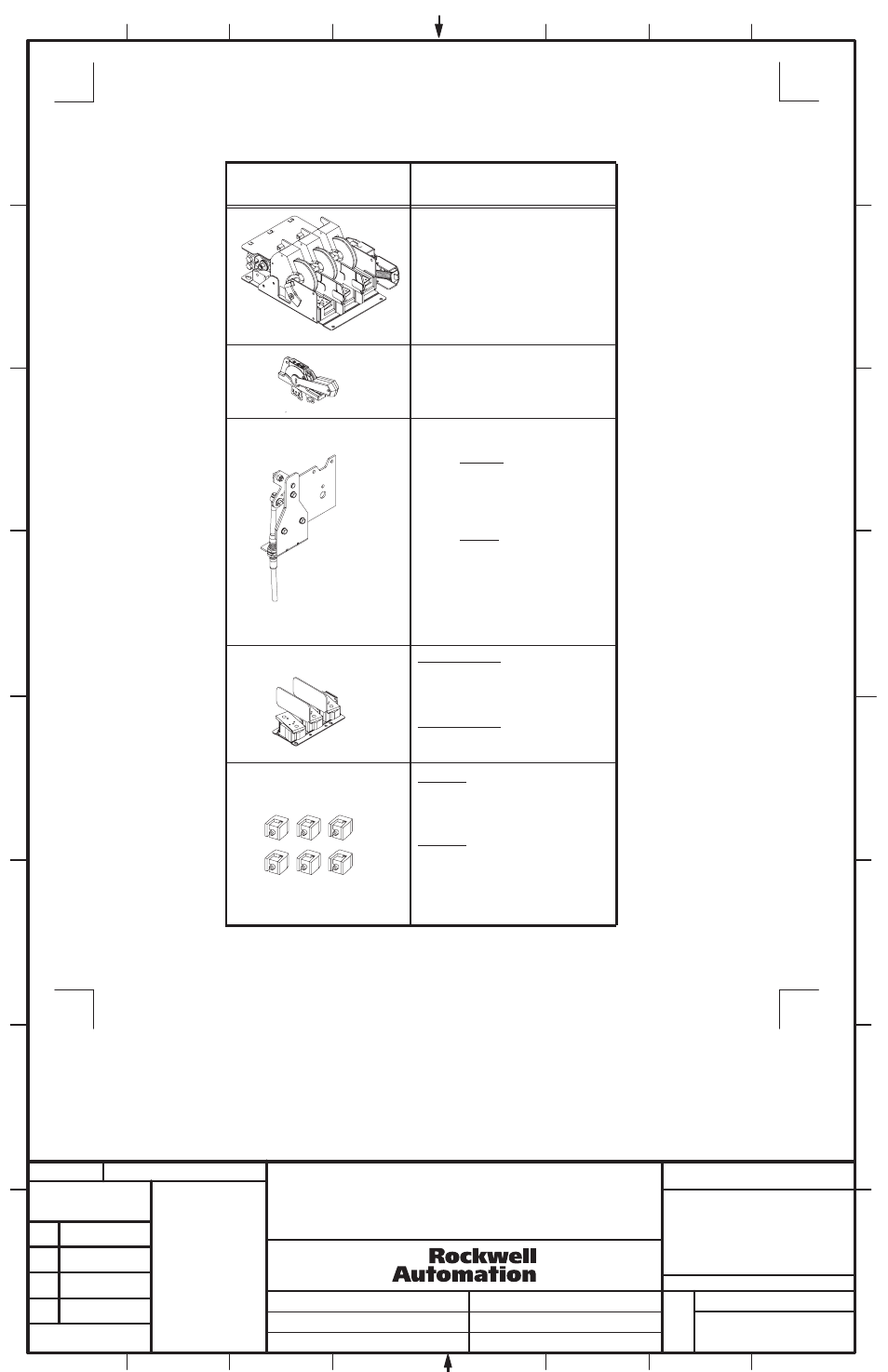

Bulletin 1494C Cable Operated Disconnect Switch Kit Components
Handle
Switch
Switch with Right Hand Mechanism
1494V-DS600 (600A)
Convertible in the field for Left Hand operation
1494F-M2 (7-1/2" Painted Metal) (400A / 600A)
1494F-S2 (7-1/2" Stainless Steel) (400A / 600A)
Fuse
Block
Fuse
Clips
Mounted with Switch
1494V-FSV400 (400A Class H, J, R)
1494V-FS600 (600A Class J)
400A Fuses
1401-N46 (Class H, J, 400A-250V, 400A-600V)
1401-N55 (Class R, 400A-250V, 400A-600V)
600A Fuses
Class J - Bolts directly to switch and fuse block
(no clips required)
Class H, R - Fuse clips included with separately
mounted fuse blocks Cat. Nos.1491-N621
and 1491-R621
Separately Mounted
1491-N621 (600A 250V / 600V Class H)
1491-R621 (600A 250V / 600V Class R)
BULLETIN 1494C (600A) CABLE OPERATED
DISCONNECT SWITCH KIT INSTALLATION
INSTRUCTION SHEET
1 1026760
42052-190
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1 2 3 4 5 6 7 8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42052
------------- -------------
-------------
-------------
-------------
-------------
11 13
THIS DRAWING IS THE PROPERTY OF
ROCKWELL AUTOMATION, INC.
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL AUTOMATION, INC.
