Chapter 5
Powermonitor Data Display and Configuration
5–13
The screen shown in Figure 5.11 is displayed when the operator selects
DEVICE SETUP for a Powermonitor. To modify any parameter values, the
Powermonitor Software password must be entered, followed by .
Pressing will return to the MAIN MENU.

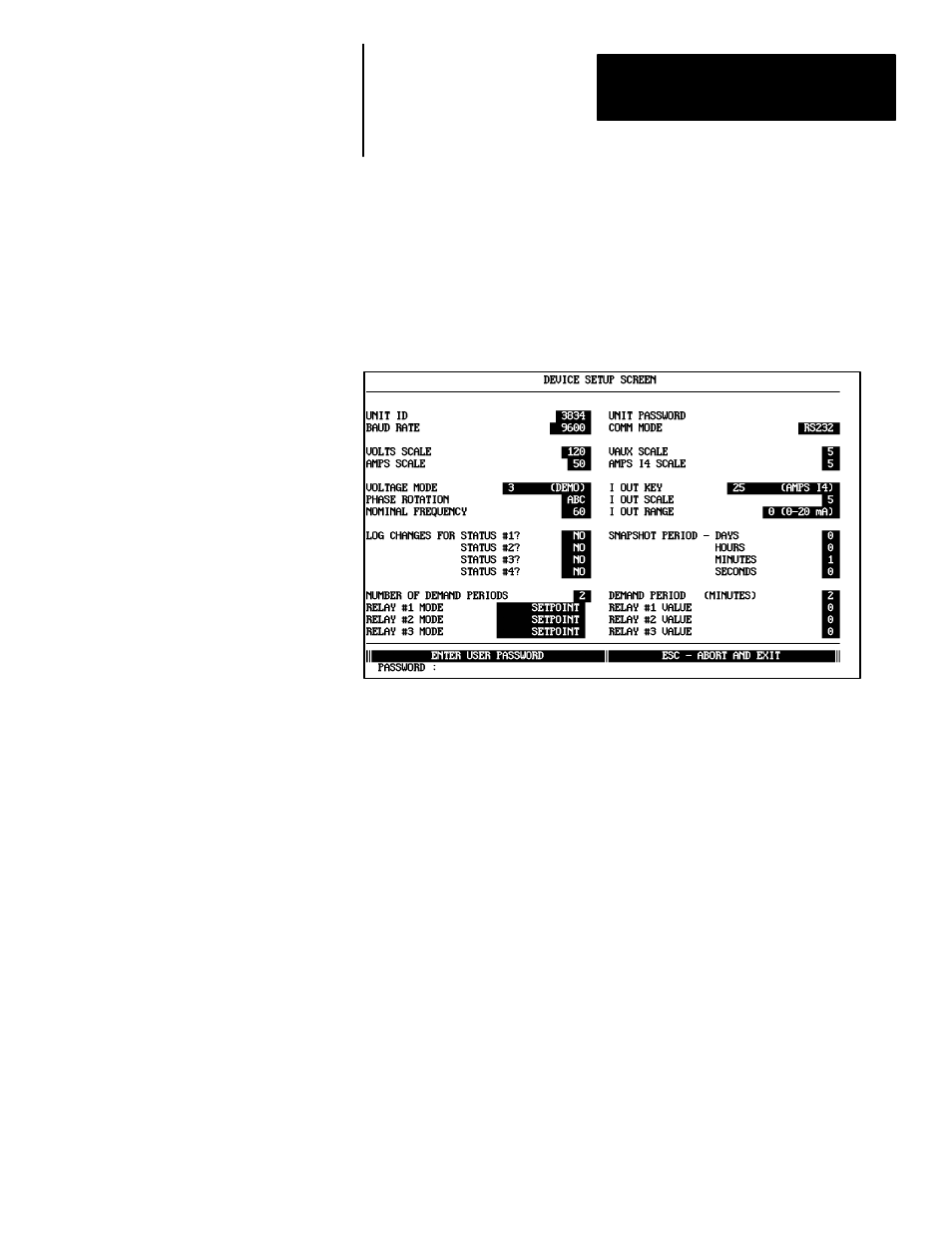

Figure 5.11
Device Setup Screen
Setup Parameter Descriptions
A brief description of each parameter accessible from the DEVICE SETUP
screen is given below. For more information, refer to Publication 1400–800
‘‘Bulletin 1400 Powermonitor Installation and Operation Manual.”
Device Setup
