Typical DeviceNet Scanner Examples

5-3

1500-IN057

C-EN-P – June 2013

I M P O R T A N T

I M P O R T A N T

To minimize the impact of DeviceNet trunk

length limitations, it is recommended that each

MCC have an independent DeviceNet network.

Accordingly, the following architecture shown

must be used with caution.

LV

LV

MV

MV

LV

LV

MV

MV

LV

LV

MV

MV

LV

LV

MV

MV

121Ohms

DeviceNet

Scanner

121 Ohms

LV

LV

MV

MV

LV

LV

MV

MV

LV

LV

MV

MV

LV

LV

MV

MV

121Ohms

DeviceNet

Scanner

DeviceNet

Scanner

121 Ohms

121 Ohms

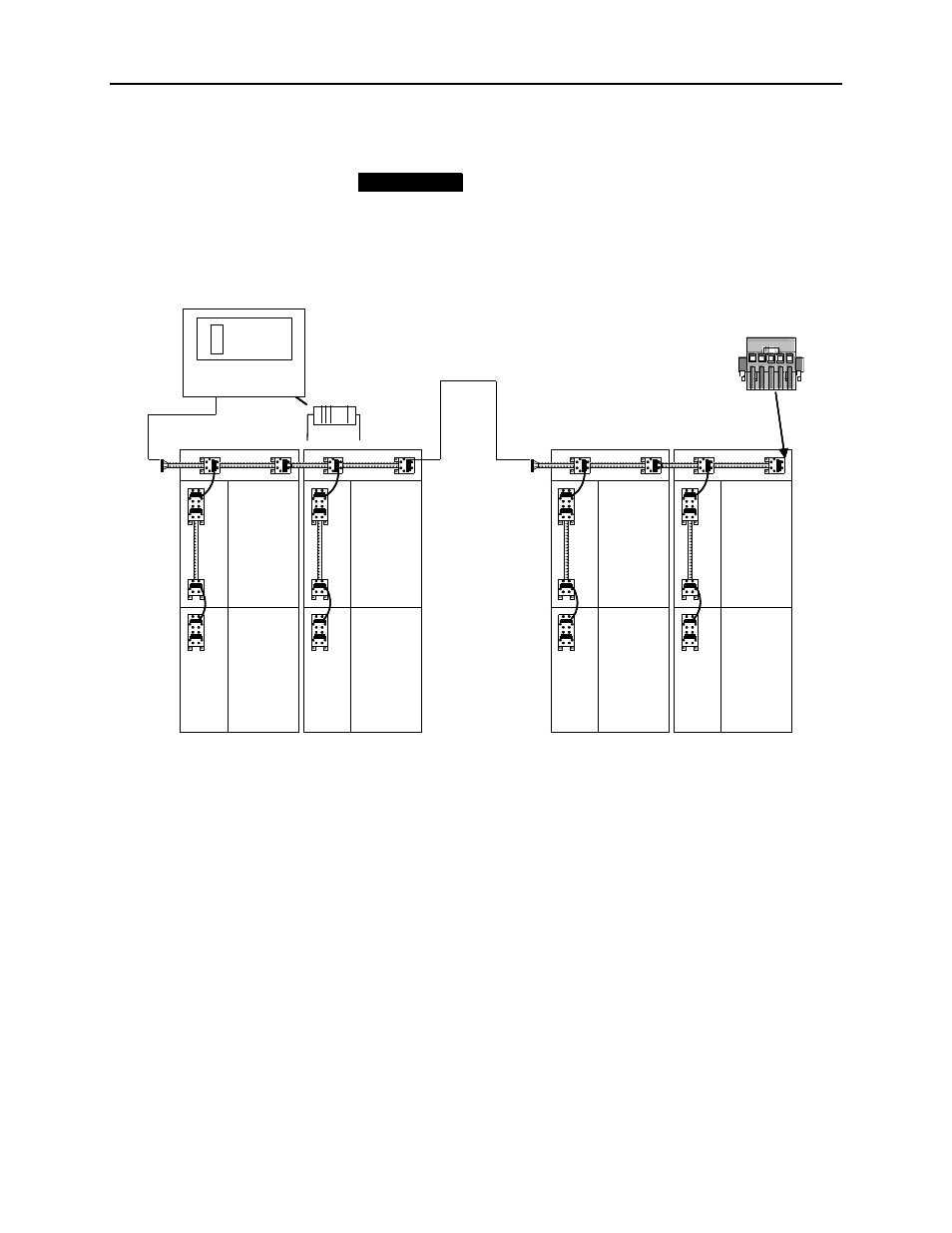

Figure 5.3 – DeviceNet Scanner Remote from MV Controller Line-up;

one DeviceNet Network; Divided MV Controller Line-ups
