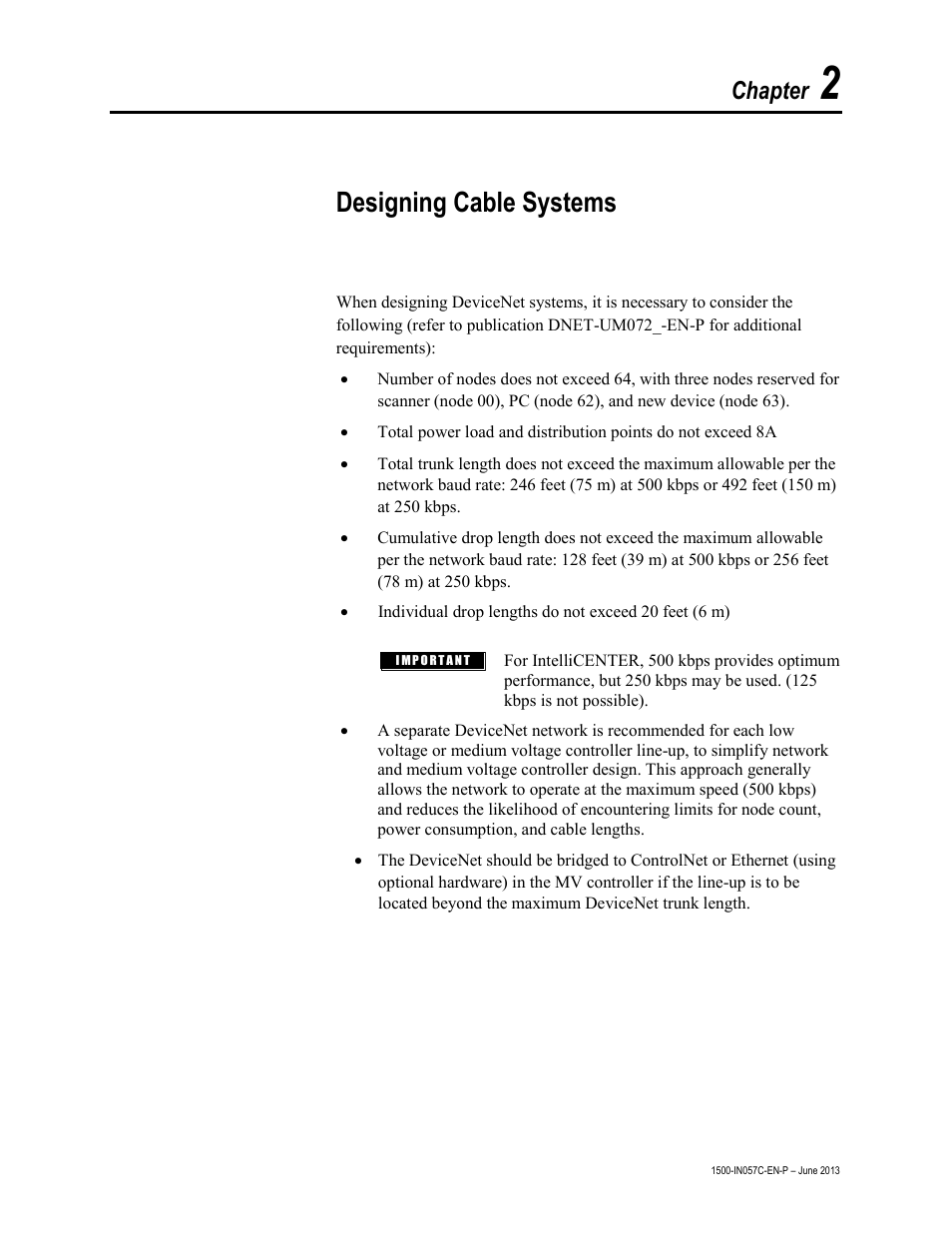

Designing cable systems, Chapter – Rockwell Automation 1500 DeviceNet MV Controllers Installation Instructions User Manual
Page 7
