Approximate dimensions, Table 6 - dimensions – Rockwell Automation 1608N MiniDySC User Manual, 2-6 Amp User Manual
Page 12

12
Rockwell Automation Publication 1608N-UM001B-EN-P - May 2014
Chapter 3
Specifications and Dimensions

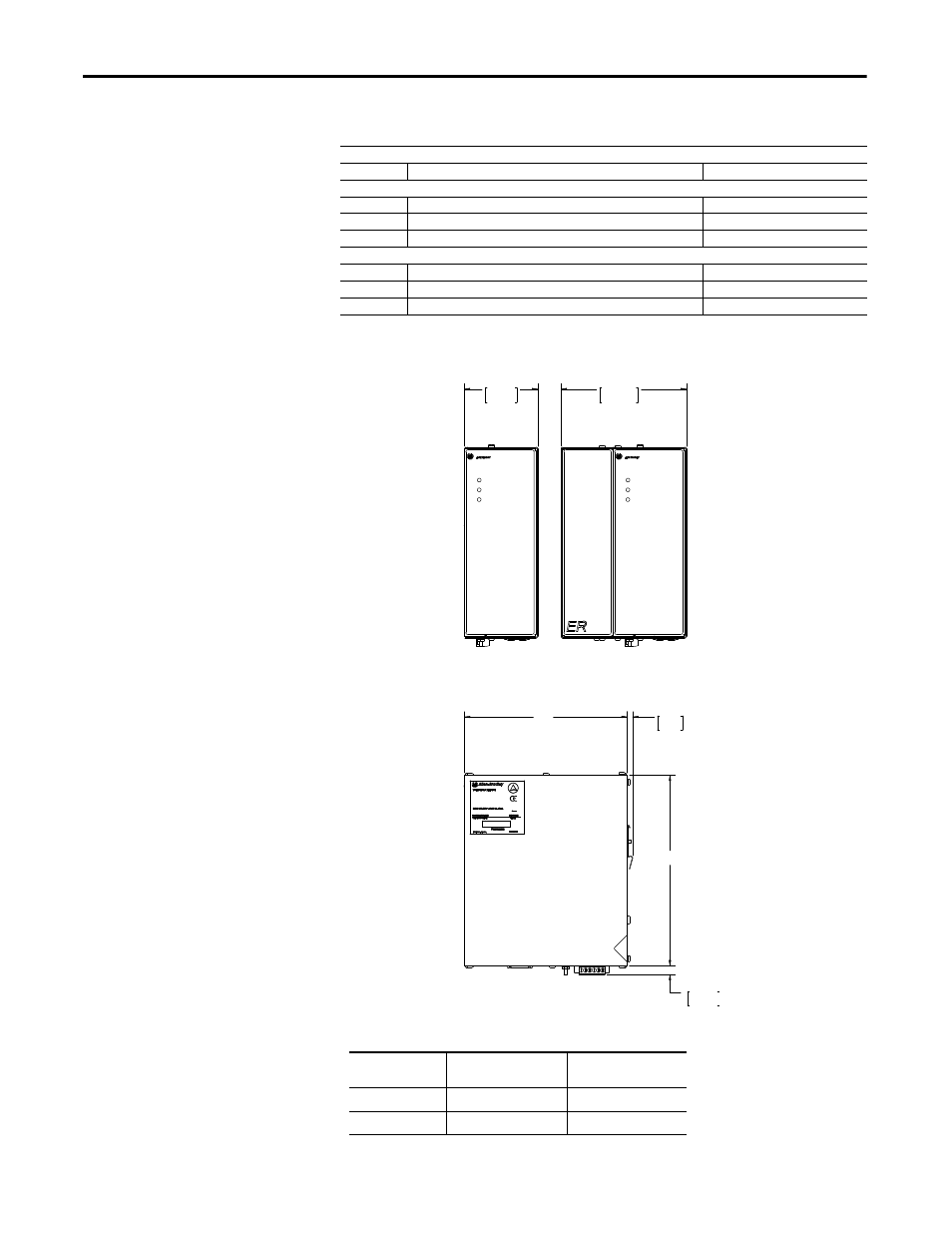

Approximate Dimensions
Dimensions in inches [mm]. Dimensions are not intended to be used for manufacturing purposes.
Table 6 - Dimensions
Dimensions
Rating (VA)
Dimensions - H x W x D in. [mm]
Weight - lbs. [kg]
Standard Run-time (SR)
250
8.3 x 3.4 x 6.3 [210.8 x 86.4 x 160]
4.8 [2.18]
500
9.3 x 3.4 x 7.8 [236.2 x 86.4 x 198.1]
6.3 [2.86]
750
9.3 x 3.4 x 7.8 [236.2 x 86.4 x 198.1]
6.7 [3.04]
Extended Run-time (ER)
250
8.3 x 5.8 x 6.3 [210.8 x 147.3 x 160]
8.0 [3.63]
500
9.3 x 5.8 x 7.8 [236.2 x 147.3 x 198.1]
9.5 [4.31]
750
9.3 x 5.8 x 7.8 [236.2 x 147.3 x 198.1]
10.2 [4.63]
Dimension
250 VA
in. [mm]
500/750 VA
in. [mm]
“A”
6.0 [152.4]
7.5 [190.5]
“B”
7.8 [197.7]
8.8 [223.1]
5.8
146.6
ER
3.4
85.9
SR
"B"
.4
10.1
"A"
.3
6.4
SR/ER
