Behringer Rev2496 - Manual (Page 22)

22
V-VERB PRO REV2496
5.4 The V-VERB PRO in digital environment
Thanks to its exhaustive set of digital connections, the REV2496
is almost predestined for use in a complete digital setup. This
way, you eliminate unnecessary signal conversions that may
degrade the quality of your sound.
When connected to a digital mixing console (in our example
the BEHRINGER DDX3216), a typical setup could look like this:

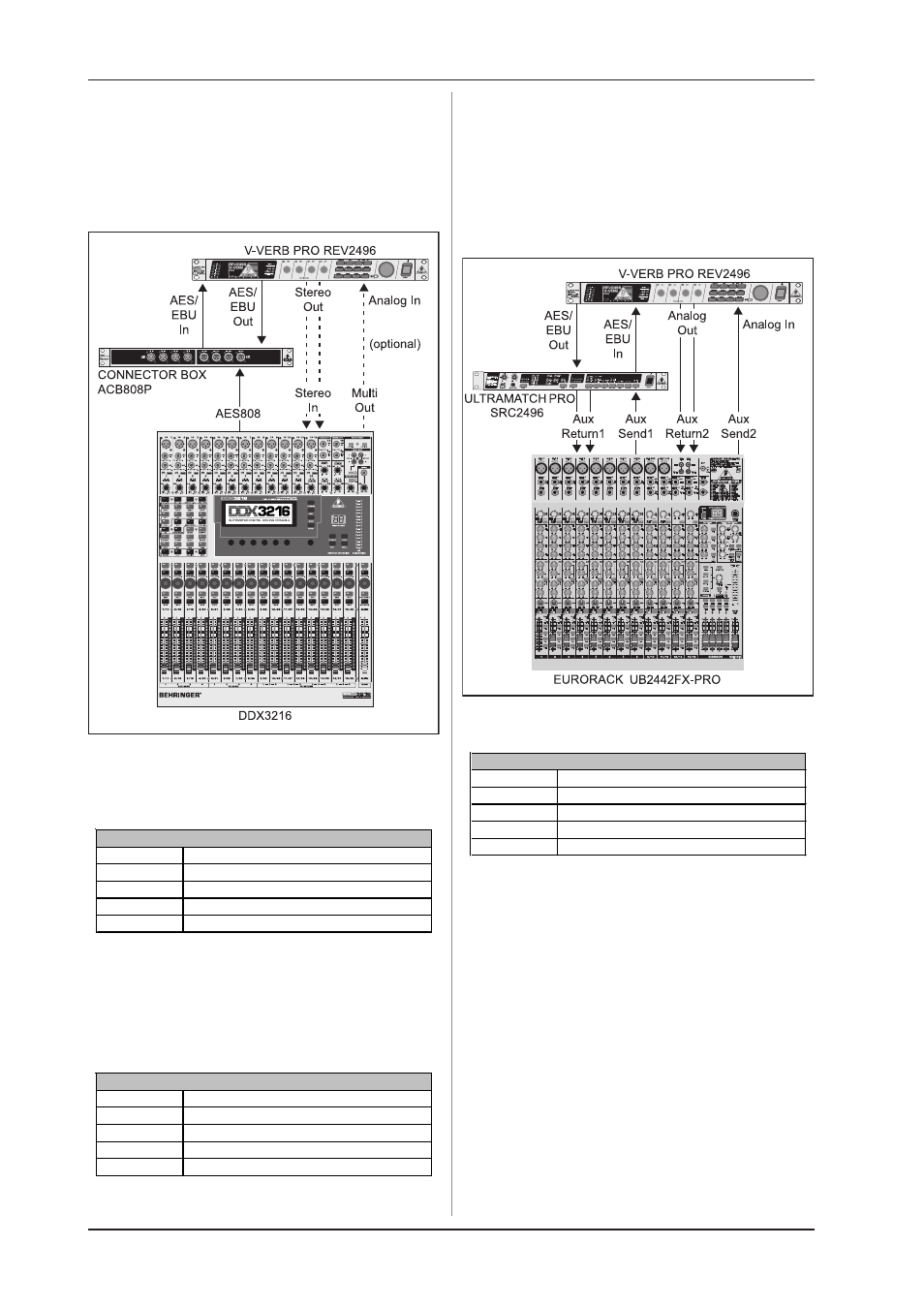

Fig. 5.4: V-VERB PRO and DDX3216
Connect your digital mixer to the digital inputs of the REV2496.
Since the REV2496 features both optical and XLR connections,
you are ready for practically all situations.
Routing Parallel 2,3,5,6; Serial 1,2,3
Master Input digital
Wet Dry Mix extern
Clock Source Digital In
Input Source XLR
SETUP
Tab. 5.5: SETUP settings for wiring the REV2496
to a digital mixing console
It can even be configured to function as a 4-channel setup if your
mixer features additional analog connectors that can be configured
as aux sends and returns. Depending on the selected configuration,
you can simultaneously route one or two signals to the REV2496,
and use one or both outputs with separate or mixed signals.
Routing Parallel 1, 2, 3, 4; Serial 3, 4
Master Input depending on the conf iguration
Wet Dry Mix ex ternal
Cloc k Sourc e depending on the conf iguration
Input Source
depending on the conf iguration
SETUP
Tab. 5.6: SETUP settings when using the REV2496
in a 4-channel setup
5.5 The V-VERB PRO in
4-channel operation
Your REV2496 truly shines in 4-channel operation, when its
extensive connectivity options and configuration possibilities
really come into play. Using an external A/D-D/A converter, you
can use all four connectors at the same time, offering utmost
flexibility. Our ULTRAMATCH PRO SRC2496 is used in this
application as a converter for the digital connectors of your
REV2496.
Fig. 5.5: V-VERB PRO in 4-channel operation with an
external A/D-D/A converter
Routing Parallel 1, 2, 3, 4; Serial 3, 4
Master Input depending on the conf iguration
Wet Dry Mix ex ternal
Cloc k Sourc e depending on the conf iguration
Input Source
depending on the conf iguration
SETUP
Tab. 5.7: SETUP settings for connecting the REV2496
to an A/D-D/A converter
+
If you use a digital mixer as a “Clock Master” and
want to use the digital audio connections only for
synchronization, set the clock source on your
REV2496 to DIG. IN and the input source to XLR or
OPT. (depending on the type of the desired
connector). If you for example wish to use a central
“Studio Master Clock” generator, you can carry out
the synchronization via the wordclock input (BNC)
as well. In this case, select WDCLK on your REV2496
as the clock source. On the other hand, if the
REV2496 acts as the “Clock Master,” one of the three
possible sampling frequencies (44.1, 48 or 96 kHz)
has to be selected in SETUP on the DIGI page.
5. APPLICATIONS
