Approximate dimensions, Figure 12 - 12 amp and 25 amp sr dimensions – Rockwell Automation 1608N MiniDySC User Manual, 12-50 Amp User Manual
Page 18

18
Rockwell Automation Publication 1608N-UM002B-EN-P - May 2014
Chapter 3
Specifications and Dimensions
Approximate Dimensions
Dimensions in inches [mm]. Dimensions are not intended to be used for manufacturing purposes.

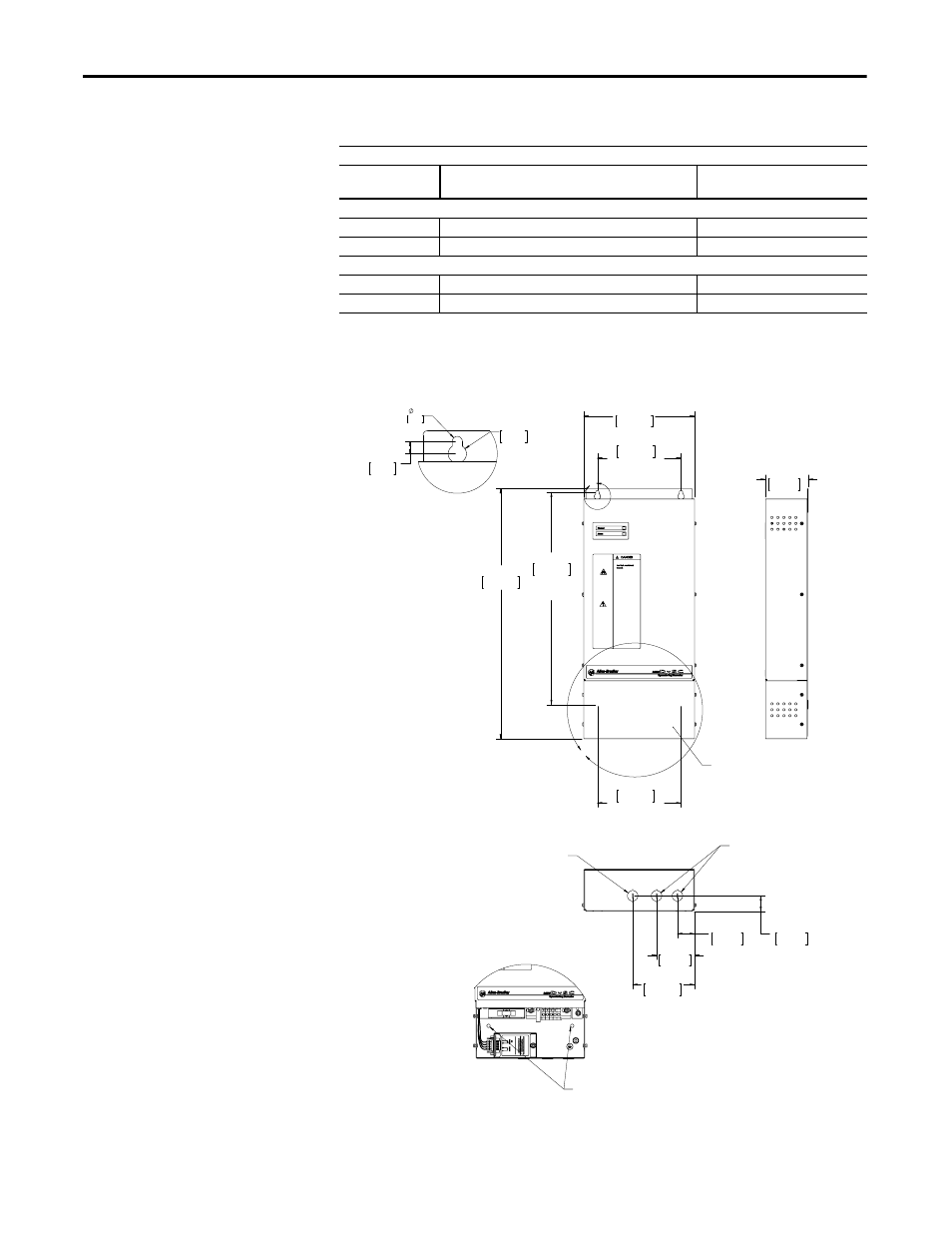

Figure 12 - 12 Amp and 25 Amp SR Dimensions
Dimensions
Rating
(A)
H x W x D
in. [mm]
Weight
lbs.[kg]
Standard Run-time (SR)
12, 25
22 x 10 x 4 [550.8 x 254 x 101.6]
18.6 [8.44]
50
21 x 19 x 4 [533.4 x 482.6 x 101.6]
34.5 [15.5]
Extended Run-time (ER)
25
21 x 19 x 4 [533.4 x 482.6 x 101.6]
32.5 [14.7]
50
21 x 19 x 7 [533.4 x 482.6 x 177.8]
51.5 [23.4]
9.27
235.36
7.00
177.80
UPPER
MOUNTING
21.14
536.97
17.95
455.93
VERTICAL
MOUNTING
7.00
177.80
LOWER
MOUNTING
B
A
LOWER MOUNTING
HOLES LOCATED UNDER
ACCESS COVER. SEE DETAIL B
3.56
90.51
1.31
33.35
1.43
36.40
3.18
80.85
5.18
131.65
COMMUNICATIONS
.89 [22.6mm] DIAMETER EKO
2X INPUT AND OUTPUT
AC CONNECTIONS.
.89 [22.6mm] DIAMETER EKO
DETAIL B
LOWER MOUNTING HOLE
LOCATION: 2X .281 DIA. HOLES
UNDER ACCESS COVER.
.28
7.19
R.26
6.50
.350
8.89
DETAIL A
MOUNTING
KEYHOLE
2 PLACES
