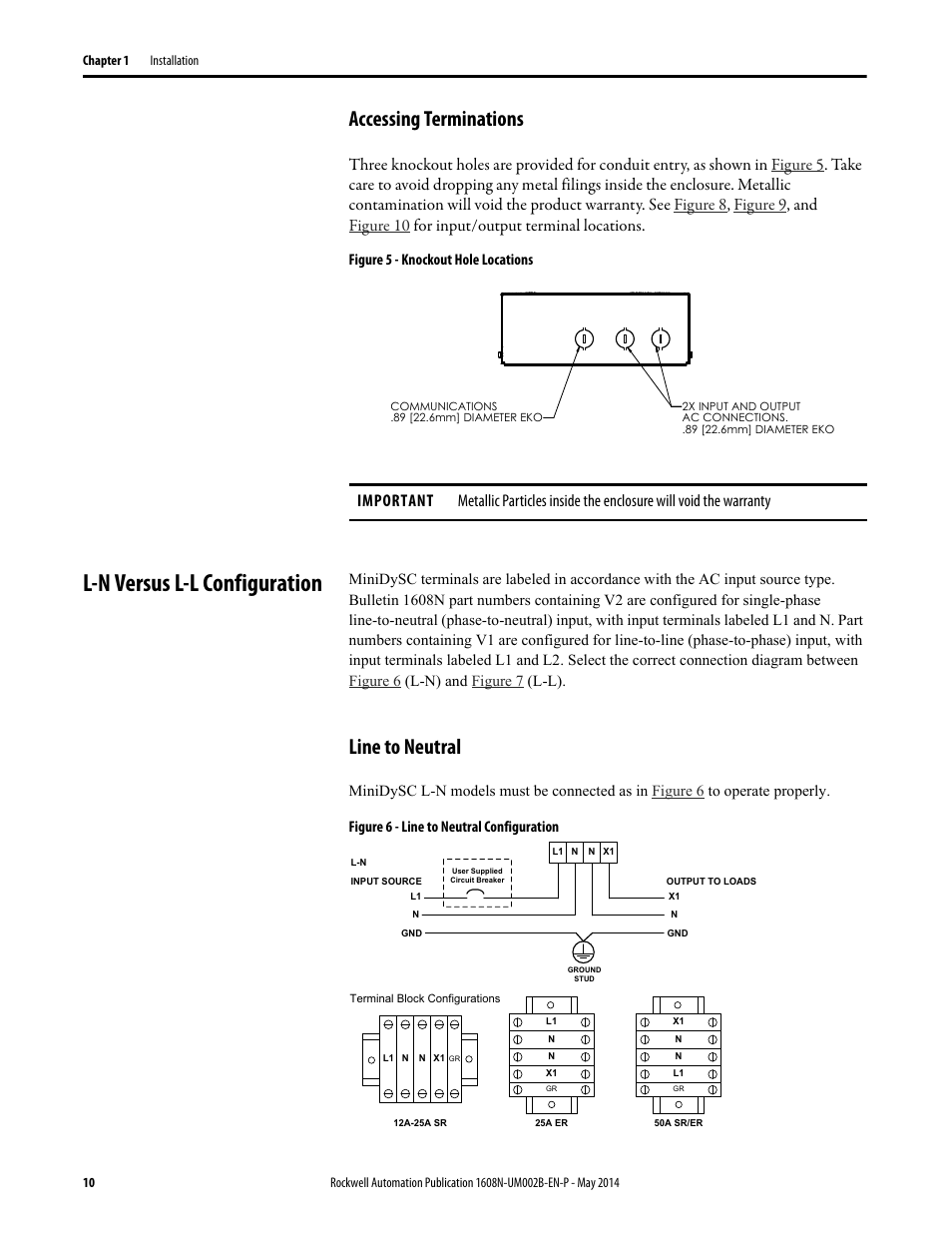

Accessing terminations, Figure 5 - knockout hole locations, L-n versus l-l configuration – Rockwell Automation 1608N MiniDySC User Manual, 12-50 Amp User Manual
Page 10: Line to neutral, Figure 6 - line to neutral configuration
