Installation and Wiring 3–5

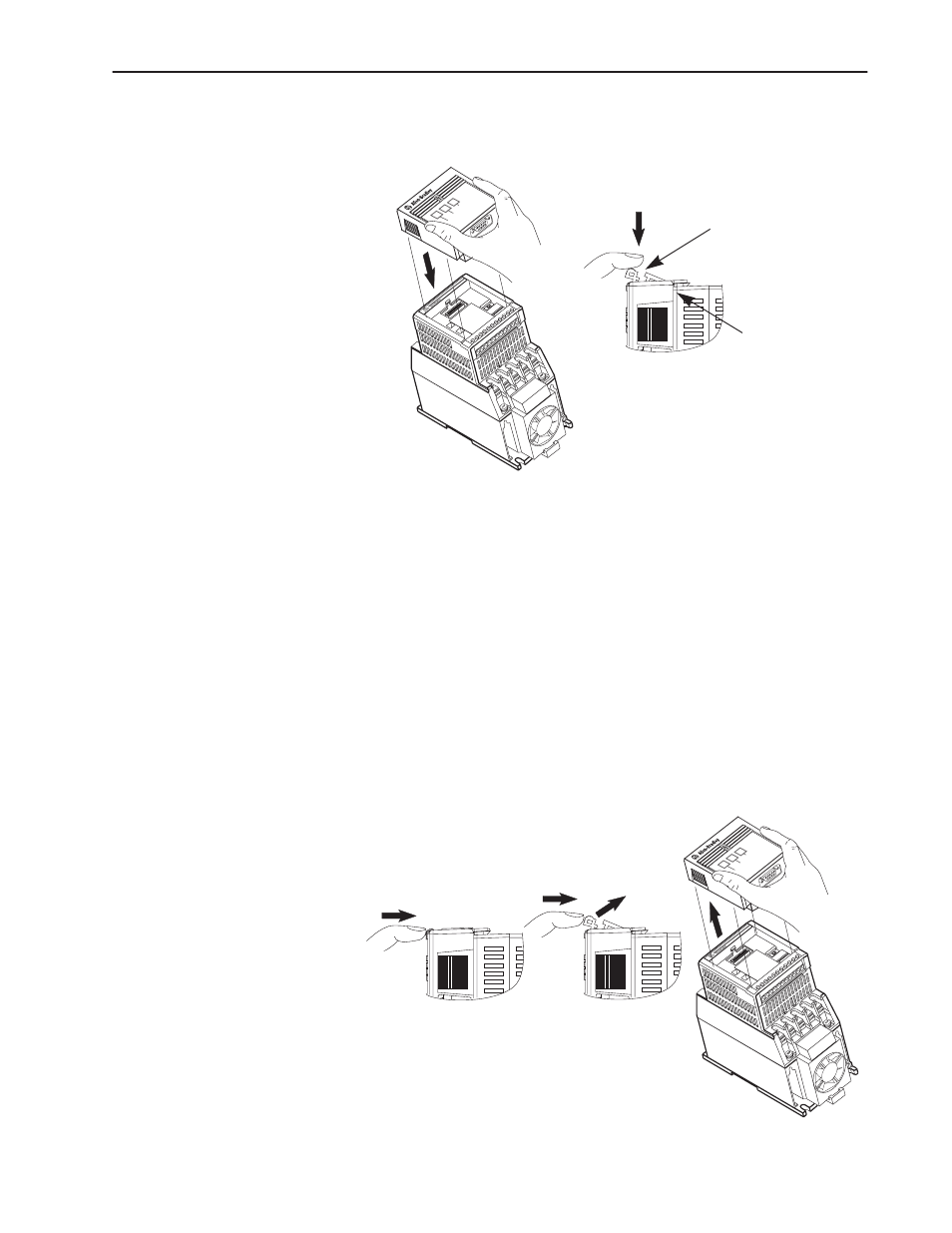

Figure 3.3
Communication Module Installation
Removing the RS1 Module
If you need to reconfigure the RS1 Module DIP switches, you must
remove the module from the drive.
1. Verify that all power to the drive is removed. Review Attention
statement on page 3–4.
2. Disconnect the cable/connector from the module (if present).
3. Press in on the module’s latch and then push away and up.
4. Grasp the module and pull straight up. Avoid bending or twisting
the contact pins located underneath the center portion of the
module.
Figure 3.4
Removing the Communication Module
1 2 3 4 5 6 7 8 9 10 11
T1 U
T3 W
– DC
+ DC
T2 V
FAULT
READY
RS232 Serial Comm
COMM
Latch must be in this position
before installation. Once installed,
push the latch down until it locks
into place.
Module should be flush
with top surface of drive
1 2 3 4 5 6 7 8 9 10 11
T1 U
T3 W
– DC
+ DC
T2 V
FAULT
READY
RS232 Serial Comm
COMM
