PowerFlex 700 Power Jumpers 5
Publication 20B-IN021B-EN-P
Fra
m
e
Vo
lt
ag
e
Code C
u
rrent
Ra
ti
ng

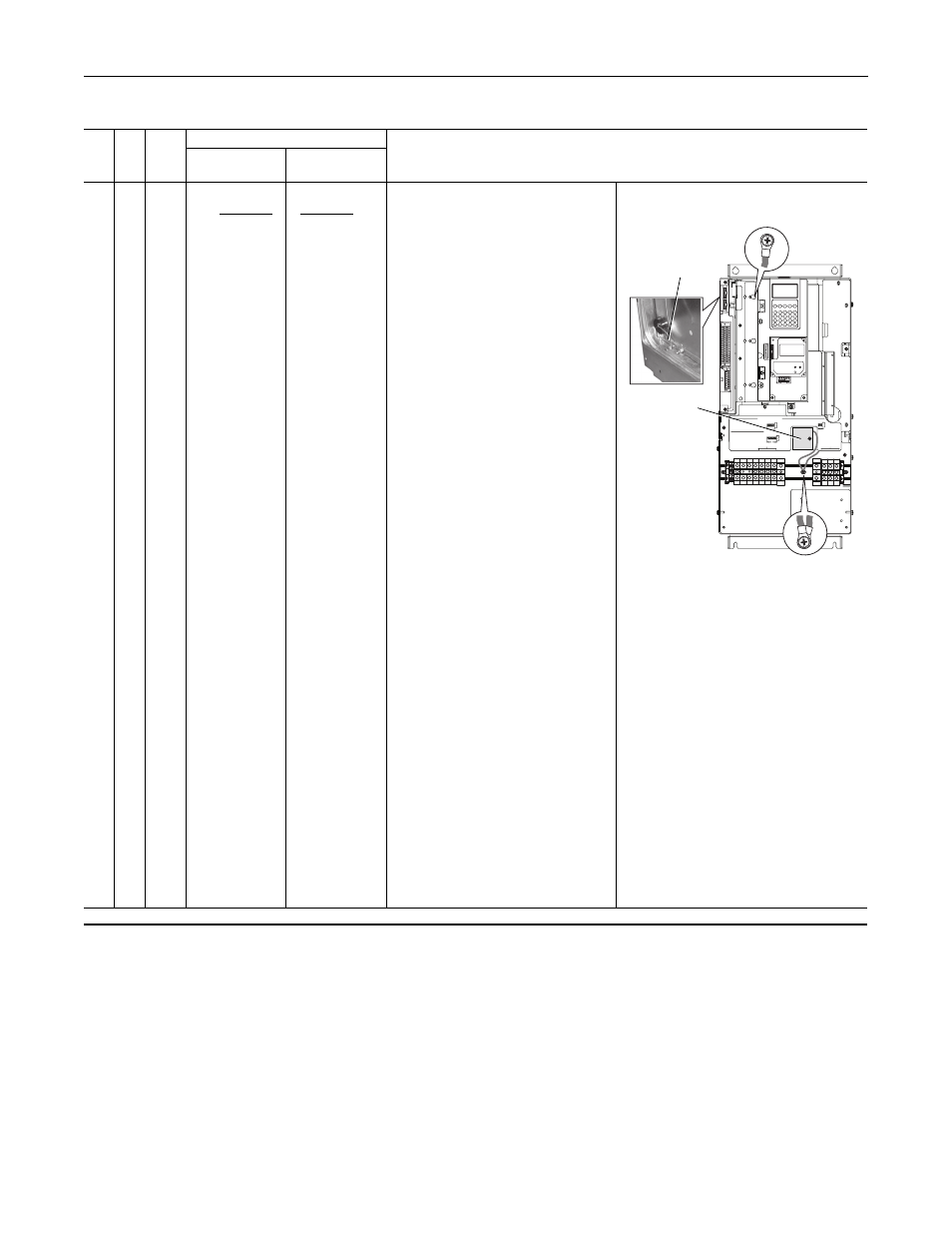

Factory Default Jumper Settings
Power Source Type
MOV/Input Filter
Caps
(1) (2)
DC Bus Common
Mode Caps
5 B
C
D
H
J
N
P
R
All
except
C140
Two green/yellow
wires connected
to the Power
Terminal Block rail Green/yellow wire
is connected to
ground Solid Ground
1. CM Cap jumper wire should be
connected to ground with a metal screw.
Verify.
• Newer Drives - If necessary, remove
the nylon screw/spacer and insert a
metal M5 x 8 screw. Torque to 3.2
N•m (28 lb•in).
• Older Drives - Remove the I/O
Cassette (see User Manual for
details). The green/yellow CM Cap
jumper wire is located on the back of
chassis and should be connected to
ground with a metal screw. If
necessary, remove the insulation
from the wire terminal and connect to
chassis with a metal M5 x 12 screw.
Torque screw to 3.2 N•m (28 lb•in).
2. MOV/Input Filter Cap jumper wires
should be connected to ground with a
metal screw. Verify. If necessary, remove
the nylon screw/spacer and insert a
metal M5 x 12 screw.
Non-Solid Ground
1. CM Cap jumper wire should be insulated
from ground. Verify.
• Newer Drives - If necessary, remove
the metal screw and insert a M5 x 15
nylon screw/spacer.
• Older Drives - Remove the I/O
Cassette (see User Manual for
details). If necessary, insulate/secure
jumper wire to guard against
unintentional contact with chassis or
components.
2. MOV/Input Filter Cap jumper wires
should be insulated from ground with a
nylon screw/spacer. Verify. If necessary,
remove the metal screw and insert a M5
x 20 nylon screw/spacer.
Frame 5 continued on next page
(1) AC input drives only. MOV’s and input filter caps do not exist on DC input drives.
(2) When removing MOV’s, the input filter capacitor must also be removed.
WIRE RANGE: 14-1/0 AWG (2.5-35 MM2)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
USE 75 C CU WIRE ONLY POWER TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (16-35 MM2)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM) GROUND TERMINAL RATINGS (PE)
300 VDC EXT PWR SPLY TERM (PS+, PS-) WIRE RANGE: 22-10 AWG (0.5-4 MM2)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
17
21 INPUT AC OUTPUT
Optional Communications
Module
9
CM Cap -
Older Drives
MOV / Input Filter Cap
MOV
CM Cap - Newer Drives
