Jumper installation, removal and storage, Insulating jumper wires, Drive identification – Rockwell Automation 20B PowerFlex 700 Power Jumpers User Manual

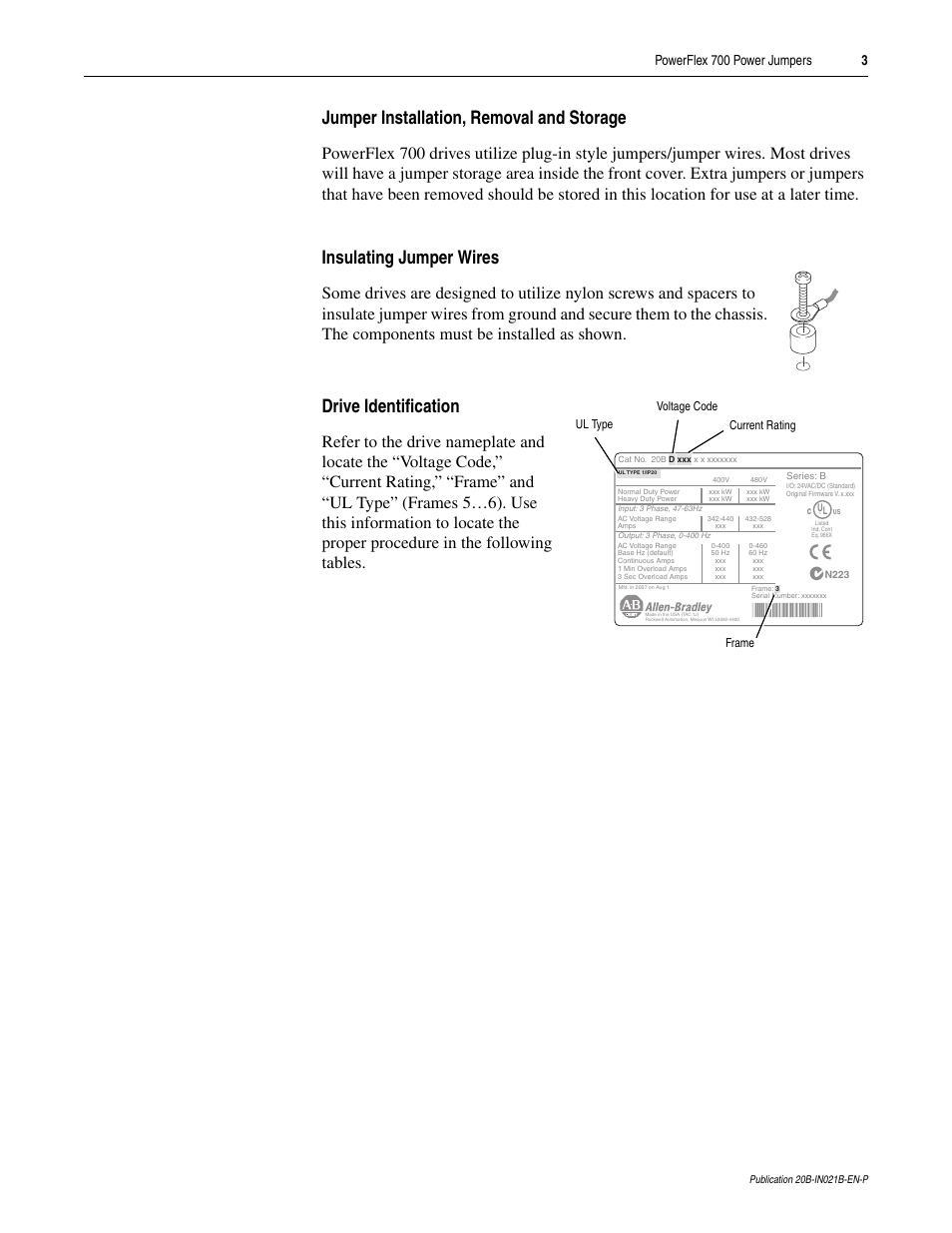

Page 3: Powerflex 700 power jumpers 3
