4
42CRC Color Registration Control
c. Transparent Web Material With Dark Opaque Mark
For this type of material, mount the control .5 (13 mm) above the web
surface and at a 10 to 15 degree angle to the perpendicular (75 to 80 from
the control to the web surface). A light colored plate or roller must be
mounted directly behind the transparent web material.
The control will see through the transparent web, sense the light colored
background providing the required contrast to the dark opaque registration
mark. See Figure 4.
42CRC Alignment

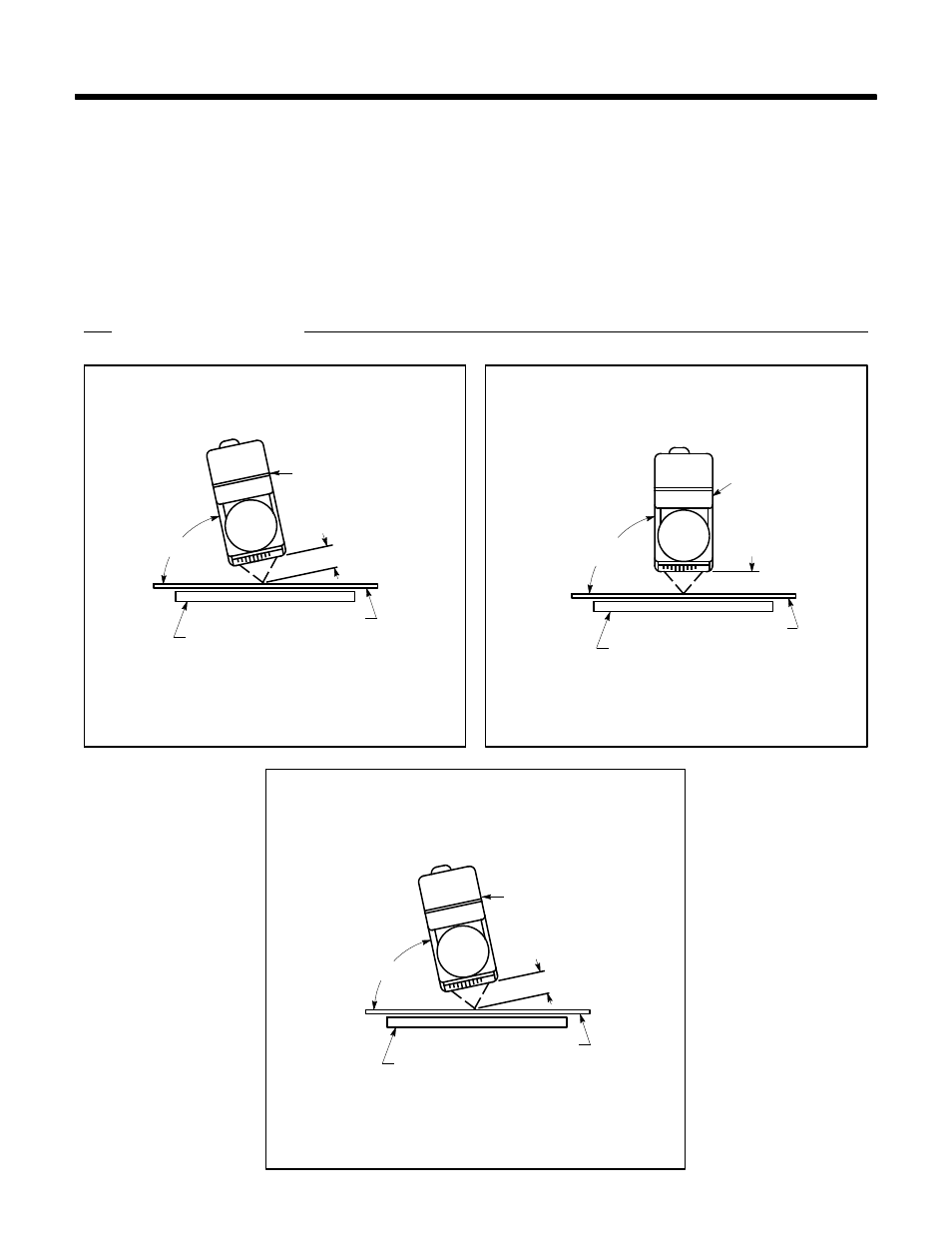

FIGURE 2 FIGURE 3
FIGURE 4
OPAQUE REFLECTIVE WEB MATERIAL
WITH LIGHT OR DARK REGISTRATION MARKS
42CRC
SCANNING DISTANCE
.5 (13mm)
WEB MATERIAL
PLATE
MOUNT THE 42CRC AT A 10 TO 15 DEGREE ANGLE
FOR REFLECTIVE (SHINY) WEB SURFACES.
75 TO 80
OPAQUE NON-REFLECTIVE WEB MATERIAL
WITH LIGHT OR DARK REGISTRATION MARKS
42CRC
SCANNING
DISTANCE
.5 (13mm)
PLATE
WEB MATERIAL
90
MOUNT THE 42CRC PERPENDICULAR TO THE WEB
FOR NON-REFLECTIVE (MATTE) WEB SURFACES
TRANSPARENT WEB MATERIAL WITH DARK
OPAQUE REGISTRATION MARKS
SCANNING DISTANCE
.5 (13mm)
TRANSPARENT
WEB MATERIAL
PLATE
MOUNT THE 42CRC AT A 10 TO 15 DEGREE ANGLE.
MOUNT A PLATE MADE OF A LIGHT COLORED MATERIAL
BEHIND THE TRANSPARENT WEB MATERIAL.
75 TO 80
42CRC
Alignment
(Continued)
