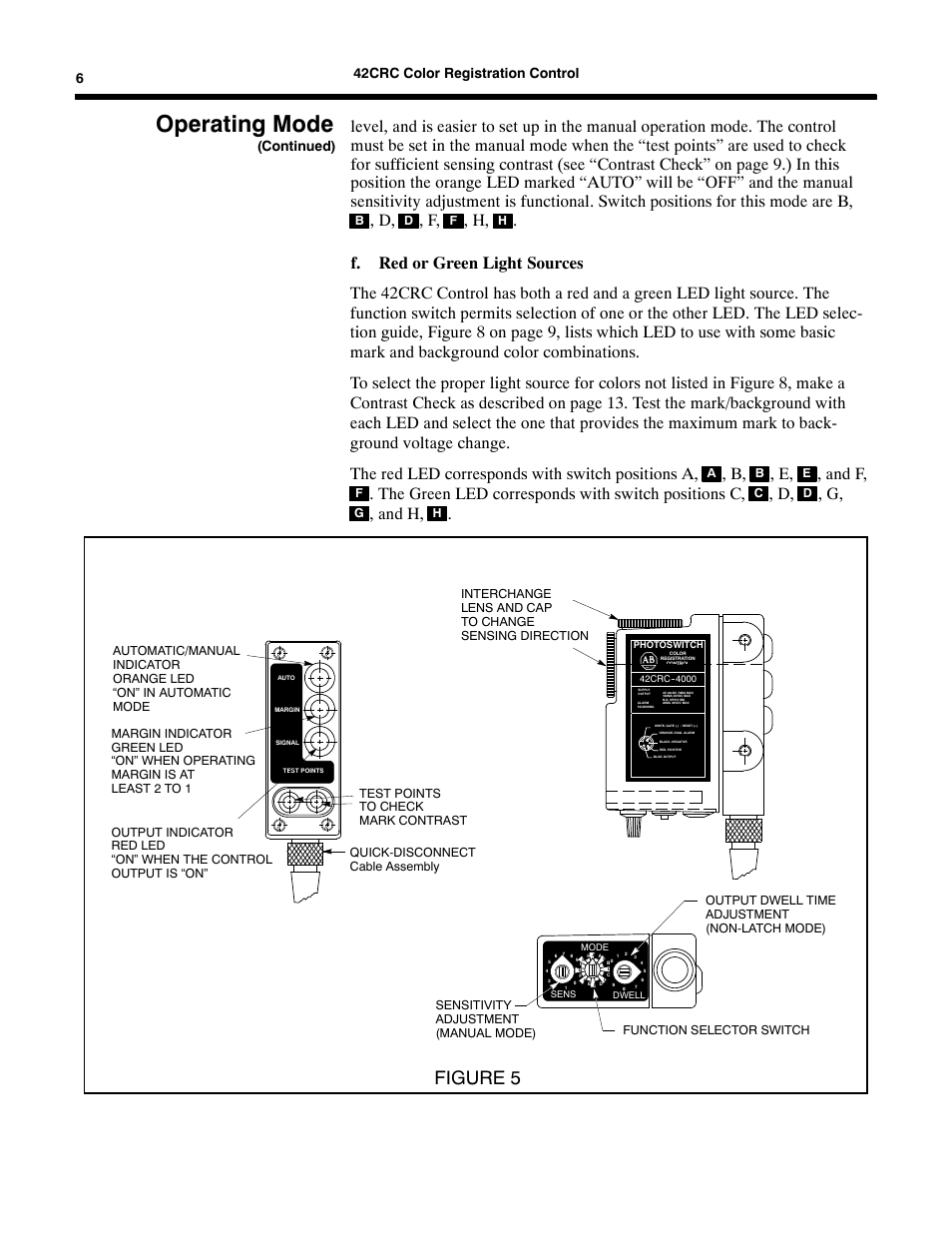

Operating mode, Figure 5, And f – Rockwell Automation 42CRC Color Registration Control User Manual
Page 8: The green led corresponds with switch positions c, And h, 642crc color registration control, Continued)
