5
Requirements for Installation

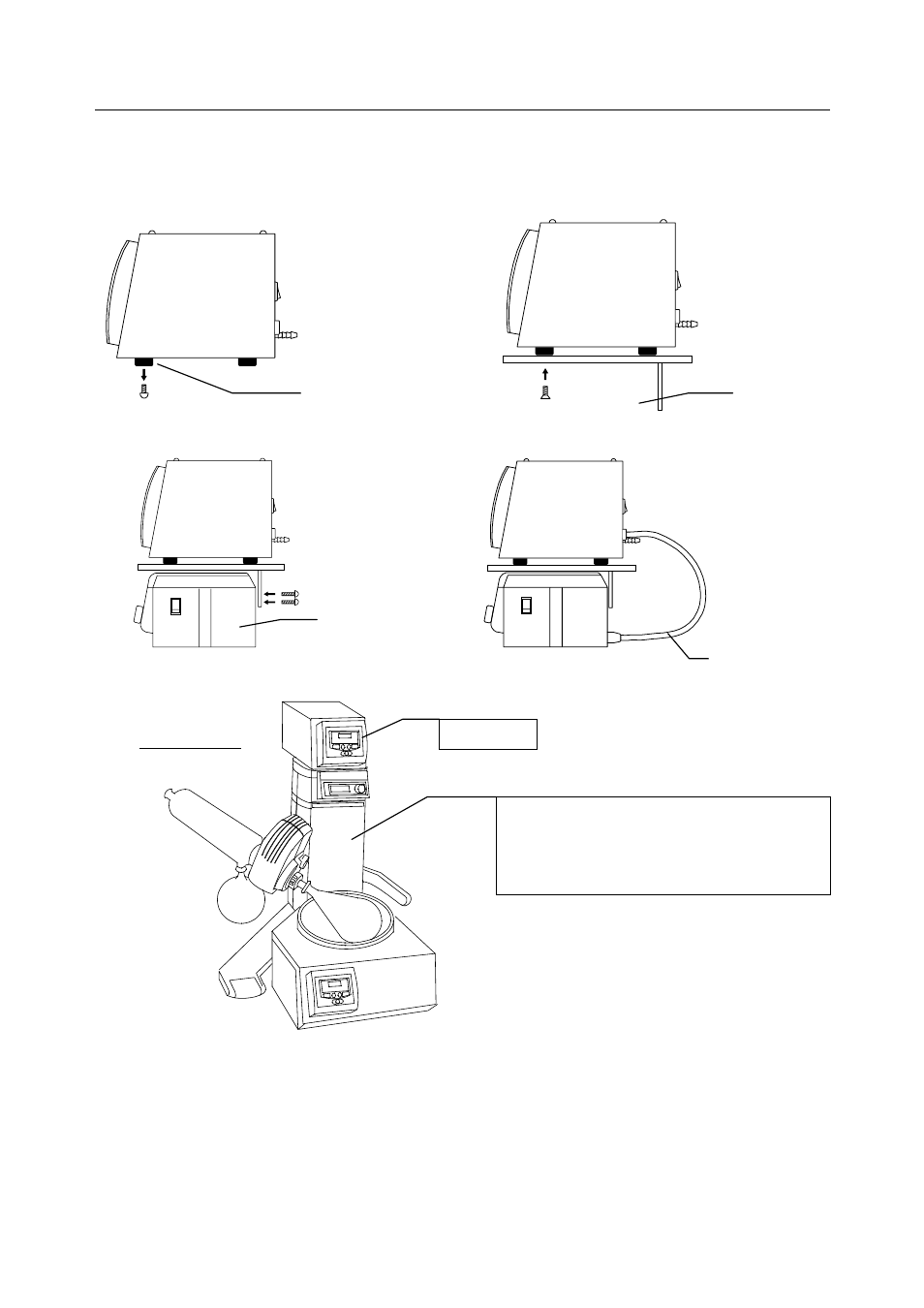

Installation to Rotary Evaporator RE400/500/440/540
1. 2.
Unscrew the
screw which fix
the rubber-leg of
the body.
Fix the metal
fixture
provided as
standard
accessories
with flat-head
screws.
3. 4.
Fix the metal
fixture to the
rear of the
control unit with
four screws.
Put the
power plug of
the vacuum
regulator in
the outlet at
the rear of
the control
unit.
5.
Rubber leg Metal Fixture
Control Unit of
RE400/500
Power Cord Plug
VR100
RE400/500/440/540
Being the auto lift style, the body-outlook of
RE440/540 is not the same as the drawing on the
left.
Finished View
