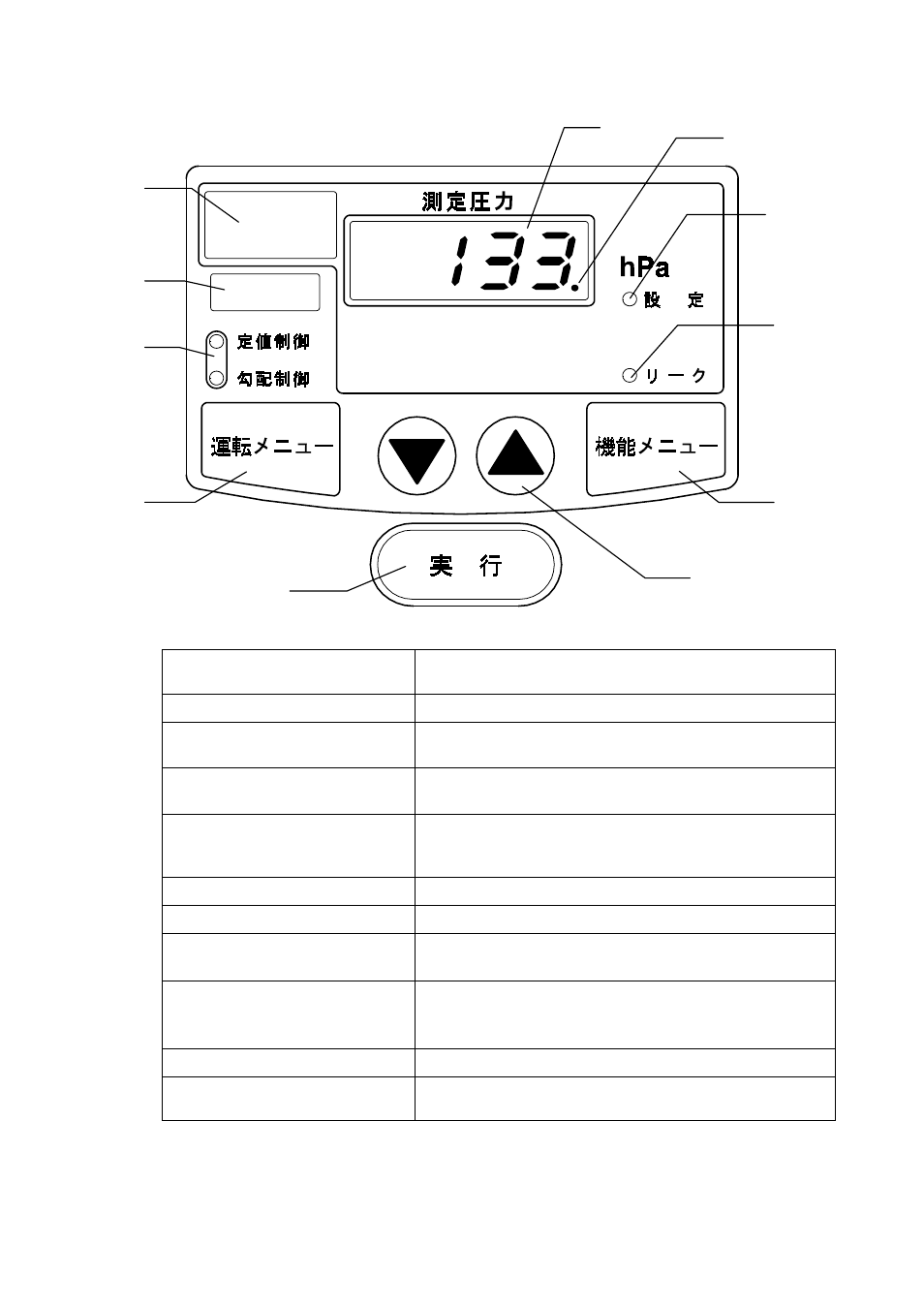

Control Panel
① Main Display:
Displays measurements, set points (indicated as ~hPa),
literal informations in the ramp control editing, etc.
② Solenoid Valve Lamp (LED):
Lit while the solenoid valve for control opens.
③ Blind Window:
Indicates a blinking ｢異常｣(Means TROUBLE) when an
abnormality occurred.
④
Edit Mode Display Lamp
(LED)
Lights up ｢編集｣(Means EDIT) when the edit mode is
selected.
⑤
Operation Mode Display
Lamp
indicates a selected operation mode. It is lit while
operation, and blinked in the set mode and the edit
mode. Nothing is indicated in the free mode.
⑥ Set Mode Display Lamp
lit when settings and edits are done.
⑦ Leak Lamp
lit while the leak valve opens.
⑧ Operation Menu Key
used to select one of the following operations.｢the fixed
value control｣,｢the ramp control｣,｢the free mode｣
⑨ Function Menu Key
used to select the function; ｢ the measurement
calibrating mode｣in the fixed value control and ｢the
edit mode｣ in the ramp control.
⑩ Up/Down Key
used to change the set point.
⑪ Enter Key
used to decide or input set points and modes, such as
operation, calibration, edit.
