BASIC SETTINGS AND TASKS
23 MY NET AC1300 ROUTER
USER MANUAL
Adding a Device
To connect a WPS-enabled wireless device, press the WPS button on the front of the router,
or enter a PIN on the device’s Wi-Fi connection page. If the device is not capable of WPS,
you can still connect it to the router using a network name and password.
To connect a WPS-enabled device:

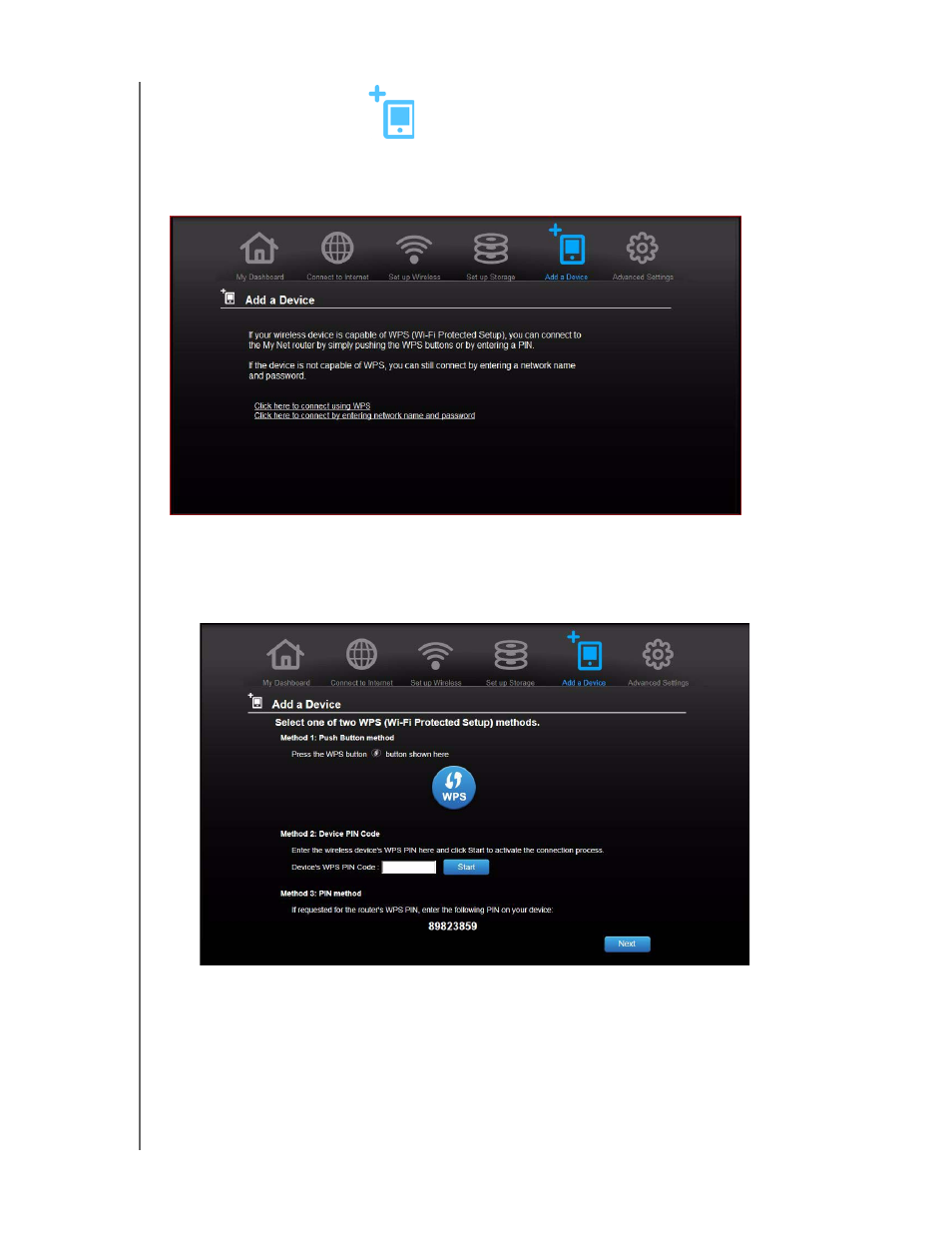

1. Click the Click here to connect using WPS link to display the screen shown below:
2. Select one of three WPS methods:
„ Method 1: Click the blue WPS button on the screen. On your wireless device, press
the physical WPS button or click the virtual WPS button.
„ Method 2: Enter the device’s WPS PIN code and click Start.
„ Method 3: If prompted by your wireless device, enter the router’s WPS PIN shown on
the screen into your wireless device.
