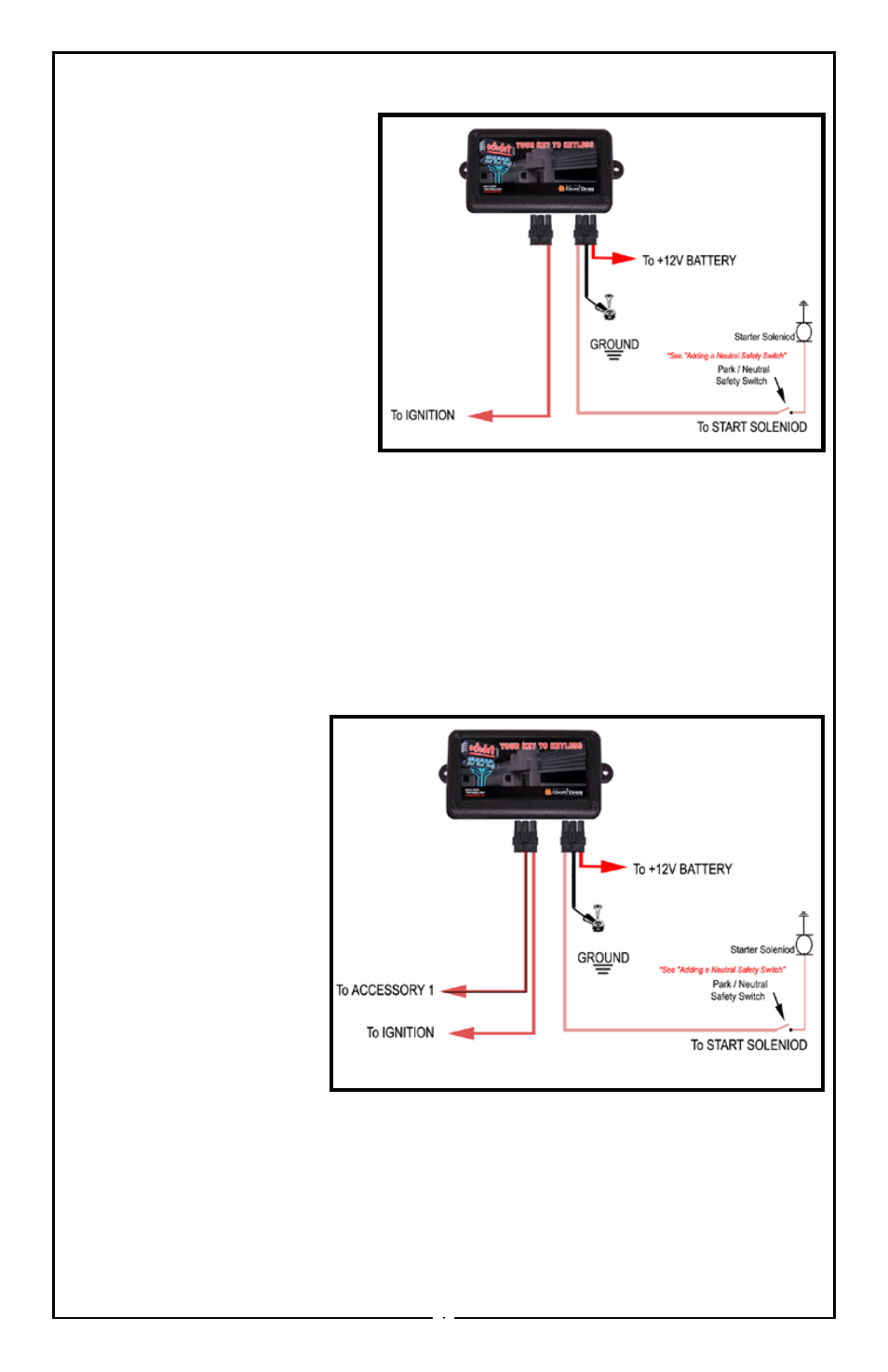

type 1:

3 Wire simple dash mount.

In the Type 1 configuration

both the IGNITION* and ve-

hicle Accessories activate the

moment the Start button is

depressed and remain pow-

ered during the entire time

the starter is “Cranking”. This

configuration works fine on

most basic three wire Ignition

systems.

type 2:

Gm, Ford, Chrysler, etc. existing ignition column

In the Type 2 configu-

ration the IGNITION*

circuit activates the mo-

ment the Start button is

depressed, but the AC-

CESSORY #1 circuit

switches “OFF” during

the time the starter is

“Cranking”, reducing the

battery load and provid-

ing more amps for start-

ing. Use this to turn off

Air condition or other cir-

cuits unnecessary dur-

ing starter cranking. Ac-

cessory #1 powers ON when the Start button is released.
