L390E-2 / HZI390E-2 Direct Vent Gas Insert

21

installation

919-019b

12/20/12

2

L390E / HZI390E

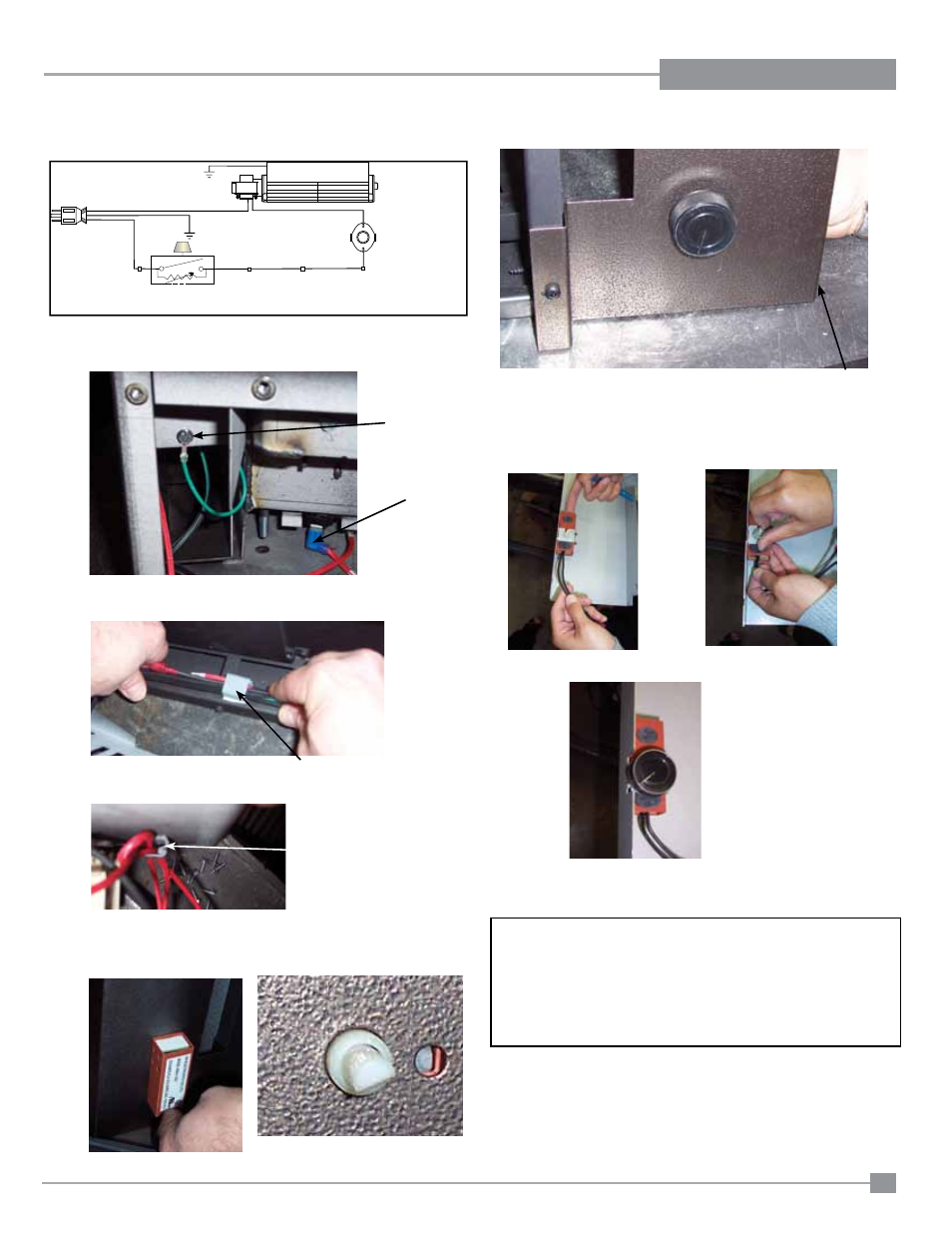

9. Install fan control box through the backing plate of the faceplate (see

installation instructions in this manual to install on unit. Secure the knob
in the front of the faceplate with a washer and a bolt.

WARNING
Electrical Grounding Instructions

This appliance is equipped with a three-prong (grounding) plug
for your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle. Do not
cut or remove the grounding prong from this plug.

10. Install the knob cover over the knob.

11. Reverse Step 1.

12. Attach power cord to side of faceplate with grommet.

Diagram 9

Diagram 10

Side of faceplate

8. Bundle wires together and secure to the unit with a wire clip, one at the

base of the side access and one on the back of the fan access panel.

Diagram 8a

Diagram 8b

Back panel

Clip

Side Access

Clip

7. Secure the green ground wire to the ground lug on the unit, just left of the

thermodisc location - see Diagram 8 below.

Ground wire

Thermodisc

Diagram 7

Note: Ensure that the two wires that go to the fan control box go through

the grommet installed in Step 6.

Ground

Green

Neutral

Live

Black

Red

Fan Thermodisc

(normally open)

Ground

ON

OFF

Fan Speed

Controller

120V AC

60 Hz

Fan

Black

Black

Red

Black
