24

Regency HZ33CE Gas Fireplace

INSTALLATION

16

2

4

6

8

10

12

14

2

0

0

12

20

6

14

30” (762mm) / 26” (660mm) when using flex
Minimum
Height
Requirement

4

8

10

18

18

16

V

ertical

Height

(Feet)

Horizontal (Feet)

8"(0.2m)

2’ (0.6m)

RIGID PIPE VENTING ARRANGEMENTS

Horizontal Terminations

REGENCY

®

DIRECT VENT SYSTEM (FLEX)

(Propane & Natural Gas)

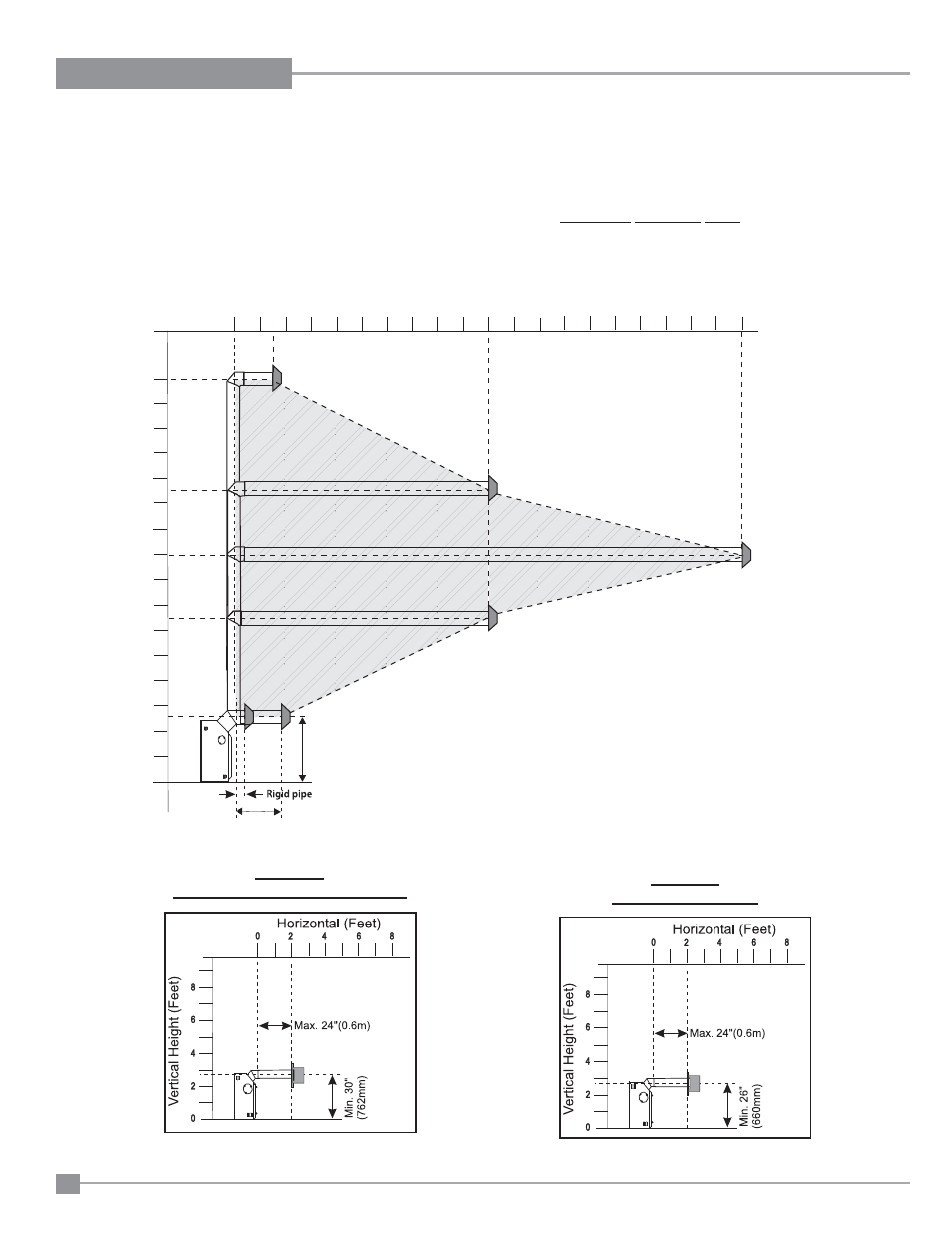

This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45

o

and one 90

o

elbow (two 45

o

elbows equal one 90

o

elbow).

Note: Must use optional rigid pipe adaptor (Part # 510-994. when using rigid pipe vent systems. (Refer "Rigid Pipe Venting Systems" Section)

• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each fl oor level and whenever passing through a wall.

A vent guard should be used whenever the
termination is lower than the specifi ed minimum
or as per local codes.

Note: Regency

®

Direct Vent System (Flex)

is only approved for horizontal
terminations.

Minimum

Simpson Dura-Vent Center-Line

Minimum

Flex Kit Center-Line
