Axle Pro Equipment Instruction Guide
For your protection, use Standard Shop Safety Procedures during this process
Page 16 of 24 01 577 0092 SEPT 2011
Photo 8C

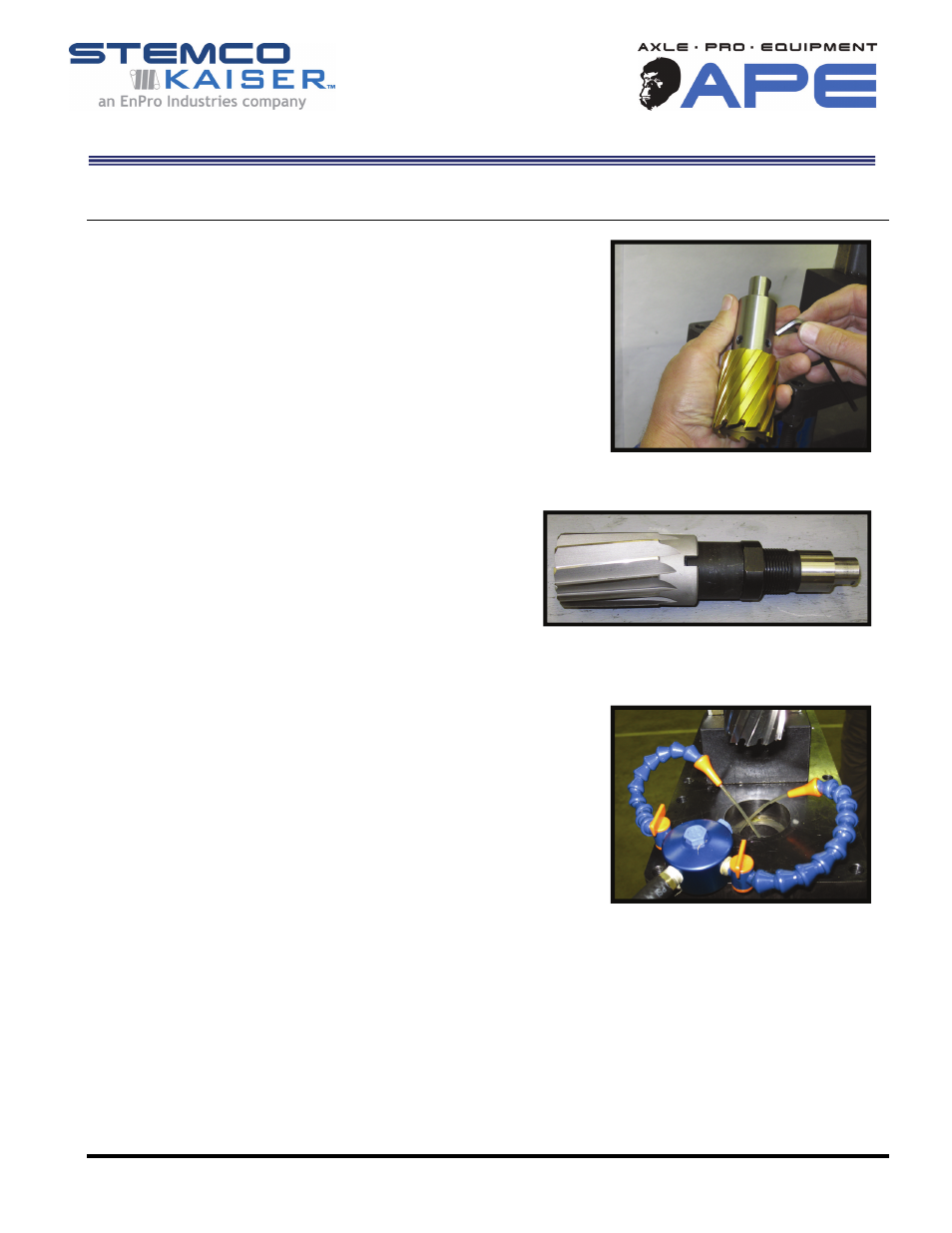

Step 8: Second Pass Reaming Process
a.
DO NOT DISENGAGE MAGNET!
b. Remove cutter from drill motor. (Photo 8A)
c. Install mounted reamer into drill motor using
Allen wrenches. (Photo 8B)
d. Turn coolant on to ensure steady flow into axle
throughout reaming process. (Photo 8C)
e. Begin reaming process being careful to start slowly
Continue reaming with slow constant feed & do not stop
and clean reamer
. (Reaming process should take 5 to 7
minutes, too fast or too slow can damage reamer and
negatively affect accuracy).
f. After reaming is complete, raise reamer; turn off drill, coolant & magnet. Remove drill from
upper plate.
Photo 8A
Photo 8B
