Axle Pro Equipment Instruction Guide
For your protection, use Standard Shop Safety Procedures during this process
Page 12 of 24 01 577 0092 SEPT 2011

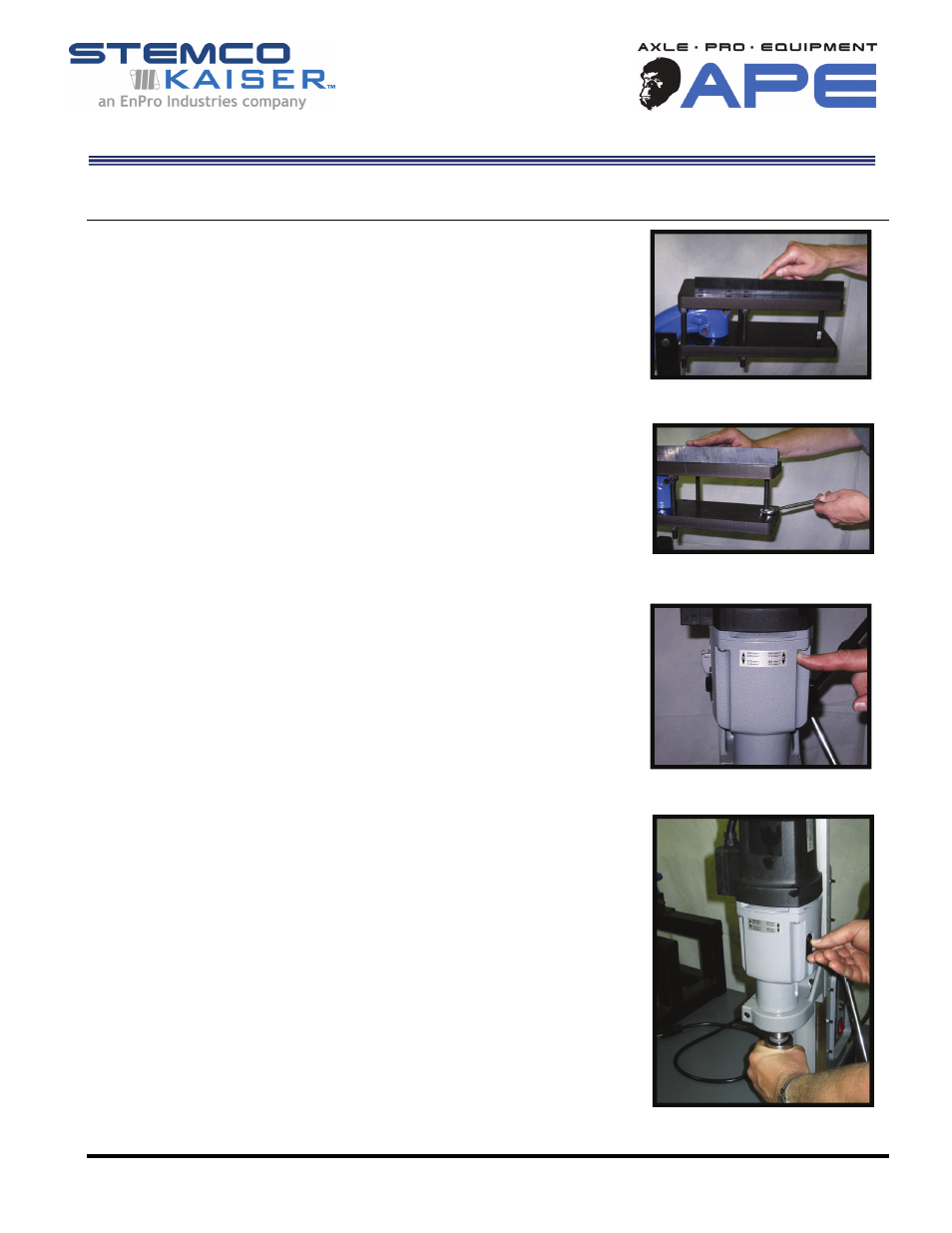

Step 4: Leveling Bar & Drill Speed Setup
a. Place narrow edge of leveling bar against upper plate
(See Photo 4A)
b. Using leveling bar to test upper plate for flatness. Look for light
under the bar or the bar rocking end to end. Adjust if needed
with either the nut below lower plate or the nut above lower
plate on the adjusting rod. (See Photo 4B)
It is crucial to drilling accuracy that plate be properly adjusted.
c. Set proper drill speed: All holes are to be cut at 110 RPM .
(See photo 4C)
d. Find switches as seen in photo 4D and put in proper position
to ensure accurate drilling.
Photo 4A
Photo 4B
Photo 4C
Photo 4D
