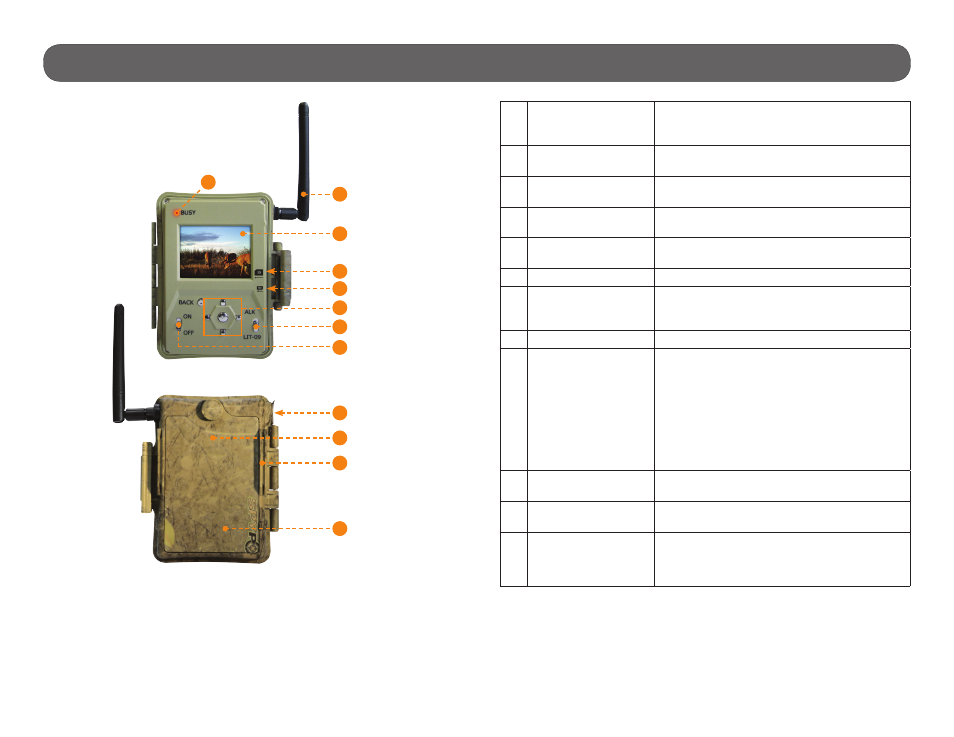

Components • Controller
(BLACKBOX-4G)
1 BUSY LED Lights up when the controller records a file,
transfer photos or searches for the cellular
signal.
2 Antenna Allows wireless communication between the
controller and the camera(s).
3 Viewing screen Allows the user to access the main menu, see
battery level and view photos.
4 SD card slot An SD card is required to record photos
(p.16).
5 SIM card slot A SIM card is required for cellular functions
(p.16).
6 Navigation buttons Buttons to set the controller (p.28).
7 Battery switch Allows the user to select the power source
according to the type of batteries used
(p.12).
8 ON/OFF Allows the user to turn on/off the device.
9 1)12V power jack
2)Solar panel jack
1)The controller can be powered from an
external 12-volt DC input such as a 12V
battery or a 12V adapter, each sold
separately (p.44).
2)Allows the user to connect a solar panel
(SP-12V) to maintain the charge of the
lithium battery pack (LIT-09/LIT-C-8), sold
separately.
10 Battery case Case for AA batteries or a rechargeable lithium
battery pack (p.12).
11 Slot for installation
strap
Allows the user to install the controller using
the installation strap included (p.28).
12 Access to the time
battery (located
inside the battery
case)
Battery that keeps the time and date in
memory (p.13).
