21
Chapter 2: system Configuration
sages to all profiles at priority level 1. Then it will wait the duration of the Escalation Delay and send
messages to priority level 2, as long as the alarm still exists, and so on with priority 3, 4, 5,…. If the
alarm no longer exists, those profiles who have higher escalation levels will not be contacted.
The Summary Mode lets you choose the way in which the bar graph on the summary page appears.
There are two modes of operation: Arrow Mode and Bar Mode. The Arrow Mode displays an arrow next
to the bar graph which corresponds to the current value. White lines are used to mark the minimum
and maximum levels. The normal range will be displayed with a green background, alarm ranges will be
displayed in red. The Bar Mode differs in that the value is indicated by the top of the colored bar. The
bar will be green if the value is in the normal range. It will turn yellow if the value gets within 10% of the
alarm limits and it will turn red when the value is beyond the alarm limits. The range of the bar gauge
can be configured in the Zone programming screen.

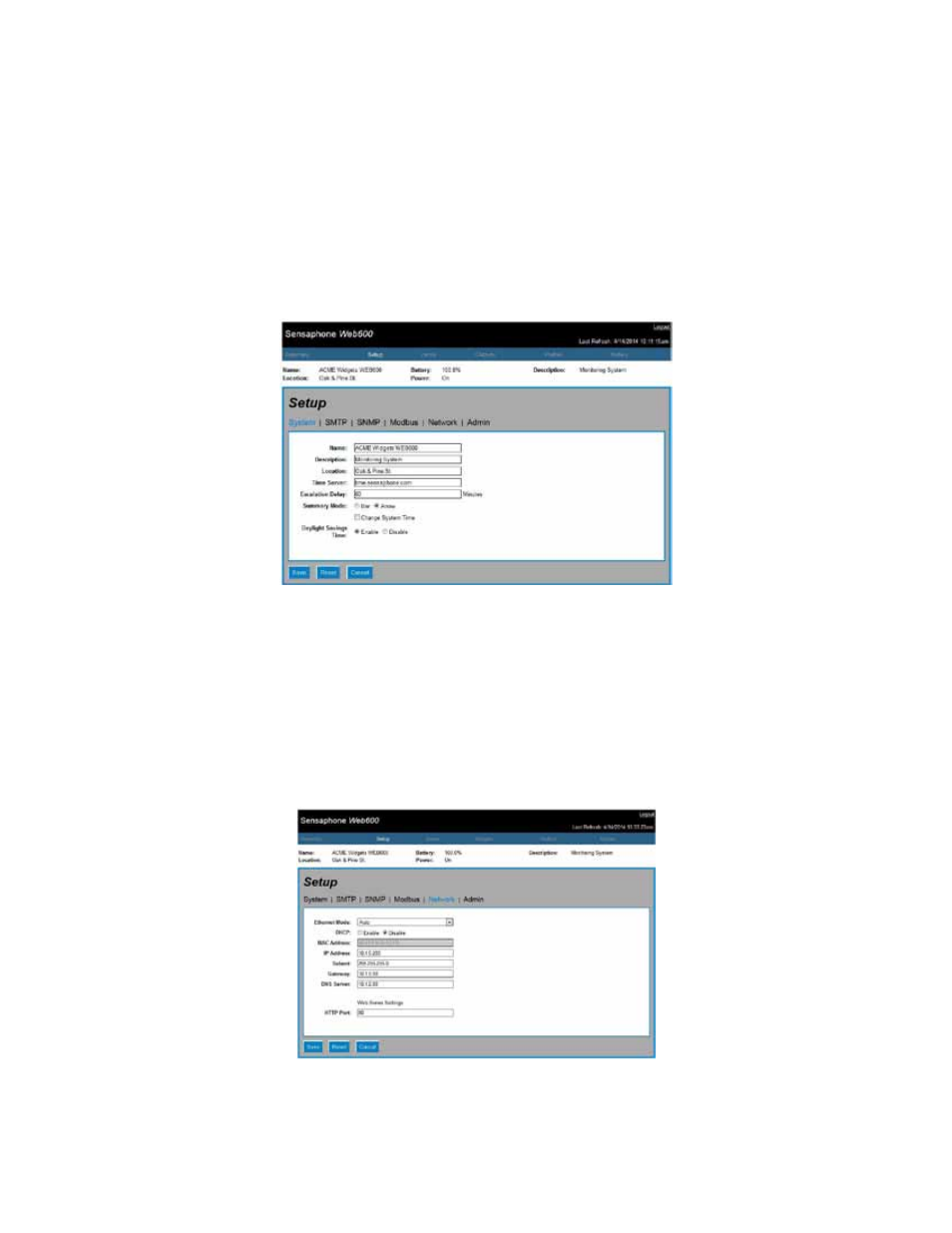

System setup screen
network
The Network Settings page allows you to view and configure all parameters associated with accessing the
device via the Ethernet port. (see Network Configuration in chapter 1 for details). This screen also dis-
plays the device MAC address and lets you configure the web page port number. Note that if you change
the port number to anything other than 80 (default) you will be required to enter the port number as
part of the device address in your browser (e.g xxx.xxx.xxx.xxx:### where x’s represent the ip address
and #’s represent the port number).
