PM180 Substation Automation Unit 13
2.2.12 Network Communication options
ETHERNET 10/100Base TX and 100FX
The PM180 provides one 10/100TX Ethernet communication port in the CPU module and a redundant Ethernet
wire line/fiber 10/100TX/100FX Ethernet communication port in the TXFX module, as shown in Figure 2-16.
TXFX Module restrictions:
• The TXFX module is supported by the PM180 from firmware version: V31.XX.8
• Only one TXFX module can be installed in the PM180. It must be plugged in at the first optional slot right
after the CPU module.

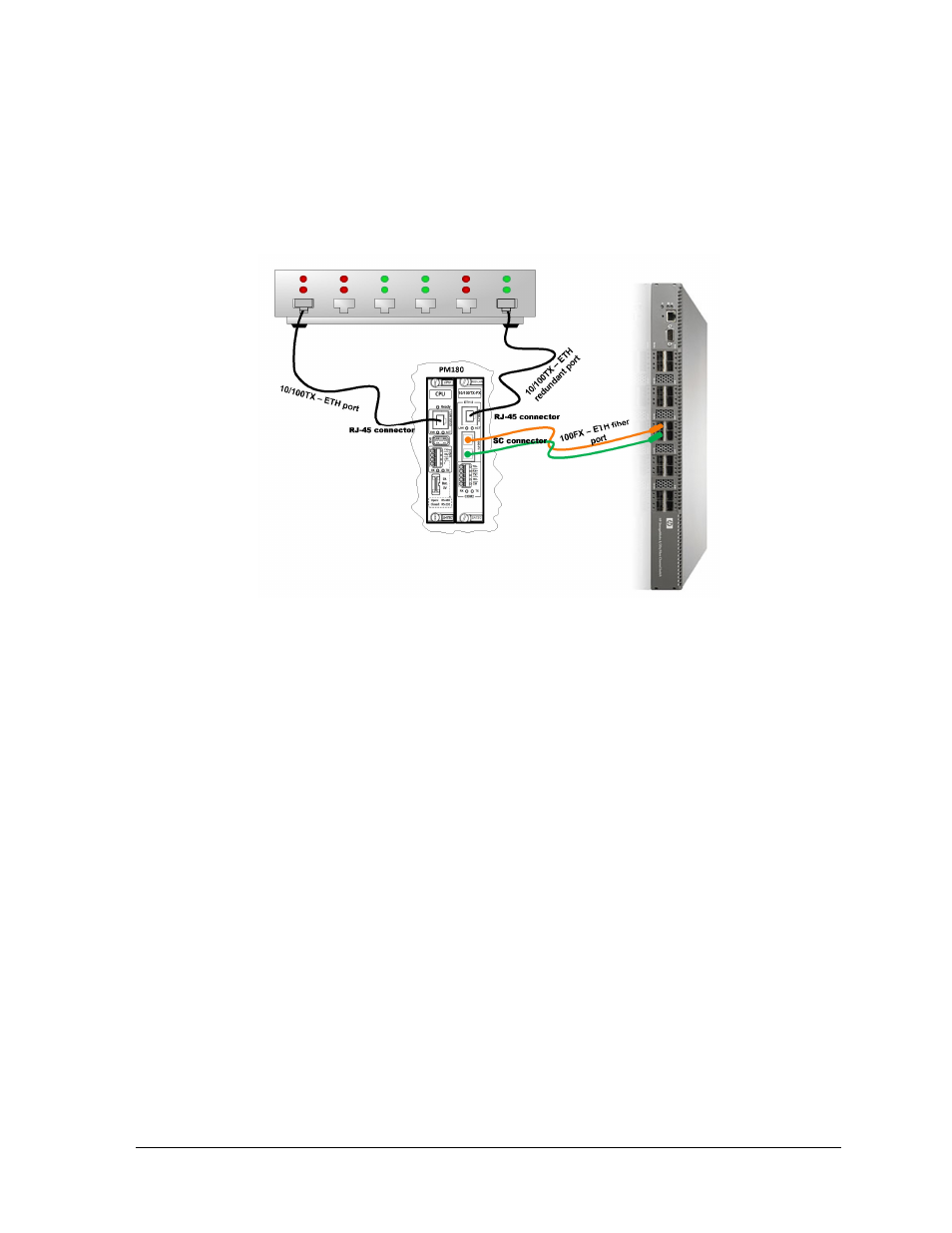

Figure 2-16 ETHERNET port Connection – RJ45 and SC
