4.0 INSTALL THE MODULES
Eighteen mounting brackets are provided with each chassis to secure the miConverter modules in the chassis. Attach the
mounting bracket to the miConverter module using the flat head screw provided (see Figure 7 below).

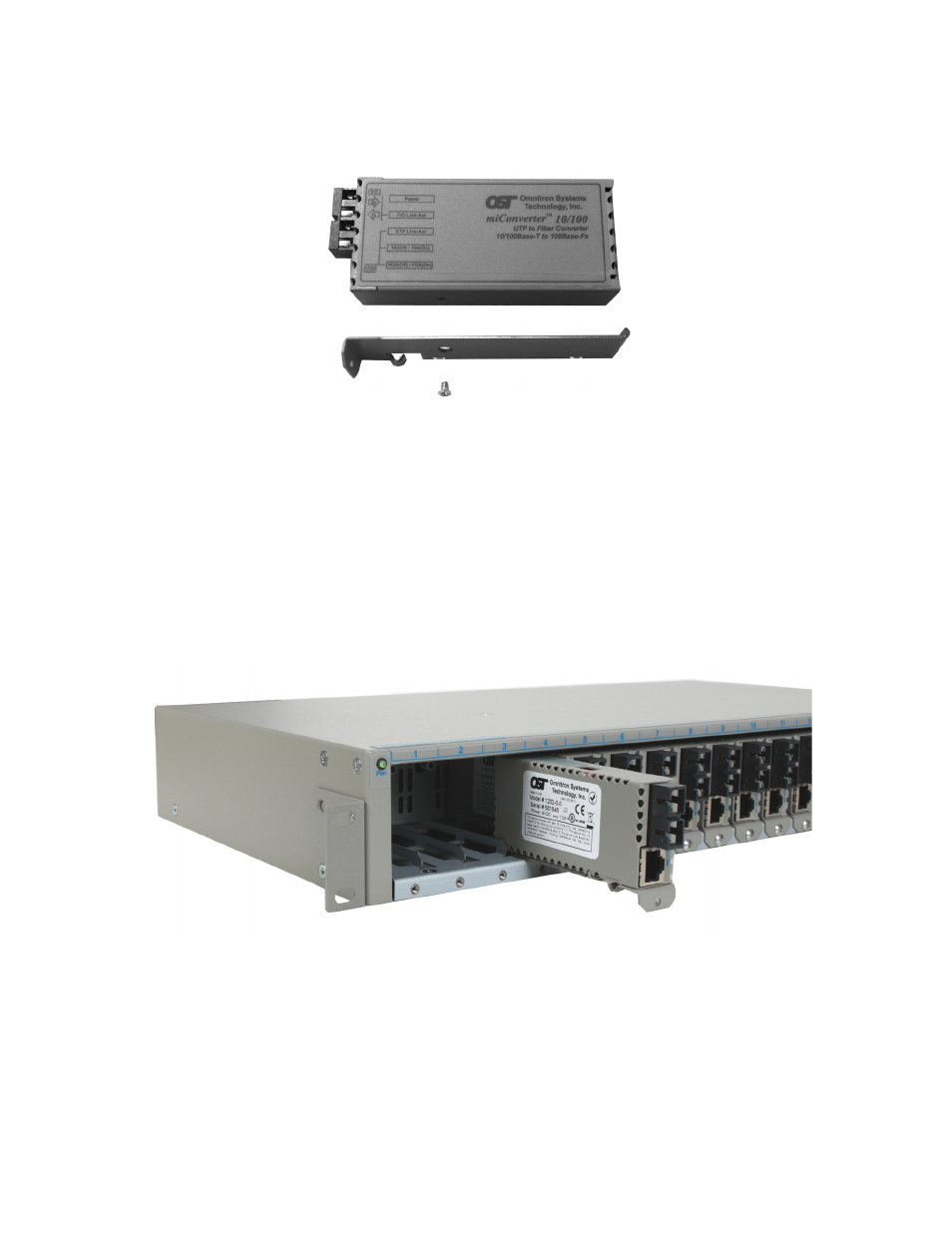

Figure 7: Module with Mounting Bracket
The chassis provides guides/rails to assist with the insertion of a miConverter module. Align the module with the barrel connector
towards the chassis and facing up (mounting bracket tab down). Slowly insert the module with a slight upward motion to allow
the mounting bracket to clear the button lip of the chassis. Continue inserting until the barrel connector on the chassis inserts into
the module and the mounting bracket is flush with the bottom lip of the chassis. Secure the module to the chassis by attaching
the mounting bracket to the bottom lip of the chassis using the pan head screw provided.
NOTE: The chassis only supports miConverter modules powered through the barrel connector. miConverter modules
with terminal block connectors are not supported.
NOTE: The miConverter S-Series is not compatible with the chassis.
NOTE: Remove any rubber feet from the module before installing it into the chassis.
Figure 8: Module Insertion
To remove the miConverter module, remove the screw from the mounting bracket, tilt up on the module and slide the module
out of the chassis.
5.0 VERIFY OPERATION
The chassis provides a POWER LED located on the front left top corner of the chassis. When the POWER LED is solid green,
the chassis is powered.
