1.0 PRODUCT OVERVIEW
The miConverter 1.5U (2.5 inch) 18-Module Power Chassis is powered by an AC or DC power supply and can accommodate
up to eighteen miConverter media converters. This compact chassis is ideal for consolidating individual media converters into
a high-density form factor utilizing a single reliable power supply. The chassis can be rack mounted in a 19” or 23” equipment
rack.

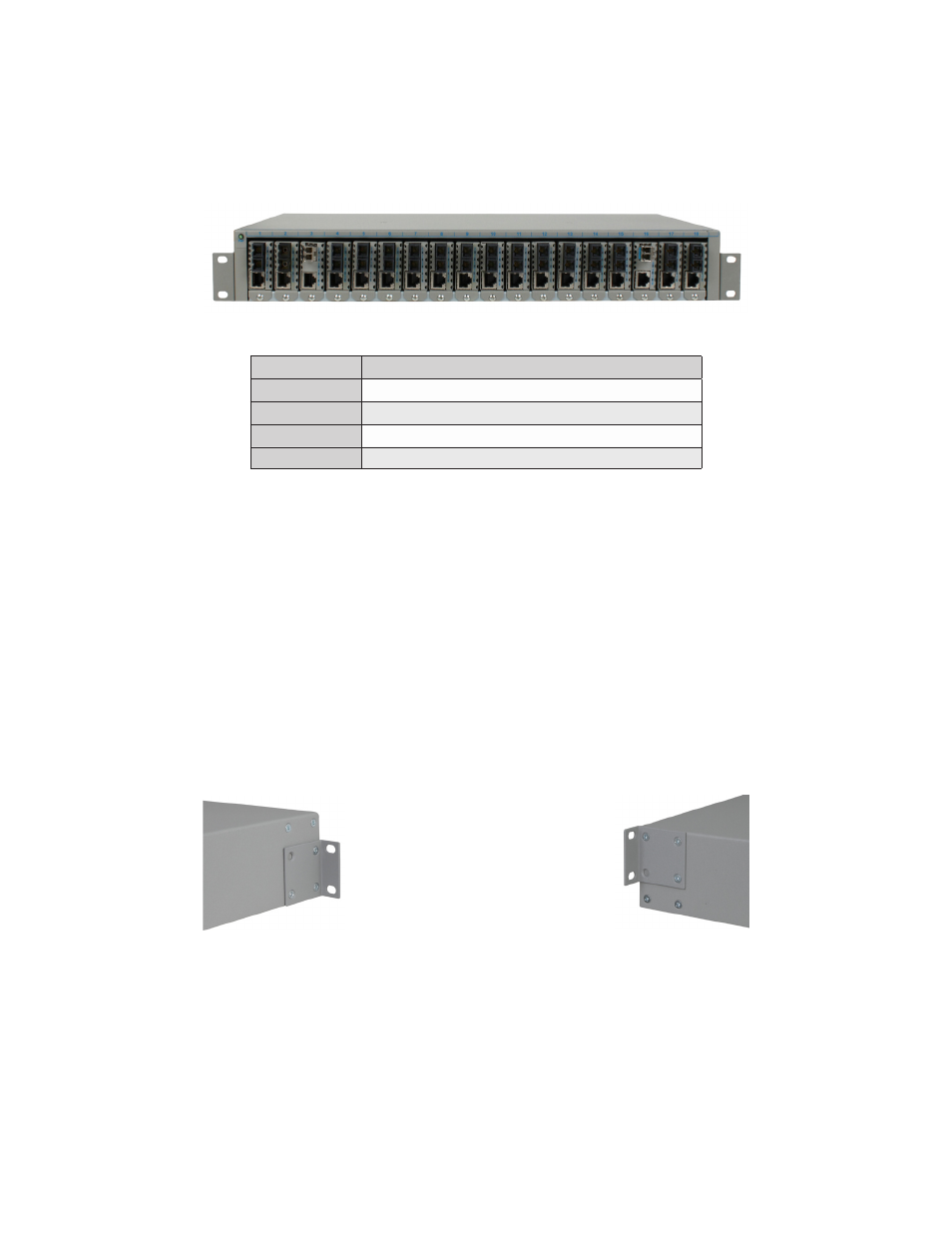

Figure 1: miConverter 18-Module Power Chassis
Model Number Description
1020-1 miConverter 18-Module AC Powered Chassis
1025-1 miConverter 18-Module 48VDC Powered Chassis
1026-1 miConverter 18-Module 24VDC Powered Chassis
8092-0 23” rack mount brackets for 18-slot chassis
2.0 INSTALLATION PROCEDURE
2.1 OVERVIEW
The following steps outline the installation procedures for the miConverter Power Chassis. Refer to the specified section for
detailed instructions.
• Install Power Chassis (Section 3.0)
• Install the Modules (Section 4.0)
• Verifying Operation (Section 5.0)
3.0 INSTALL POWER CHASSIS
3.1 RACK MOUNTING
When rack mounting the chassis to a 19” standard rack, first attach the two enclosed “L” shaped rack mounting brackets to the
chassis using the enclosed screws. The rack mounting brackets can be attached to the chassis using two different hole patterns,
depending on the mounting requirement. The different hole patterns will allow two chassis to be installed in a 3U rack space.
Figure 2: Lower Rack Mount Position Figure 3: Upper Rack Mount Position
Mount and attach the chassis (after the mounting brackets are installed) to the rack using the appropriate rack mounting screws
(not provided). For optional 23” rack mounting, attach the mounting bracket in the same manner as shown above.
