application

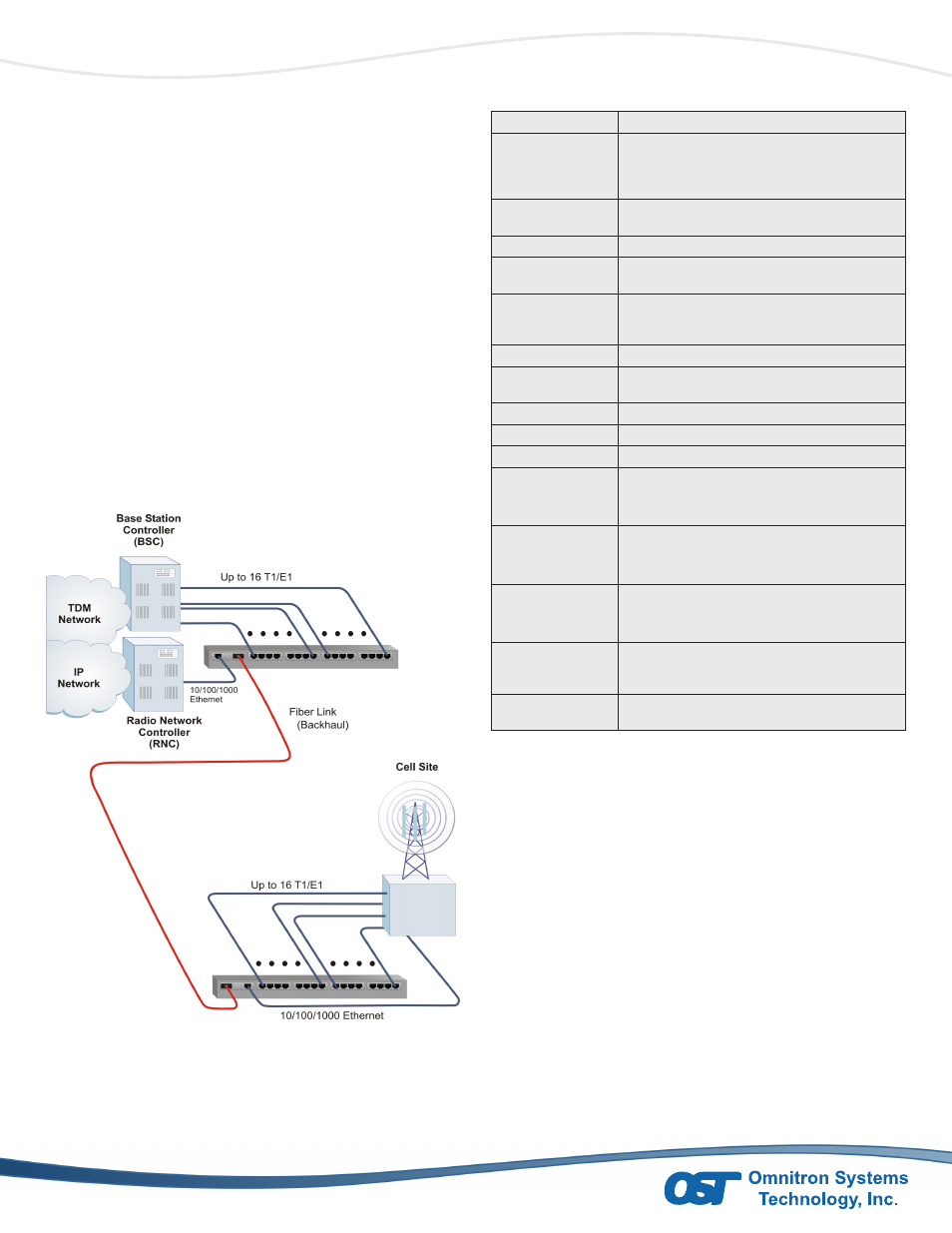

Telecom Application: Mobile Backhaul
The following application shows an example of the iConverter
T1/E1 MUX/M used in a hybrid TDM/Ethernet transport
network.
A wireless service provider has enhanced their network to
support 3G/4G services. The new equipment uses Ethernet for
backhaul at the Cell Site, while their existing legacy 2G/2.5G
equipment uses TDM (T1) for backhaul.
Using the
iConverter T1/E1 MUX/M at the Cell Site, the service
provider is able to multiplex up to 16 T1/E1 circuits and one
10/100/1000 Ethernet service on a common fiber link. The
fiber carries the multiplexed traffic to a second iConverter
T1/E1 MUX/M that is installed at the Base Station Controller
(BSC) and Radio Network Controller (RNC). The T1/E1 MUX/M
converts the legacy TDM traffic back to T1/E1 interfaces, where
it is connected to the TDM network. The MUX also converts
the Ethernet traffic back to a 10/100/1000 interface, where it
is connected to the provider’s IP network.
Page 2
speciFications
iConverter T1/E1 MUX/M
Model Type iConverter T1/E1 MUX/M
Protocols (TDM)
ANSI: T1.403, T1.102,
AT&T: T62411, ITU: G.703, G.704, G.706, G.736,
G.775, G.823, G.824, G.8261
ETSI: ETS 300 166
Protocols (Ether-
net)
10BASE-T, 100BASE-TX, 1000BASE-T
100BASE-FX, 1000BASE-X
Frame Size 10,240 byte frames
Copper Connectors Ethernet: RJ-45
T1/E1: RJ-48
Fiber Connectors
SFP Model: LC
Dual Fiber Model: SC, ST
Single-Fiber Model: SC
Dimensions W: 17.15” x D: 9.0” x H: 1.75”
Weight
1 Power Supply: 7.5 lb
2 Power Supplies: 9.0 lb
Compliance UL, CE, FCC Class A, NEBS 3 Compliant
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
AC Power
Input Power
Requirements:
Connector:
100 to 240VAC 50/60Hz
0.5A @ 120VAC
IEC320
24VDC Power
Input Power
Requirements:
Connector:
18 to 36VDC
1.4A @ 24VDC
3-pin terminal
48VDC Power
Input Power
Requirements:
Connector:
36 to 60VDC
0.7A @ 48VDC
3-pin terminal
Temperature
Standard:
Wide:
Storage:
0 to 50° C
-40 to 60° C
-40 to 80° C
MTBF (hrs)
16 Ports with Redundant
AC or DC Power Supplies: 83,000
